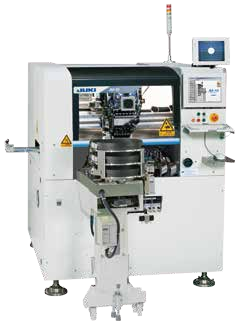

Feature:

1:Laser sensor for lead detection

The laser sensor is ideal for lead tip detection leading to improved insertion process

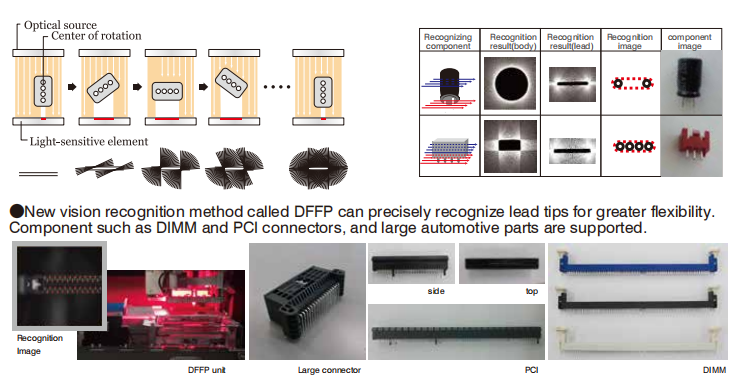

Components are rotated 360 degrees in the laser.The entire outline of the component is measured accuratelyby a high resolution CCD sensor. The exact component position and angle are obtained in a fraction of asecond without a side trip to a camera.After measuring the component body, the lead tips are measured toensure accurate insertion.

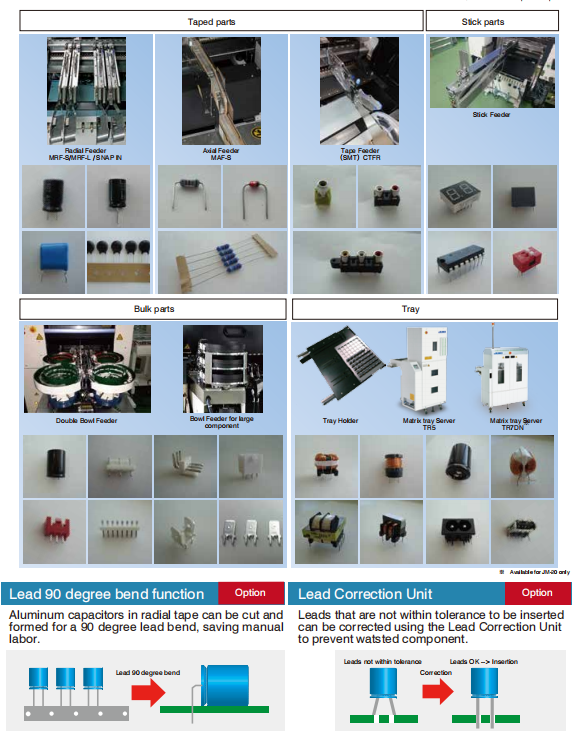

2:Wide variety of feeder types

Feeders for tape,stick,radial,axial,tray,and bulk components.A wide variety of custom feeders are also available

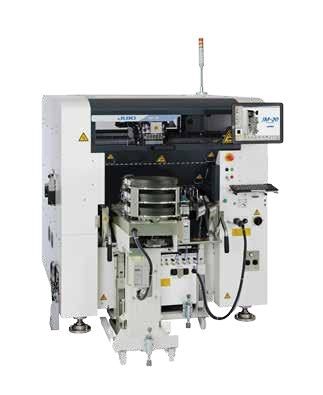

Specification:

Model Item			Multitask Platform JM-10		Multitask Platform JM-20
			M-size board	L-size board	L-sized board	XL-sized board
Board Size	Single Clamp		410×250mm	410×360mm	410×360mm	410×560mm
	Double Clamp				800×360mm	800×560mm
PCB Weight			Max.2kg		Max.4kg
Component Height	28mm		O		O
	55mm				O
Component Size	Laser recognition		0603~□33.5mm		0603~□50mm
	Vision recognition³ ※1	54mm view camera	□3mm~□33.5mm		□3mm~□50mm
		27mm view camera	1005~□24mm		1005~□24mm
Insertion Speed	Vacuum(JUKI Condition) ※2		0.8 sec/part※3		0.8 sec/part ※3※4
Placement Speed (SMT)	Chip(Optimal)		17,500 CPH*3		15,500 CPH*※3※4
	IC		4,100 CPH*3		4,200 CPH ※3※4
Placement Accuracy (SMT)	Laser recognition		±0.05mm(3σ)		±0.05mm(±3σ)
	Vision recognition ※1		±0.04mm		±0.04mm
Power supply			200 to 415VAC 3-phase		200 to 415VAC 3-phase
Apparent power			1.8KVA		2.0KVA
Circuit breaker			O		O
Operation air pressure			0.5±0.05 Mpa		0.5±0.05 MPa
Air consumption			50L/min		50L/min
Vacuum pump			O		O
950mm conveyor height ※1			O		O
Machine dimension (W×D×H)※5			1,455×1,295×1,460mm		1,500×1,657×1,550mm	1,500×1,892×1,550mm
Mass (Approximately)			1,000kg		1,760kg	1,985kg

※1Optional specification.
※2Under JUKI condition
cmpoentsoe m ectobiocepocto em), Supy bowos: AFS×2 To pona amumonou pikx3mecyca 6nozad)Ai spe Dotutvahefrcmponen tye etioncmpmn 1NSstectobscecapacitor (JM20 only)".
※3 Exchudes time for PWB conweyance and markrecognition.
※4Forcomponent height 28mm.
※5Dimensions of machine descnbed are for comeyor height 900mm.

Option:

	Mu liask Platform JM-10		Mu litask Platform JM-20
	M-size board	L-size board	L-sized board XL-sized board
Check nozzle base ※1	-		●
C-ATC(ATC for Chuck nozzle)	-		●
Rear side operation unit	-		●
Conveyor extension 250mm	-		●
Conveyor guide 100mm	●		-
Main line filter	●		●
Conveyor height 950mm	●		●
Placement Force Control	-		●
Vision centering System(54mm view camera)	●		●
Vision centering System(27 mm view camera)	●		●
SMT feeder version bank(Selectable Front and/or Rear)	-		●
SMT connector bracket	-		●
MI Line Optimizer ※2	●		●
Lead correction Jig ※3	●		●
DFFP camera	●		●
Production management information output function	●		●

※1 For using chuck nozzle,separate custom parts will be required.

※2 This option is available for line control optimization.

※3 Please contact us for detailed specifications

Feeder capacity:

※1 Customization possible.
※2 Please contact our sales person for tray specification detail.
※3 Max applicable number of same feeders(Front &Rear total).

※4 Applicable only on rear side.

※5 For M-size board only.

	Tape feeder in case of 8mm tape	Radial feeder		Axial Feeder		Stick Feeder	Bowl Feeder	※2※4 Tray
		MRF-S	MRF-L	MAF-S	MAF-L		MBF-L	Tray Holder (full)	MTS (TR5)	MTS (TR7DN)
JM-10	60	20	14	16	12	12	2	1	※5 1	-
JM-20	80	26	20	22	16	16	2	2	1	1
