Feature:

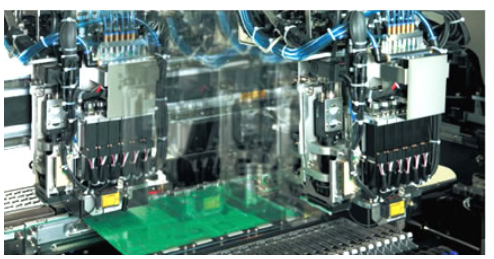

Juki provides a high-tech pcb pin insertion machine, which is Juki’s most advanced pin inserter JM 100 which supports both radial insertion and axial insertion machine technology.
Specifications of JUKI JM-100 Insertion machine for DIP Takumi head

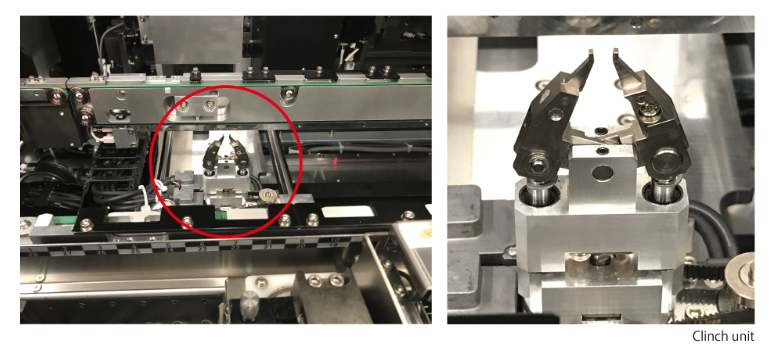

Active clinching
Juki JM-100 PCB insertion machine has a new active clinch unit supports bend in, bend out, and N bend to prevent components from lifting during reflow and make handling before reflow easier.

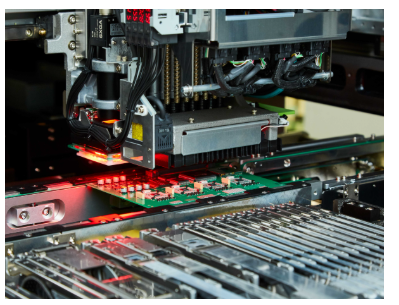

laser centering
A high-resolution laser is mounted on the head to center components in all directions, including angles. Centering is done on the fly, allowing high-speed placement of components from small chips to SOPs.
Adaptable centering
Centering accommodates component variations
Laser centering measures the components on the side. It is not affected by variations of component color or width/length so, unlike vision centering, there is no need to edit component data for different component vendors.

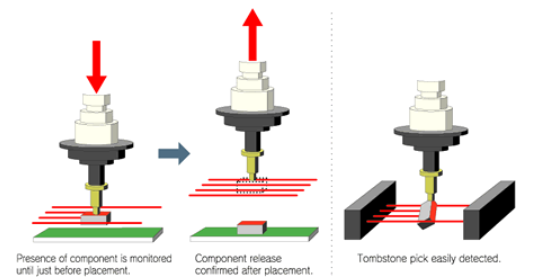

The component check function improves placement reliability
Since the laser is mounted on the head, it can be used to monitor the presence of components the entire time from pick to placement. This is difficult to accomplish with vacuum detection only. The placement reliability is also improved because the release of the component is confirmed after placement.
|
Standard specification (Lsize PWB) |
Clinch specification (Lsize PWB) |
|||
|---|---|---|---|---|
| With using Clinch unit | Without using Clinch unit | |||
| Board Size | 1 time clamping | 50㎜×50㎜~410㎜×360㎜ | 80㎜×100㎜~410㎜×360㎜ | 80㎜×50㎜~410㎜×360㎜ |
| 2 times clamping | 50㎜×50㎜~800㎜×360㎜ | 80㎜×100㎜~800㎜×360㎜ | 80㎜×100㎜~800㎜×360㎜ | |
| PCB Weight | max.4kg | |||
| Component Height | max.30㎜ | |||
| Component Size | Laser recognition | 0603～□50mm | ||
| Vision recognition | □3mm～□50mm | |||
|
Insertion Speed （Insertion components） |
Vacuum | 0.6 sec/part*1*3*4 | ||
| grip | 0.8 sec/part*2*3*4 | |||
|
Placement Accuracy (SMT） |
Laser recognition | ±0.05mm（3σ） | ||
| Vision recognition | ±0.04mm | |||
