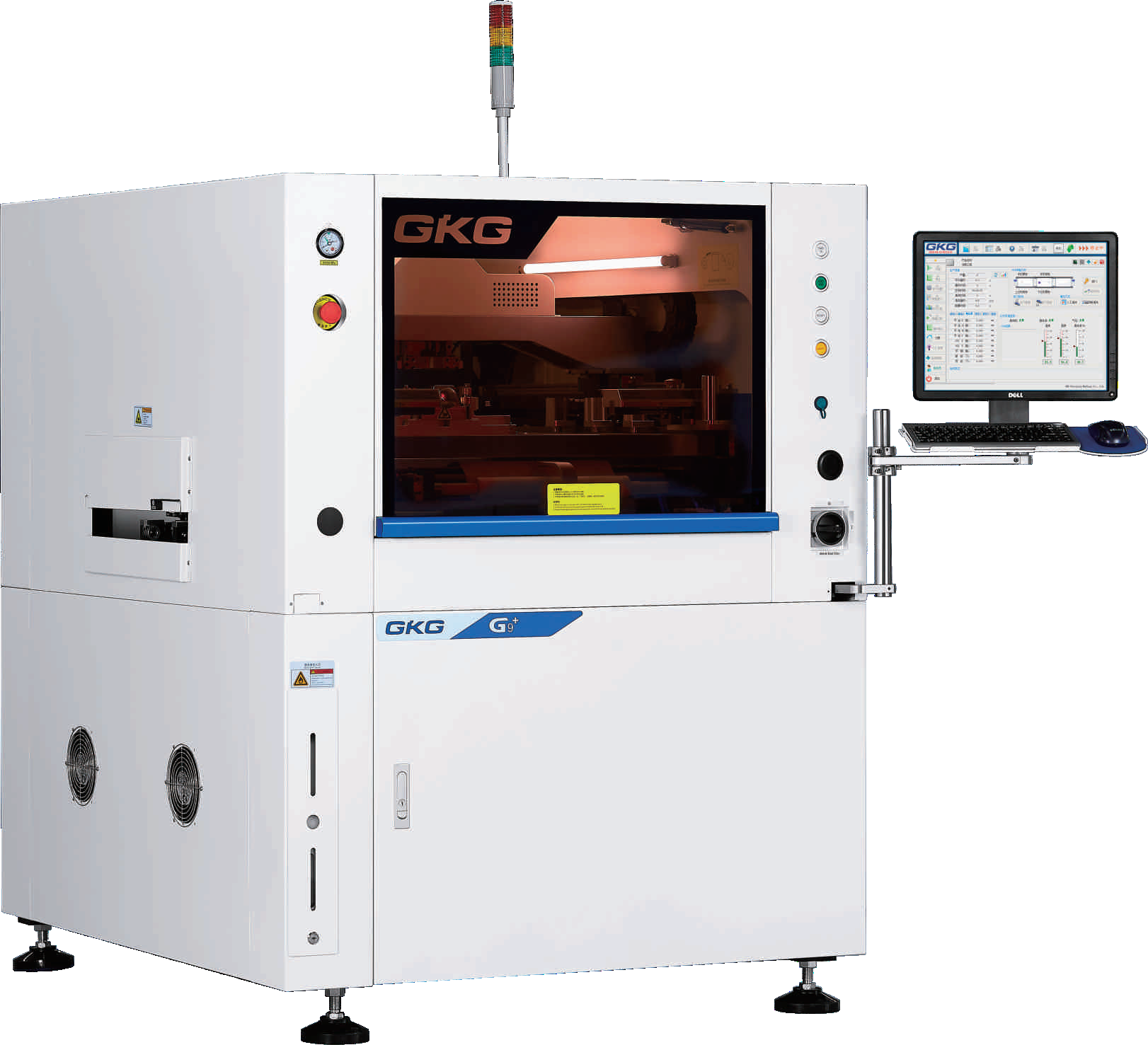

China SMT Manufacturer High Precision GKG Fully Automatic Solder Paste Printer

1. GKG G9+ automatic solder paste printing machine stencil detection function:
By performing light source compensation above the stencil, the CCD is used to check the mesh holes of the stencil in real time, so as to quickly detect and judge whether the stencil is blocked after cleaning, and perform automatic cleaning, which is a 2D detection method for PCB boards. Replenish.
2. GKG G9+ automatic solder paste printing machine automatic dispensing system:
According to different printing process requirements, after printing, accurate dispensing, tin dispensing, line drawing, filling and other functional operations can be performed on the PCB board; at the same time, the dispensing head is also equipped with a heating function, which can be used in low ambient temperature When the glue is heated, the fluidity of the glue is improved.
3. GKG G9+ automatic solder paste printing machine bottle type automatic tin filling and solder paste detection function:
Automatically add solder paste at fixed times to ensure the quality of solder paste and the amount of solder paste in the stencil. In order to ensure the printing quality of customers and improve productivity. Through the sensor, the amount of solder paste on the stencil can be managed, and the quality can be stabilized.

Specification:

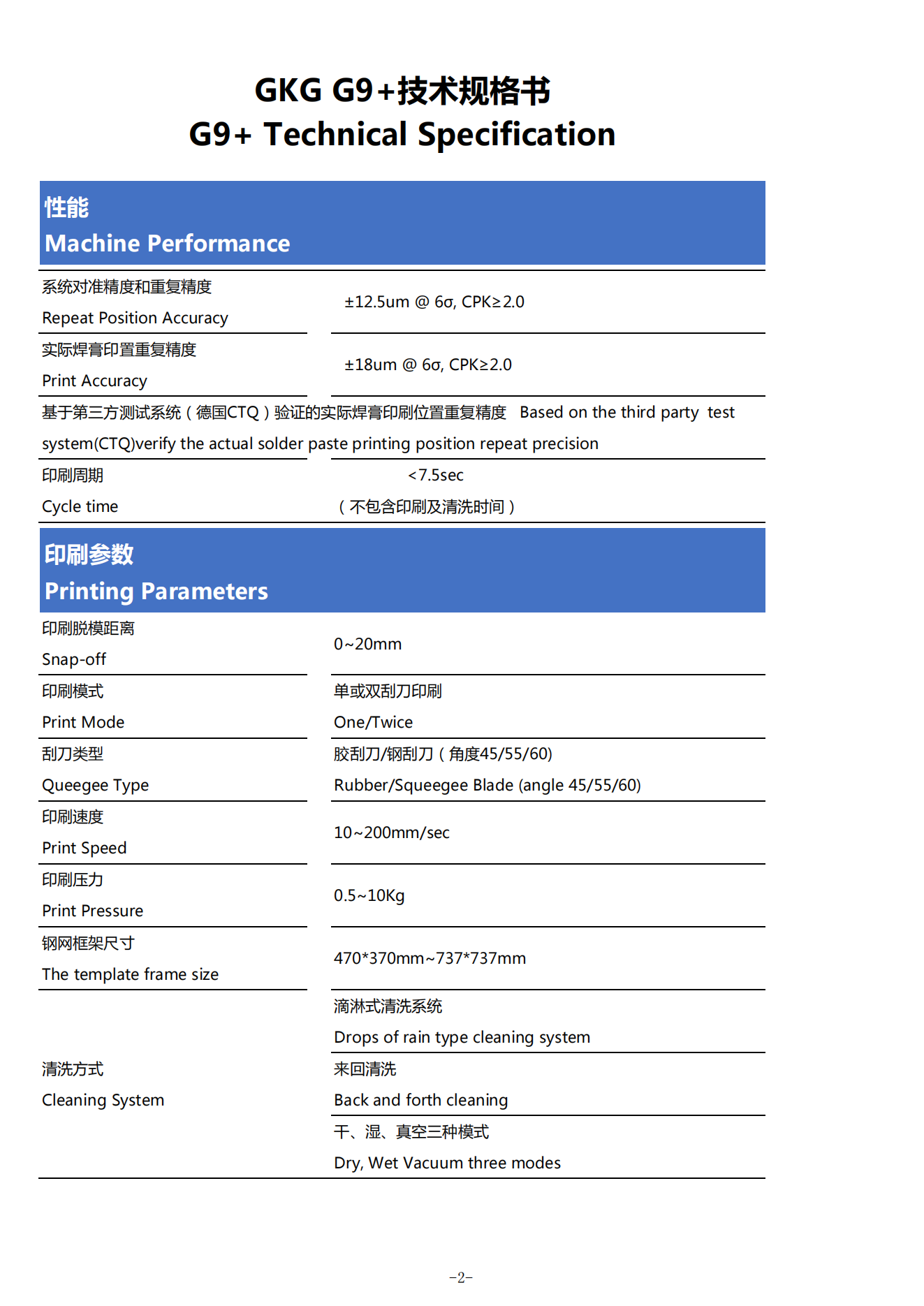

Machine performance
Repeat position accuracy	±10um@6 σ , CPK≥2.0
Print accuracy	±18um@6 σ , CPK≥2.0
NCP-CT	7s
HCP-CT	18s/pcs
Process CT	4min
Change line CT	2min

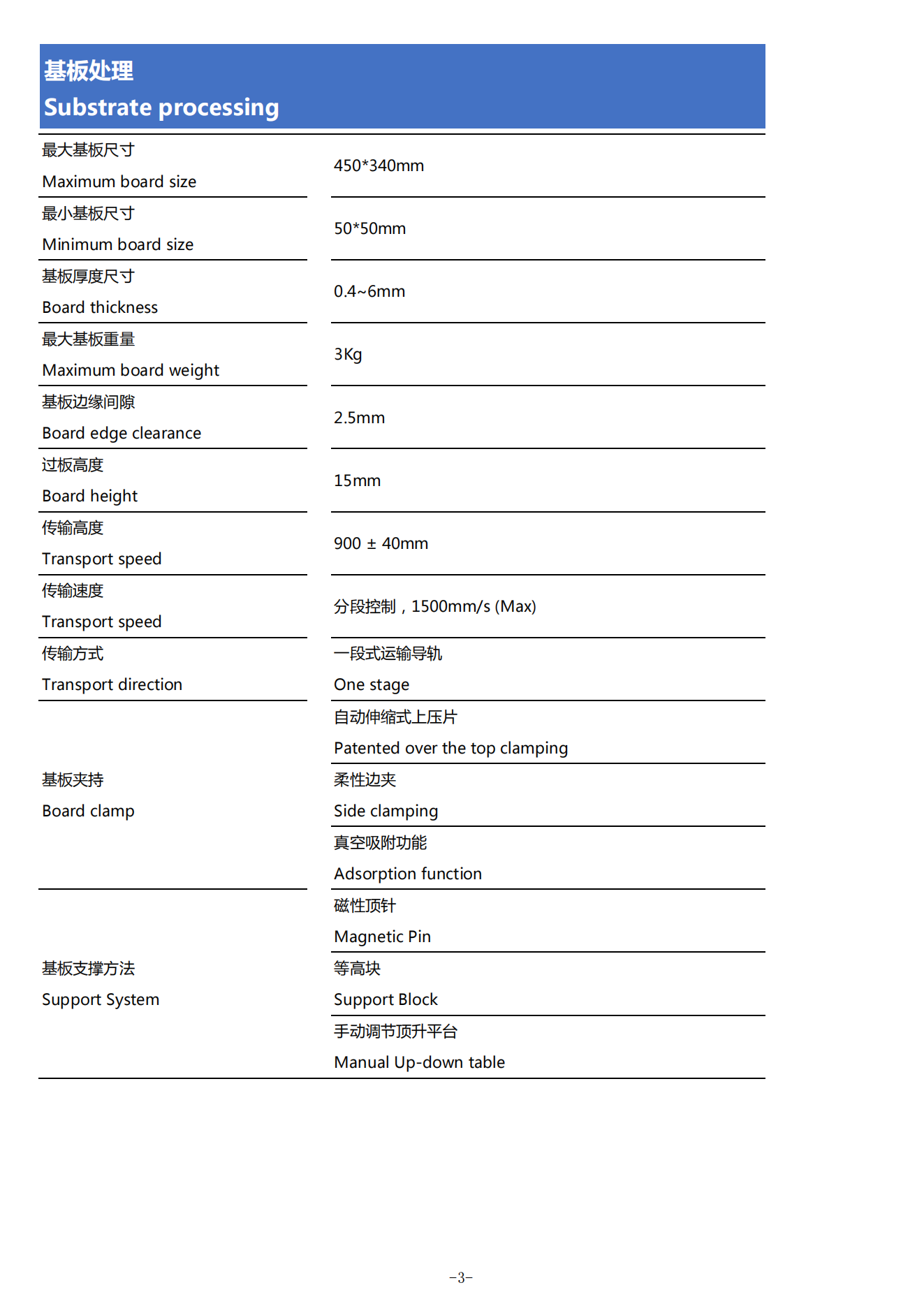

Substrate processing parameter
Max board size	450*340mm
Min board size	50*50mm
Board thickness	0.4~6mm
Camera mechanical range	450*340mm
Max board weight	3kg
Board adge clearance	2.5mm
Board height	15mm
Transport speed	900±40mm
(Max) Transport speed	1500mm/s max
Transport direction	One stage
Transmission direction	Left to right
	Right to left
	In and out the same
Support system	Magnetic pn
	Support block
	Manual up-down table
Board damp	Automatic top clamping
	Side clamping
	Adsorption function
Printing parameters
Print speed	10-200mm/s
Printing pressure	0.5~10kg
Print mode	One/twice
Queegee type	Rubber, squeegee blade (angle 45/55/60)
Snap- off	0-20mm
Sanp speed	0-20mm/s
The template frame size	470*370mm-737*737mm (thickness 20-40mm)
Positioning mode of steel mesh	Automatic Y-direction positioning
Cleaning parameteres
Cleaning system	Dry, wet, vaccum, three modes
High speed cleaning	Integrated & weave cleaning
Cleaning system	Side spray type
Cleaning stroke	Automatic generation
Cleaning position	Pre cleaning
Cleaning speed	10-200mm/s
Cleaning fluid consumption	Auto/Manually adjustable
Cleaning pater consumption	Auto/Manually adjustable

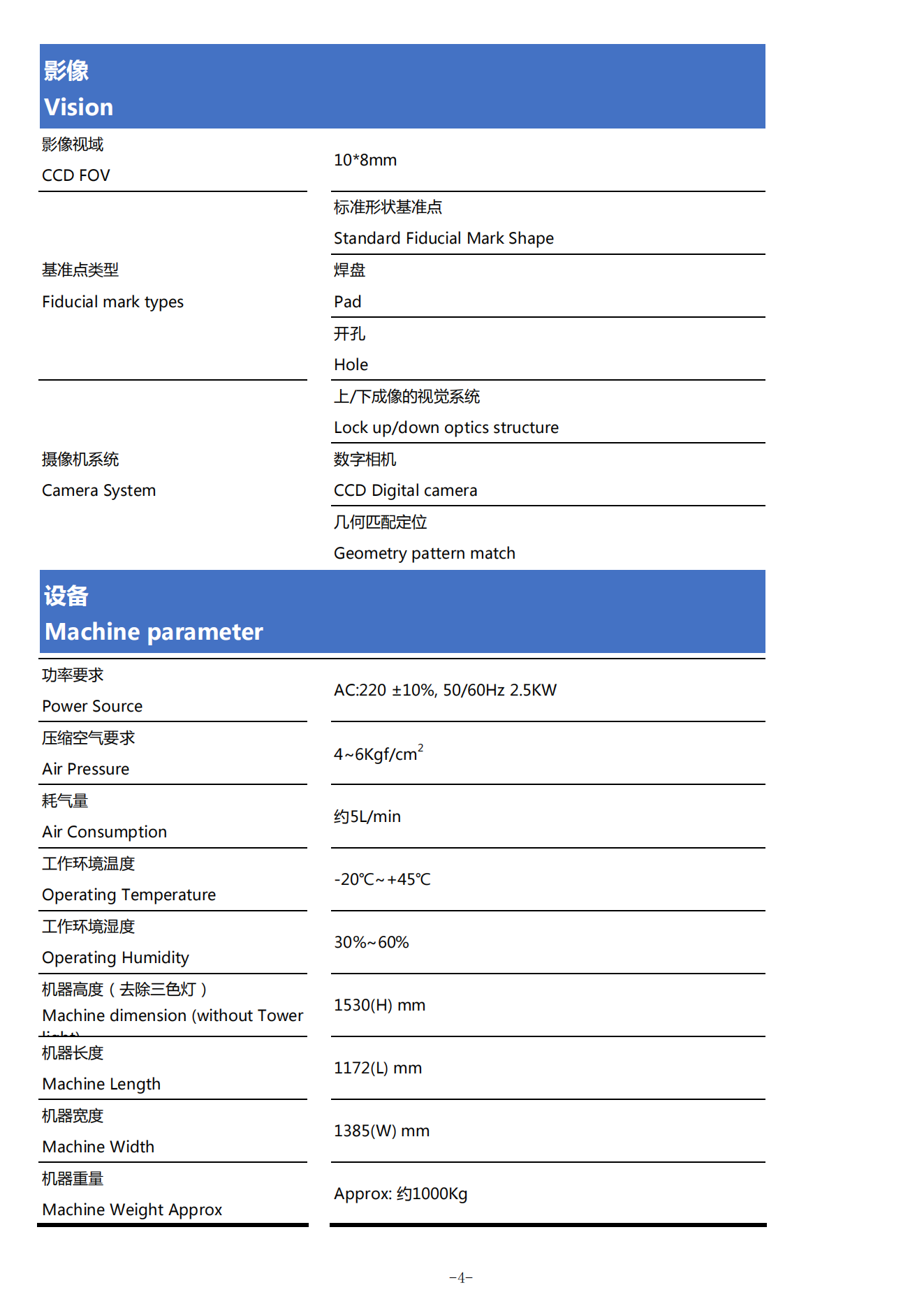

Vision parameters
CCD FOV	10*8mm
Camera type	130 thousand CCD digital camera
Camera system	Lock up/down optic structure
Camera cycle time	100ms
Fiducial mark types	Standard fiducial mark shape
	Round, square, diamond, cross
	Pad and profile
Mark size	0.1-6mm
Mark number	Max. 4pcs
Stay away number	Max. 1pc
Machine parameter
Power source	AC 220 ±10%, 50/60Hz 2.2KW
Air pressure	4~6kgf/cm²
Air consumption	~5L/min
Operating temperature	-20°C~+45°C
Working invironment humidity	30%-60%
Machine dimension (without flower light)	1172(L)*1385(W)*1530(H)mm
Machine weight	Appr 1000kg
Equipment load bearing requirements	650kg/m²
