Specification:

■ Speed : 92,000 CPH (Optimum, HS10 Head)

■ Structure : 2 Gantry x 10 Spindles/Head

■ Accuracy : ±28μm Cpk≥1.0 (03015 Chip)

±25μm Cpk≥1.0 (IC)

■ Parts Size : 03015 ~ 12mm, H10mm

■ PCB Size : 50 x 40 ~ 510 x 460mm (Standard)

~ 740 x 460mm (Option)

~ 1,200 x 460mm (Option)

HIGH PRODUCTIVITY:

Optimizing PCB transportation paths for productivity improvement

Modular Conveyors

■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.

■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed

Twin Servo Control

■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head

■ Minimized head movement path through recognizing parts during transportation following parts installation

■ 10-spindle head with individually operating Z axes

HIGH RELIABILITY

Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC)

■ Applied with a high-precision linear scale and rigid mechanism

■ Provides precision calibration algorithms and diverse automatic calibration functions

FLEXIBLE LINE SOLUTION

Provides optimal line solutions through versatility and productivity improvement

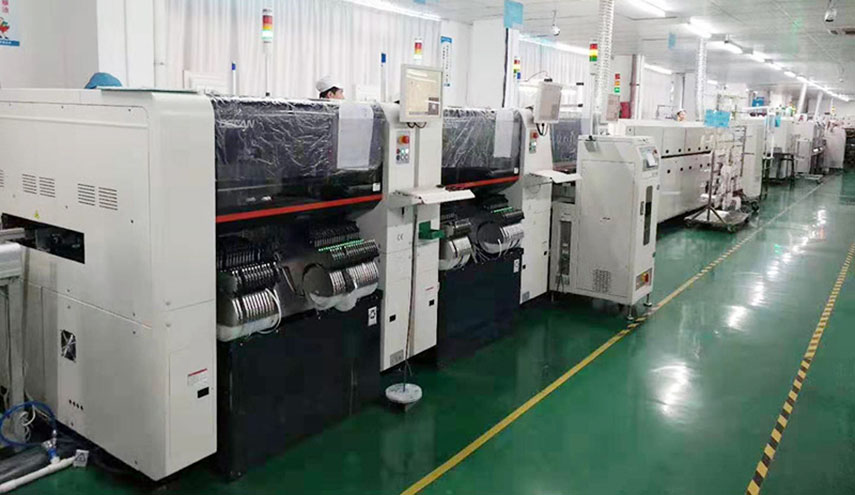

DECAN Line

■ Optimal line configuration from chips to uniquely-shaped components according to options setup

Equipment capable of responding to large-scale PCBs, which can be remodeled on site

■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling

– Responsive to a maximum 1,200 x 460mm PCB

Responsive to uniquely-shaped components (including tray components)

EASY OPERATION

Strengthened equipment software operation convenience

■ Convenient production and editing of work programs with built-in equipment optimization software

■ Provision of a range of work data and information on a large-scale LCD screen

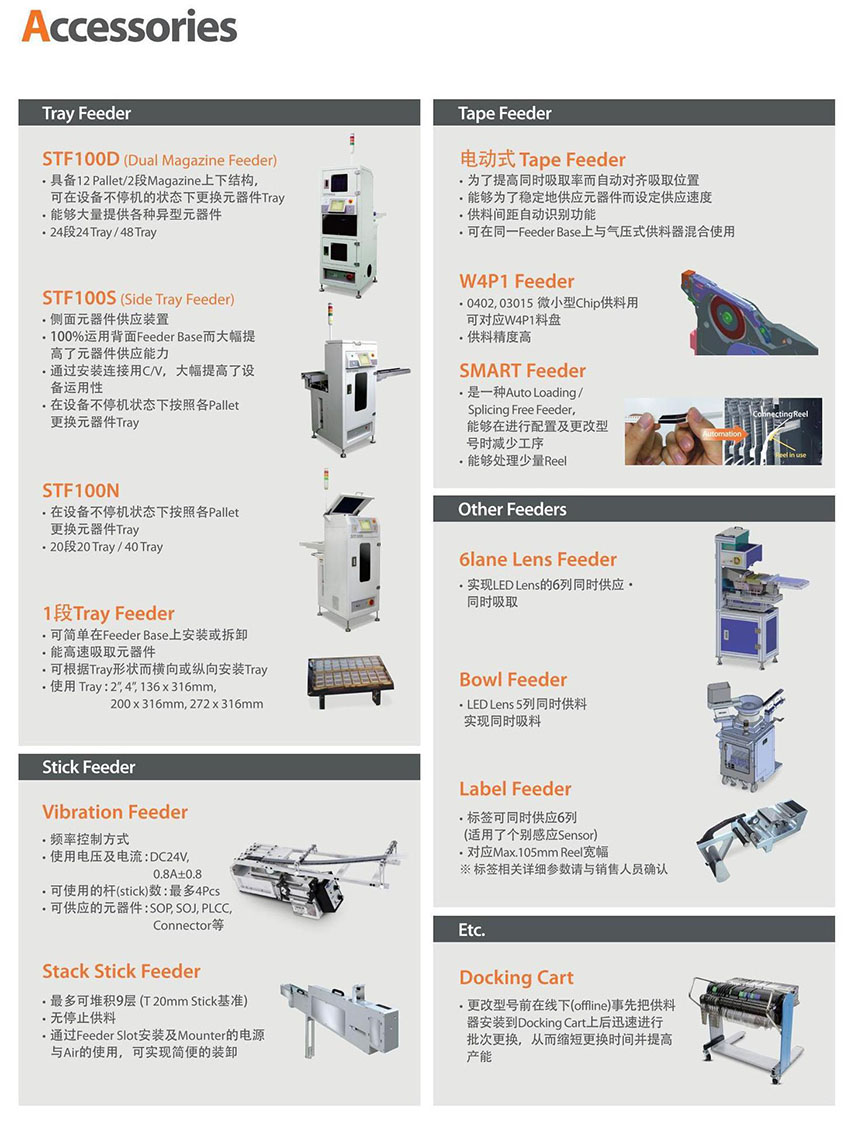

High-precision, convenient electric feeder

■ Calibration and maintenance-free electric feeder

■ Improved work convenience with a single reel bank mounted feeder

■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

■ Automatic loading and splicing capabilities implemented as an industry first

– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

■ Zero consumables costs for parts connection attained
