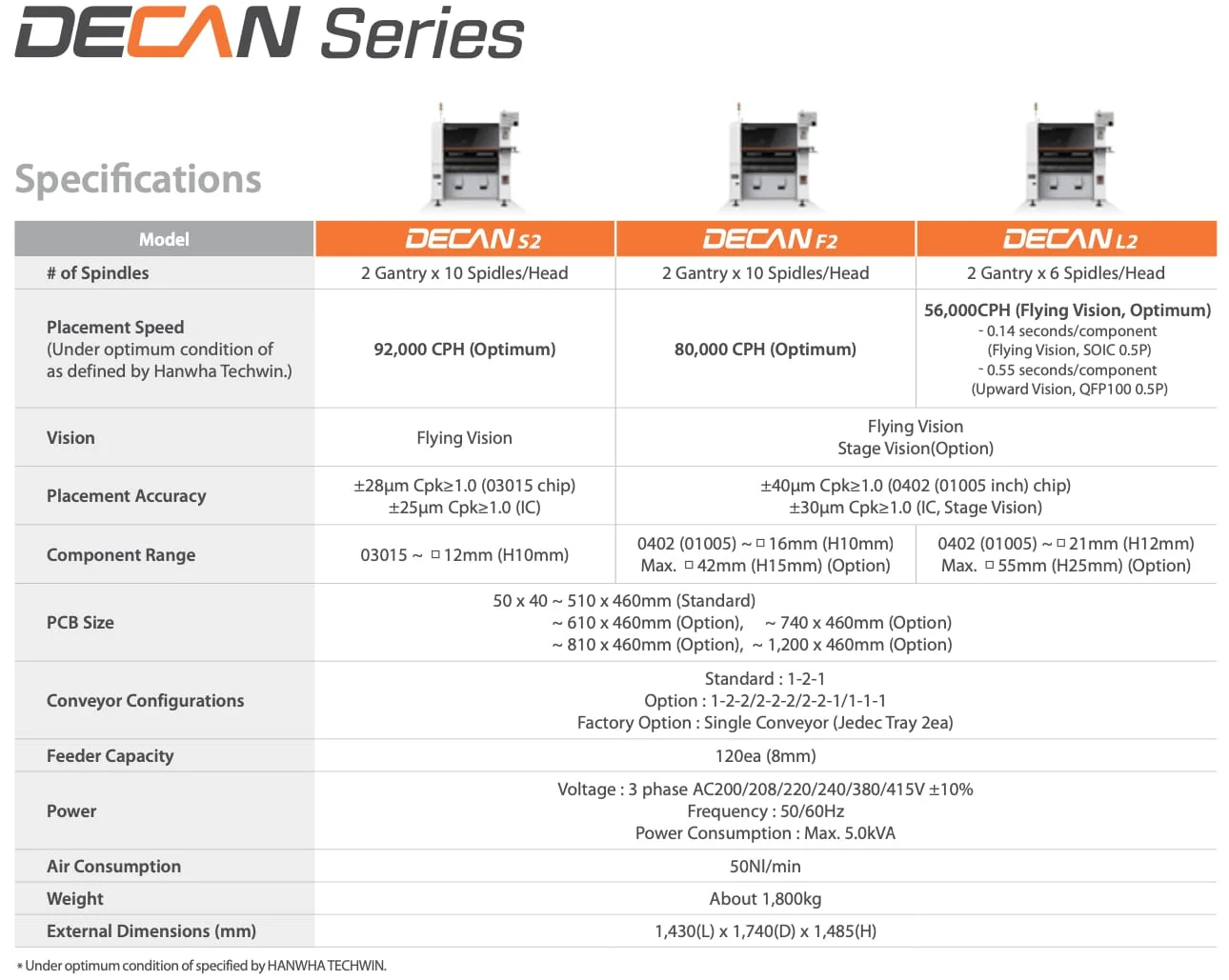

Component available: 0402 ~ 21mm, H12mm ~ 55mm, H25mm
Description: Hanwha Decan F2 PCB Chip mounter, PCB Size : 50 x 40 ~ 510 x 460mm (Standard) ~ 740 x 460mm (Option) ~ 1,200 x 460mm (Option)
Brand: Hanwha
Speed : 56,000 CPH (Optimum) 0.55 sec/component (QFP100 0.5P)
Structure: 2 Gantry x 6 Spindles/Head
Accuracy: ±40μm Cpk≥1.0 (0402 chip) ±30μm Cpk≥1.0 (IC, Stage vision)
Parts Size: 0402 ~ 21mm, H12mm ~ 55mm, H25mm
PCB Size: 50 x 40 ~ 510 x 460mm (Standard) ~ 740 x 460mm (Option) ~ 1,200 x 460mm (Option)
HIGH PRODUCTIVITY:
Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.
■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed
Twin Servo Control
■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
■ Minimized head movement path through recognizing parts during transportation following parts installation
■ 6-spindle head with individually operating Z axes
HIGH RELIABILITY
Placement Accuracy: ±40㎛ (0402mm 01005inch)
■ Applied with a high-precision linear scale and rigid mechanism
■ Provides precision calibration algorithms and diverse automatic calibration functions
FLEXIBLE LINE SOLUTION
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)
■ Responsive to a maximum 52mm(H25mm) IC when the stage vision option is applied
■ LED & LED lens placement with LED flipped & lens protrusions cognition
EASY OPERATION
Strengthened equipment software operation convenience
■ Convenient production and editing of work programs with built-in equipment optimization software
■ Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
■ Calibration and maintenance-free electric feeder
■ Improved work convenience with a single reel bank mounted feeder
■ Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
■ Automatic loading and splicing capabilities implemented as an industry first
– Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
■ Zero consumables costs for parts connection attained
