2:EIM is an economical model developed for small batches and multiple varieties.When replacing products,because manyincoming materials can not be determined,we use EIM series models to easily to handle common parts,easy to operate,lowinvestment,and high returns.
Feature:
1:fline Programming
Plug-in programming software can be installed on any computer outside for programming.
2:Data Sharing
The program data of the machine and the production data(PCB size,component data,coordinates,etc.)can be shared toother device calls.
3:Inteligent Calibration of Precision
The equipment can improve the accuracy through a variety of precision algorithms and intligent corection of eror ofproduction data analysis equipment.
4:CPK>1.33
Through the standard CPK program,the aocuracy proof process,the CPK test result is above 1.33.
Muliple Algorithm For ldentification Of Odd Form Components
The results of orrective analysis through multiple recognition components.
5:Increase insertion rate by 5%
6:Reduction of production losses by 5%

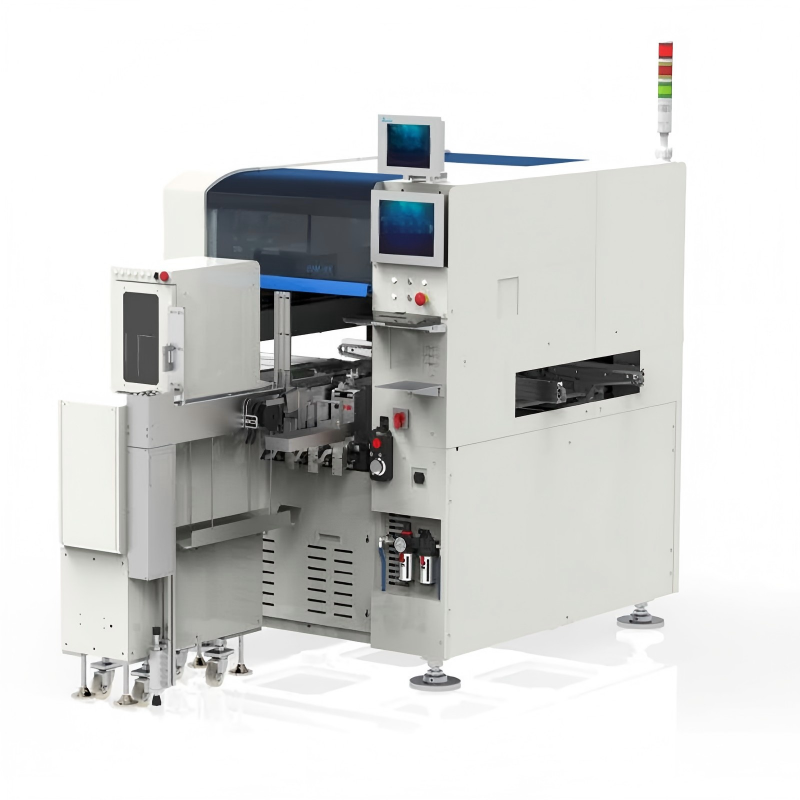

Image:
Specification:
| 规格Specification | 产品型号Model | |||
| OIM-3 | OIM-2FS | EIM-2 | ||
| 贴插轴数 | No.of Insertion Heads | 6 | 4 | 2 |
| 基板尺寸 | PCB Size(LxW) | 50x50mm to 300x350mm | 50x50mm to 500x550mm | 50x50mm to 300x550mm |
| 载具尺寸 | Carrier Size (LxW) | 300x350mm | 500x550mm | 450x550mm |
| PCB厚度 | PCB thickness | 0.6~2.0mm | ||
| PCB最大重量 | Max.PCB Weight | 2Kg | 5Kg | 2Kg |
| 最大元件高度 | Max.Component height | 20mm | 30mm | 25mm |
| 最大元件宽度 | Max.Component Width | 28mm | 50mm | |
| 贴插速度*1 | Speed /每颗零件Component | 0.6S-3.0s | 0.7S~3.0 s | 1S～3.0s |
| 贴插精度 | Placement Accuracy | 3σ,±0.050mm | ||
|
影像系统
Vision System
|
Mark CCD(Top) | 1 | ||
| Component CCD(Bottom) | 3 | 4 | 2 | |
| 顶板机构 | Supporting Mechanism | 伺服顶板Servo | ||
| 轨道 | Conveyor Type | 皮带Belt | 链条Chain | 皮带Belt |
| 轨道PCB固定 | Conveyor PCB Mounting | 夹板式Edge Clamping | ||
| 轨道分段 | Conveyor Section | 3 | 1 | |
| 轨道调宽 | Conveyor Adjusting | Auto | ||
| 基板通过高度(上/下) | Conveyor Space(Upper/Lower) | 30mm/20mm | 25mm/20mm | |
| 轨道高度*2 | Conveyor Height | 900±20mm | 750±20mm | |
|
最大站位数
Max.Stations*3
|
编带飞达Tape Feeder(SMT) | 12 | 6 | 4 |
| 编带飞达Tape Feeder(Al) | ||||
| 管装飞达Tube Feeder | ||||
| 散料飞达Bowl Feeder | 8 | 4 | ||
| 盘料飞达Tray Feeder | 1 | |||
| 操作系统 | Operation System | Windows | ||
| 显示器(主控边) | Monitor Display (Operation Side) | 2 | 2 | |
| 开门数量 | No.Of Door | 2(双边Double Side) | 1(单边Single Side) | |
| 机器尺寸 | Size(LxWxH) | 1300x1550x1560mm | 850x1550x1560mm | |
| 机器重量 | Weight | 1730 Kg | 1650 Kg | 800 Kg |
| 自动换咀模组*4 | Auto Nozzle Changer Unit | 选配Option | ||
| 插件弯脚模组*5 | Lead Clinching Unit | 选配Option | ||
| 编程功能 | Programming | 相机示教Vision Teaching System | ||
| 电源 | AC Power | 380V 20A 50/60HZ | 220V 20A 50/60HZ | |
| 功率 | Apparent power | 4.5KVA | 3.5KVA | |
| 气压 | Air Supply | 6.0~8 Kg/m² | ||
| 进板方向 | PCB Direction | 左至右L to R(右至左Rto L) | ||
| 贴插方向 | Insertion Direction | 0-360度Degree | ||
| 适用零件 | Applicable Component |
各种连接器、开关按钮、变压器、端□插座、电容、电阻等元器件
Connector,Switch,Socket Transformer Coils,Ports,Capacitors,Resistors,Etc
|
||
| 联机信号接口 | SMEMA | 标配Standard Configuration | ||
| M E S 对 接 * 6 | MES Connection | |||
| 门板安全光栅 | Safety Grating(Door) | |||
