Feature:

※No fixtures or fixtures are required.
※ No need for dedicated personnel to be on duty,and there is no need for manual supervision afteradjusting the program for product replacement.
※ The products can be placed freely in the same direction,with automatic visual positioning and trackingfor dispensing.
※ Strong scalability,dispensing.
※ Capable of drawing points,lines,and arcs.
※ Utilize the customer's existing belt pull
※ It can seamlessly connect with the assembly belt without changing the production line structure andfacilities.

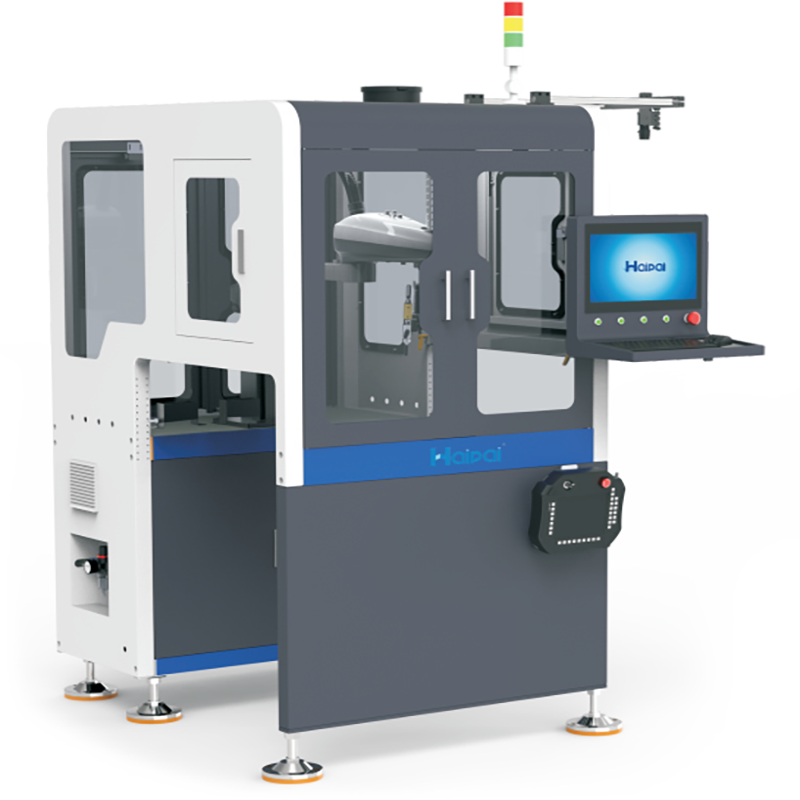

Image:

Specification:

型号	MODEL	HPX5
机架外型尺寸	Frame dimensions	L1500mm*W1550mm*H1850mm
Z轴最大负载	Z-axis maximum load	最大6KG
XY/Z轴重复精度	X/Y/Z axis repetition accuracy	±0.5-1mm
轴数	Number of axles	5轴/独立控制5-axis/independent control
CCD视觉相机	CCD visual camera	1套1 set
CCD视觉范围	CCD visual range	L300*W300mm
传输方式	Transmission mode	平皮带Flat belt
驱动方式	Driving method	伺服马达Servo motor
控制方式	Control mode	工控机+显示器Industrial computer+display
供胶方式	Glue supply method	配1套2600ml气动供胶系统Equipped with 1 set of 2600ml pneumatic glue supply system
工作环境温度	Working environment temperature	10°C~+25°C
输入电源	Input power supply	AC220V±10V 50--60HZ
总功率	Total power	1500W
工作范围	Scope of Work	X/Y/Z/300*300*100mm
整机重量	Overallweight	450KG
最大速度	Maximum speed	2.4m/min(平皮带速度：40mm/s)2.4m/min(flat belt speed:40mm/s)
点胶频率	Glue dispensing frequency	0.9次/秒(1.1次/s)0.9 times/second(1.1 times/s)
点胶阀	Valve	配机械手追随点胶，配一把回吸式点胶阀 Equipped with a robotic arm to follow the dispensing process and a suction back dispensing valve
灵活性	Flexibility	5轴独立控制/针头独立旋转侧倾5-axis independent control/needle independent rotation roll
