Feature:

※No fixtures or fixtures are required.
※No need for dedicated personnel to be on duty,and there is no need for manual※supervsion after adjusting the program for product replacement.
※ The products can be placed freely in the same direction,with automatic visualpositioning and tracking for dispensing.
※Strong scalability,dispensing.
※Capable of drawing points,straight lines,continuous lines,arcs,and circles.
※Utilize the customer's existing beltpull.
※ It can seamlessly connect with the assembly belt without changing the production linestructure and facilities.

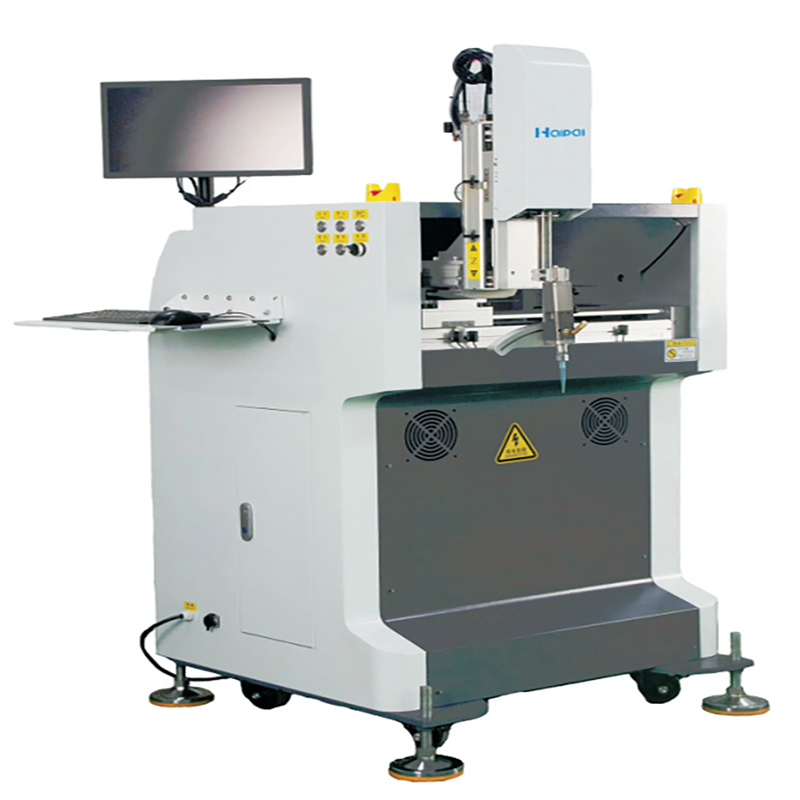

Image:

Specification:

型号	MODEL	HPX3
机架外型尺寸	Frame dimensions	L790mm*W620mm*H1040mm
Z轴最大负载	Z-axis maximum load	最大10KG Max 10KG
X/Y/Z轴重复精度	X/Y/Z axis repetition accuracy	±0.2mm
轴数	Number of axles	4轴/独立控制4-axis/independent control
CCD视觉相机	CCD visual camera	1套1 set
传输方式	Transmission mode	精密丝杆+精密滑轨Precision screw rod+precision slide rail
驱动方式	Driving method	伺服马达Servo motor
控制方式	Control mode	工控机+显示器Industrial computer+display
工作环境温度	Working environment temperature	-20°C~+25°C
输入电源	Input power supply	AC220V 50-60HZ
总功率	Total power	1500W
工作范围	Scope of Work	X/YIZ/400*400*100mm
整机重量	Overall weight	450KG
最大速度	Maximum speed	1m/s
胶桶容量	Rubber bucket capacity	原包装2600ml Original packaging 2600ml
点胶频率	Glue dispensing frequency	1-3次/秒1-3times/second
点胶阀	Valve	1把回吸阀1 suction valve
灵活性	Flexibility	4轴独立控制/针头独立旋转侧倾4-axis independent control/needle independent rotation rol
