Feature:

1:Adopting computer control,Windows operating system,fault sound and light alarm,and menu display.
2:Adopting visual programming,the operation is simple and fast.
3:X.Y,Z three axis movement,optional with rotary shaft(screw valveinjection valvedoes not need to rotate).
4:Adopting high-performance servo motor and ball screw drive.
5:The operating accuracy reaches±0.02mm and can automatically correct errors.Integrated steel motion plane for smoother operation and programming.Automatic track width adjustment.
6:Equipped with high-speed injection valves (200p/s)or screw valves(5p/s).Automaic cleaning device for rubber valve and vacuum automatic cleaning forspray valve.

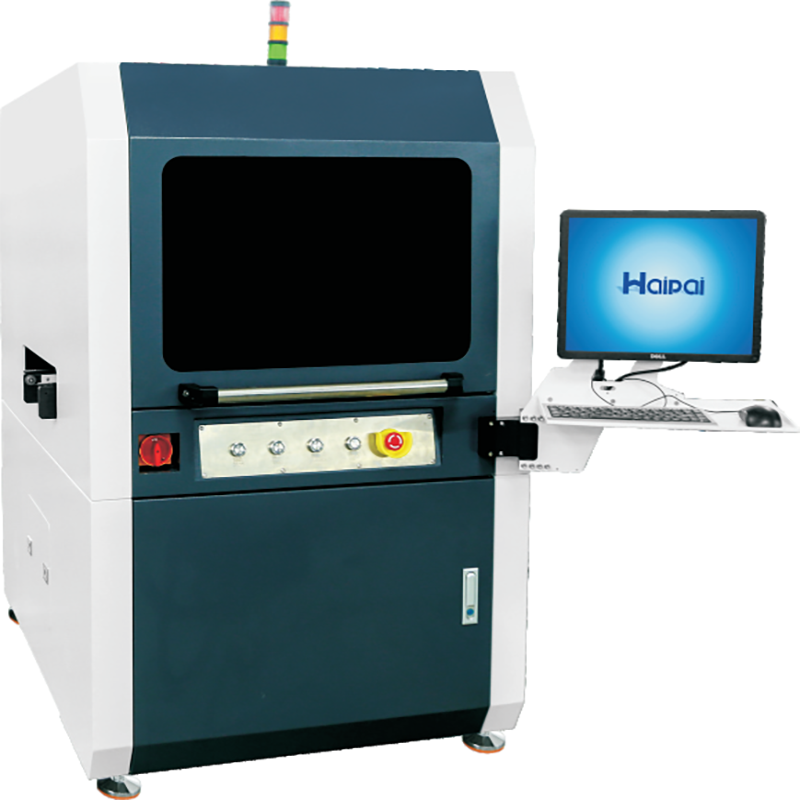

Image:

Specification:

型号	MODEL	HPD30
外型尺寸	Dimensions	L920mm*W1350mm*H1480mm
重量	Weight	1200kg
控制	Control	工控机+运动控制卡Industrial computer+motion control card
组件最大高度	Maximum component height	50mm
编程方式	Programmatic	在线视觉编程Online Visual Programming
CCD视觉定位	CCD visual positioning	自动校准运行精度Automatic calibration operation accuracy
X、Y、Z轴驱动	X,Y,Zaxis drive	伺服电机+精密丝杆驱动Servo motor+precision screw drive
最大移动速度	Maximum movement speed	1200mm/s
重复精度	Repeatability	±0.01mm
涂覆行程	Coating stroke	X=350mm Y=400mm Z=50mm
胶阀数量	Number of valves	1把压电喷射阀(喷嘴撞针可定制)1 piezoelectric injection valve(nozzle striker can be customized)
涂料容量	Paint capacity	30CC/50CC
输入气压报警	Enter the air pressure alarm	菜单+声光报警Menu+sound and light alarm
电源	power supply	220V 50～60HZ
气压	Atmospheric pressure	6.2kgf/cm²
总功率	Total power	3KW
通讯接口	Communication interface	SMEMA
步进马达输送	Stepper motor conveying	2-5m/min
自动调幅	Automatic amplitude adjustment	单轨道：50～400mm Single track:50-400mm
备注	Remark	标配CCD视觉相机Standard CCD visual camera
