SMT Line Automatic Stacket Unwinding Machine
At the finish end ofa SMT line,the bare PCBs will erecovered piece by piece into the stack.
PRODUCT DETAIL
Feature:
a)Suitable for heavier,thicker PCBs and the ones with
insertholes
b)Thickness andwidth adjustable according to
ifferent sizes of PCBs
c)Highefficiency and shortcycle
d)Pass through function
e)Non-vacuum pad design

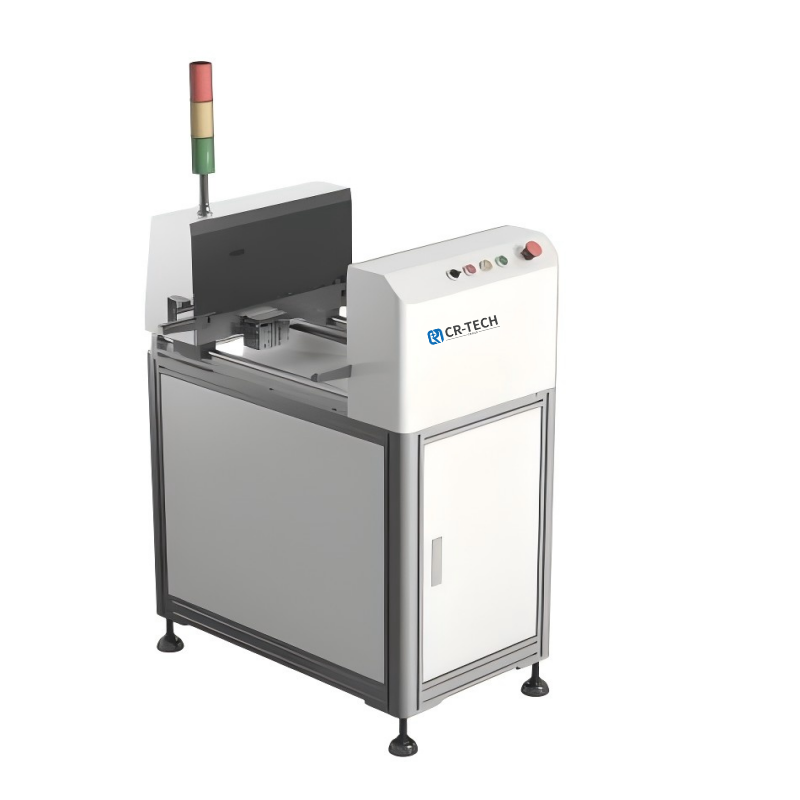

Image:
Specification:
| Model | 型号 | CR-500-UNW |
| Overall Dimension | 机台尺寸 | (L)650*(W)850*(H)1160mm |
| Track width | 传送宽度 | Min80-Max500mm |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max500*500mm |
| Conveyor Height | 传输高度 | 920±30mm |
| Board thickness | PCB厚度 | 0.6-3mm |
| Weight of PCB | 贮板重量 | 20KG |
| Height of PCB | 贮板高度 | Max130mm |
| Cycle | 循环周期 | 8S |
| Power supply | 电源 | AC22050/60HZ |
| Air supply | 气源 | 0.4-0.6MPa |
| Power Consumption | 功率 | 0.2KW |
