Feature:

a)Suitable for heavier,thicker PCBs and the ones with insert
holes
b)Thickness and width adjustable according to different
sizes of PCBs
c)High efficiency and short cycle
d)Pas through function
e)Uninterrupted supply of PCBs on the unit while running
f)Non-vaouum pad design

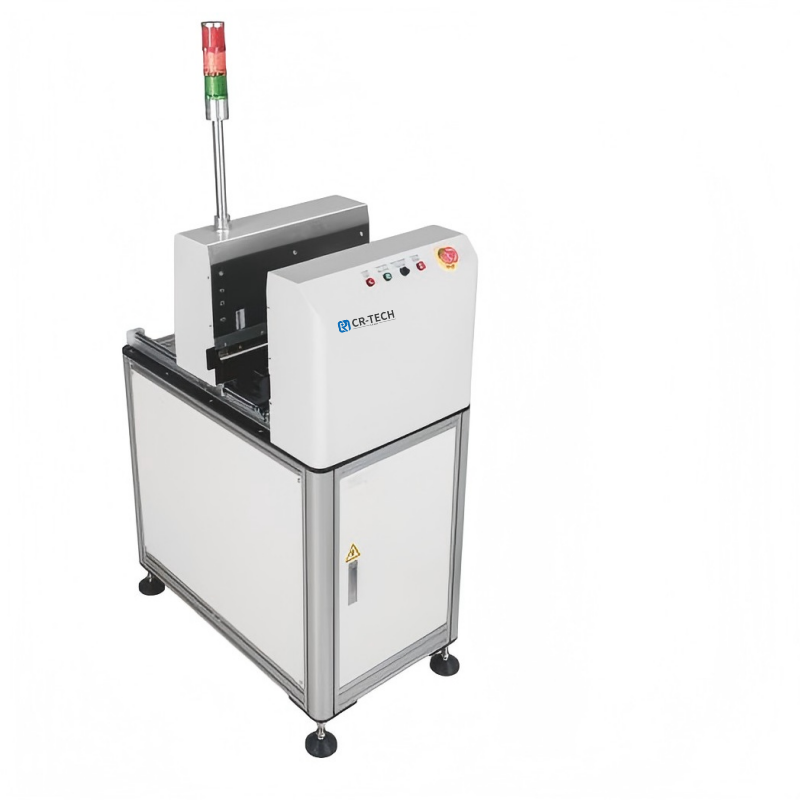

Image:

Specification:

Model	型号	CR-500-B
Overall Dimension	机台尺寸	(L)650*(W)835*(H)1160mm
Track width	传送宽度	Min50-Max500mm
PCB Size	PCB尺寸	Min80*50-Max500*500
Conveyor Height	传输高度	920±30mm
Board thickness	PCB厚度	0.6-3mm
Weight of PCB	贮板重量	20KG
Height of PCB	贮板高度	Max200mm
Cycle	循环周期	6S
Power supply	电源	AC22050/60HZ
Air supply	气源	0.4-0.6MPa
Power Consumption	功率	0.2KW
