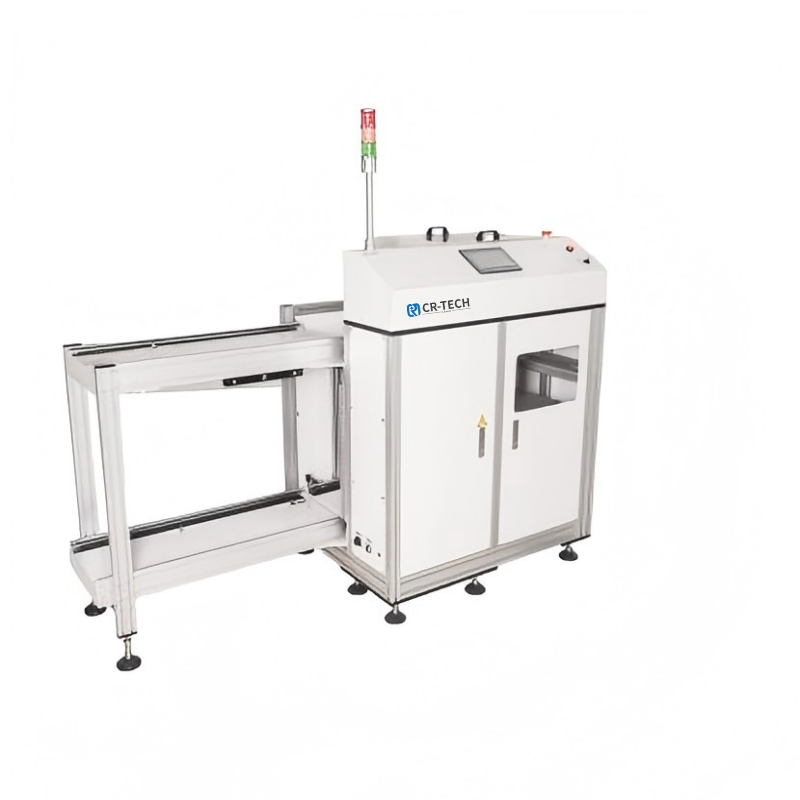

SMT Line Automatic Vacuum Magzine Loader Machine
1.The PCB is used in the front end of the SMT productionline,which corresponds to the requirements of the board ofthe rearequipment,and then sends the one that is storedinthe Magazine to the production line one by one.After theMagazine is empty,the empty Magazine is automaticallyoutput,and is replaced by a ful Magazine.
2.Automatic feeding for bare plate
2.Automatic feeding for bare plate
PRODUCT DETAIL
Feature:
a)PLC Control system
b)3magazine can be placed
c)Multiple acoustic and optical alams
d)Suitable for BARE PCBs
e)Flexible Vacuum Pad
Image:
Specification:
| Model | 型号 | CR-320-VL | CR-400-VL | CR-460-VL |
| OverallDimension | 机台尺寸 | (L)1765*(W)850*(H)1300mm | (L)2100*(W)1020*(H)1300mm | (L)2200*(W)1110*(H)1300mm |
| Control System | 控制方式 | PLC | PLC | PLC |
| PCB Size(L*W) | PCB尺寸(L*W | )Min80*50-Max330*250mm | Min80*50-Max430*330 mm | Min80*50-Max500*390mm |
| PCB Conveyor direction | 传输方向 | 左至右(流向指定) | 左至右(流向指定) | 左至右(流向指定) |
| Conveyor height | 传输高度 | 920±30mm | 920±30mm | 920±30mm |
| Pitch Selection | 步距选择 | 10mm,20mm,30mm,40mm,50mm | 10mm,20mm,30mm,40mm,50mm | 10mm,20mm,30mm,40mm,50mm |
| Size of magazine | 料架规格 | (L)350*(W)320*(H)570 | (L)460*(W)400*(H)570 | (L)535*(W)460*(H)570 |
| Number of magazine | 料架数量 | 3 | 3 | 3 |
| power supply | 电源 | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Air source | 气源 | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Weight | 机台重量 | about 235KG | about280KG | about 320KG |
| Power comsumption | 功率 | 1.2KW | 1.2KW | 1.2KW |
| Loader cycle time | Loader循环周 | 期6s | 6s | 6s |
| Magazine Change time | 换箱时间 | 22s | 22s | 22s |
| Suction plate cycle time | 吸板循环时间 | 12S | 12S | 15S |
| Loader Carrying weight | Loader承载重 | 量50KG | 50KG | 50KG |
| Suction plate weight | 吸板承载重量 | 30KG | 30KG | 30KG |
| Storage bin form | 储存料箱形式 | 上一下一 | 上一下一 | 上一下一 |
