Feature:

a)Smooth and reliable no flutter
b)long service lifec
c)Adjustable revert directions(left to right,right to leff)
d)Pass through function

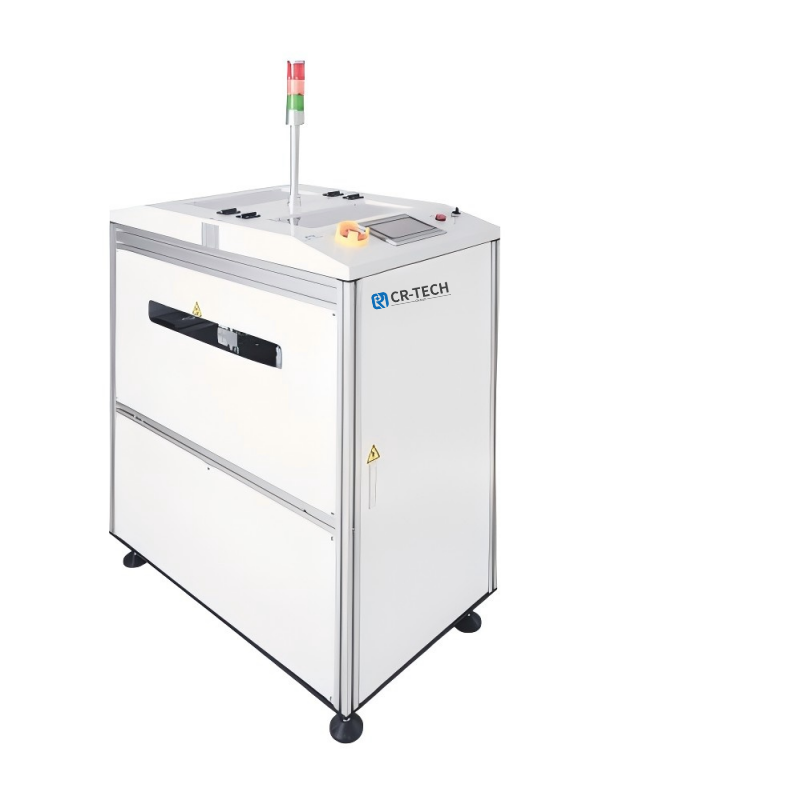

Image:

Specification:

Model	型号	CR-460-IN	CR-600-IN
Overall Dimension	机台尺寸	(L)600*(W)1070*(H)1300mm	(L)600*(W)1495*(H)1300mm
Track width	传送宽度	Min50-Max500	Min50-Max300
PCB Size(L*W)	PCB尺寸(L*W)	Min80*50-Max500*500mm	Min80*50-Max500*300mm
Conveyor Height	传输高度	920±30mm	920±30mm
Length of Track	轨道长度	L586mm	L586mm
Cycle	循环周期	15S	15S
Power supply	电源	220V 50HZ	220V 50HZ
Air supply	气源	0.4-0.6MPa	0.4-0.6MPa
Power Consumption	功率	0.4KW	0.4KW
Guide Mode	导轨模式	单轨	双轨：1、4定轨686mm,2、3轨最小间距86mm
Flip Drive	翻转驱动	气缸/电机	气缸/电机
