SMT line Automatic PCB Cleaner Machine
Used in SMT production line to remove foreign matter such aselectrostatic dust on product surface(used in front of printingmachine/behind radium carving machine).
PRODUCT DETAIL
Feature:
a)PLC Control System
b)With electrostatic elimination system
c)Cots sticky dust function
d)Dust cover for extemal isolation

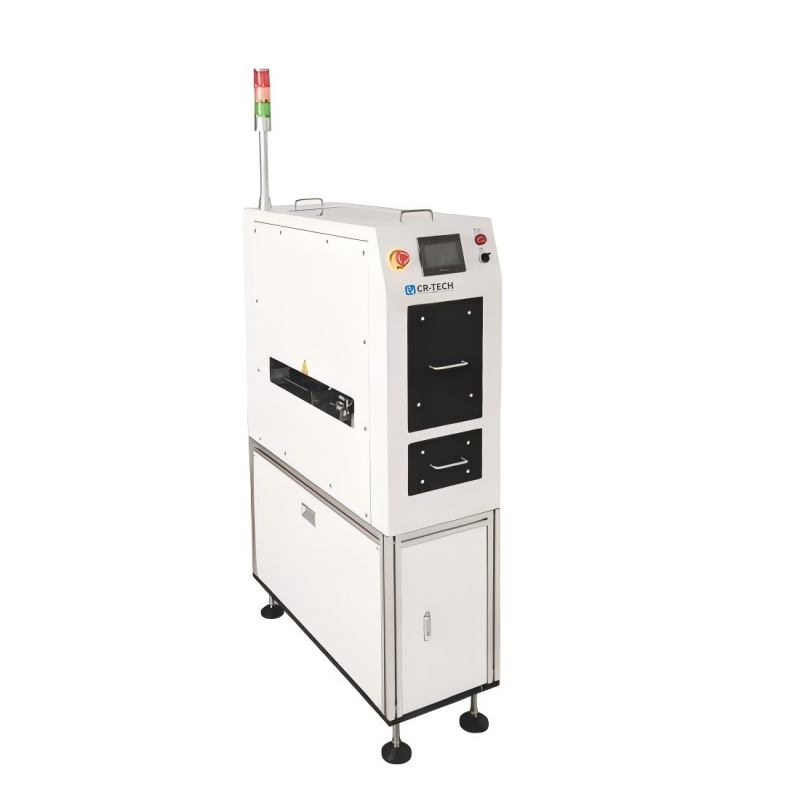

Image:
Specification:
| Model | 型号 | CR-250-C | CR-500-C |
| Overall Dimension | 外形尺寸 | (L)300*(W)650*(H)1300mm | (L)400*(W)900*(H)1500mm |
| Control System | 控制方式 | PLC | PLC |
| PCB Conveyor Direction | PCB传输方向 | 左至右 | 左至右 |
| Track width | 传送宽度 | Min50-Max250mm | Min50-Max460mm |
| Conveyor speed | 传送速度 | 0.2~4M/min可调 | 0.2~4M/min可调 |
| Rubber roller | 胶辊 | 进口/国产 | 进口/国产 |
| Power supply | 电源 | 220V 50HZ | 220V 50HZ |
| Track Height | 轨道传送高度 | 920±30mm | 920±30mm |
| Power Consumption | 功率 | 0.2KW | 0.2KW |
| Weight | 重量 | about65KG | about95KG |
