Wholesalae LED Automatic Pick And Place Machine CR ZT6
PRODUCT DETAIL
Feature:
1:Panasonic servo drive.
2:Japan's original grinding lead screw has long life, small wear and strong stability.
3:Double motor electronic feeder.
4:With a vacuum pump, no external gas source is needed.
5:The 6 sets of mounting heads rotate independently, and the placement speed is not affected by angles.
6:6 sets of digital flight vision elements can be selected to calibrate the camera to reduce the error caused by feeding.
7:It is suitable for: daylight tube, soft lamp belt, flat lamp, outdoor lamp, ceiling lamp, bulb, terminal, power supply and so on.

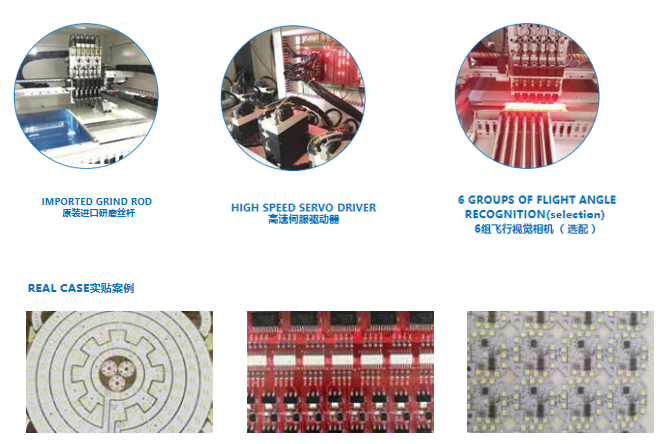

Image:
Specification:
|
Product name
产品名称
|
CR-ZT6(six head patch machine)
CR-ZT6(六头贴片机)
|
|
Conventional patch speed
常规贴片速度
|
32000-42000 chips/h
32000-42000 chips/h
|
|
Best patch speed
最佳贴片速度
|
48000 chips/h(group taking group)
48000 chips/h(群取群贴)
|
|
Maximum patch area
最大贴片面积
|
1500mm*420mm
1500mm*420mm
|
|
Feed quantity
喂料器数量
|
The 8mm-24mm standard feeder can be placed in 13(Extensible station)
可放置8mm-24mm标准喂料器13个(可扩展站位)
|
|
Machine weight
机器重量
|
900kg
900kg
|
|
supply voltage
电源电压
|
AC220V 50HZ(running power about 1.5KW/H)
AC220V 50HZ(运行功率约1.5KW/H)
|
|
Mechanical precision
机械精度
|
±0.01mm
±0.01mm
|
|
operating system
操作系统
|
WINDOWS XP/WINDOWS 7
WINDOWS XP/WINDOWS 7
|
|
Positioning mode
定位方式
|
Visual automatic MARK point(extensible flight vision correction camera)
视觉自动MARK点(可扩展飞行视觉校正相机)
|
|
Programming mode
编程方式
|
Visual camera positioning programming,Excel format file import components
视觉相机定位编程，Excel格式文件导入元件
|
|
Shape size
外形尺寸
|
Long 2000mm*wide 1100mm*high 1350mm
长2000mm*宽1100mm*高1350mm
|
|
Plaster device
可贴装元器件
|
More than 0603 lamp resistance capacitance chip terminals and so on
0603以上灯珠电阻电容芯片端子等等
|
