Wholesalae LED Automatic Pick And Place Machine CR ZT6VA
PRODUCT DETAIL
Feature:
1:Using double-drive and double-screw operation, high-speed operation and mounting is more stable and accurate.
2:The three-stage on-line automatic conveying PCB board has higher efficiency and lower labor cost.
3:Six groups of high-speed mounting heads rotate independently, and the mounting speed is not affected by the angle.
4:Equipped with 6 sets of CCD flying-shot visual correction cameras to reduce feeding errors.

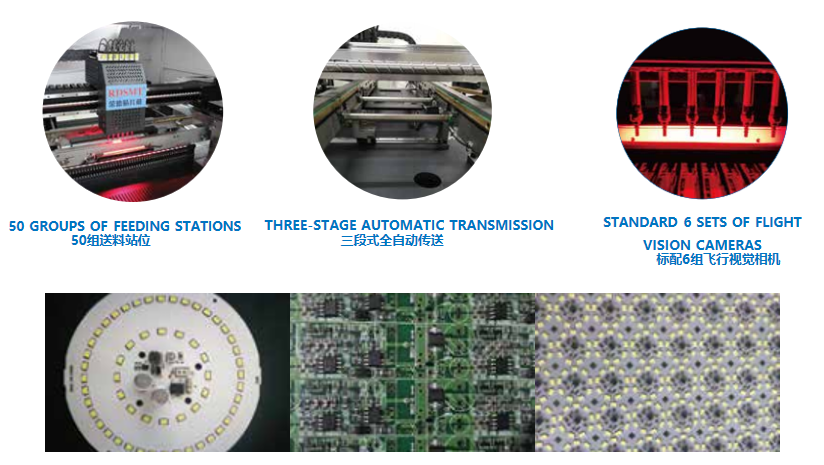

Image:
Specification:
|
Product name
产品名称
|
CR-ZT6VA Double drive CR-ZT6VAS CR-ZT6VA 双规 CR-ZT6VAS |
||
|
Conventional patch speed
常规贴片速度
|
15000-30000 chips/h 18000-33000chips/h
15000-30000 chips/h 18000-33000chips/h
|
||
|
Maximum patch area
最大贴片面积
|
1200mm*500mm 800mm*400mm
1200mm*500mm 800mm*400mm
|
||
|
Z-axis stickable stroke
Z轴可贴行程
|
±20mm ±20mm
±20mm ±20mm
|
||
|
Machine weight
机器重量
|
1600kg 1450kg
1600kg 1450kg
|
||
|
Shape size
外形尺寸
|
1850mm long*1560mm wide*1500mm high 1500mm long*1400mm wide*1500mm high
长1850mm*宽1560mm*高1500mm 长1500mm*宽1400mm*高1500mm
|
||
|
Best patch speed
最佳贴片速度
|
40000 chips/h(group taking group)
400000 chips/h(群取群贴)
|
||
|
supply voltage
电源电压
|
AC220V 50HZ(running power about 2KW/H)
AC220V 50HZ(运行功率约2 KW/H)
|
||
|
Mechanical precision
机械精度
|
±0.01mm
±0.01mm
|
||
|
operating system
操作系统
|
WINDOWS XP/WINDOWS 7
WINDOWS XP/WINDOWS 7
|
||
|
Feed quantity
喂料器数量
|
50 standard feeders can be placed
可放置标准喂料器50个
|
||
|
Transmission mode
传送方式
|
Three-stage track conveying
三段式轨道输送
|
||
|
Positioning mode
定位方式
|
Visual Auto-MARK Points(6 sets of CCD Flyshot Visual Correction Cameras)
视觉自动MARK点(6组CCD飞拍视觉校正相机)
|
||
|
Programming mode
编程方式
|
Visual Camera Location Programming,Excel Format File Import Component
视觉相机定位编程，Excel格式文件导入元件
|
||
|
Plaster device
可贴装元器件
|
More than 0603 bulb resistance capacitance IC terminal and other components
0603以上灯珠电阻电容IC端子等多种元件
|
||
