Interchangeable P20S/Takumi heads, 160 feeder slots max, adapts to variable production needs.
360° component recognition, coplanarity sensor, low-impact placement for high-quality mounting.
JaNets system integration, SPI feed-forward function, CE-compliant, seamless factory connectivity.
Feature
1.Ultra-high placement speed up to 105,000CPH for efficient production.
2.Supports components from 0201(metric) to 65mm²/10×90mm (height up to 25mm).
3.Interchangeable P20S/Takumi heads adapt to variable production needs.
4.Up to 160 feeder slots + 60 tray capacity for flexible material supply.
5.360° component recognition + HALCON image-processing for high precision (±35~40μm).
6.Low-impact placement protects flexible circuits and delicate components.
7.Seamless integration with JaNets/IFS-NX for production monitoring & traceability.
8.SPI feed-forward function reduces defects from printing misalignment.
Specification

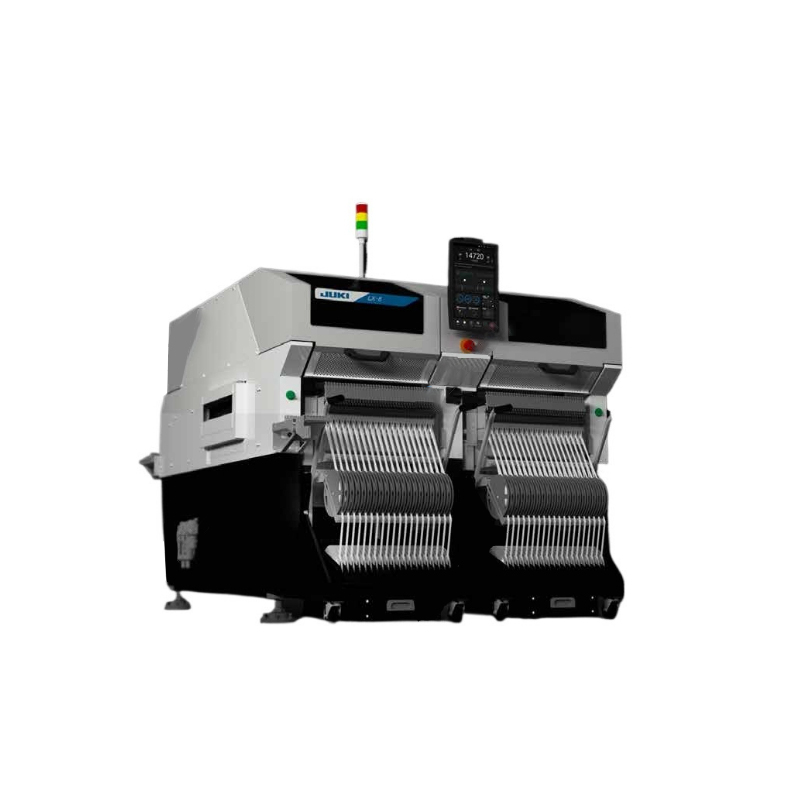

Advanced Flexible Mounter LX-8
P20S*1xP20S*¹
P20S*¹xTakumi
TakumixTakumi
Board size
Minimum
50x50 mm
Single clamping
410x400 mm
Double clamping*¹
810x400mm*²
Component height
3mm
25mm
Component size
Minimum
0201*¹
03015
Maximum
5mm
65mm/10mm/90mm/50mm/75mm
Placement speed (optimum)
105,000CPH
99,500CPH
94,000CPH
Feeder capacity
Tape
Max.136
Max.148
Max.160
Tray*⁵
——
Max.30
Max.60
Power
3-phase AC200V(standard) AC200V~AC415V (when optional transformer is selected)
Apparent power
2.49 kVA
Operating air pressure
0.5±0.05MPa
Air consumption (standard)
50L /min (ANR)
Machine dimensions (WxDxH)*⁶
1,600 mm x1,924 mm x1,440 mm
Mass (approximately)
2,400kg or less
