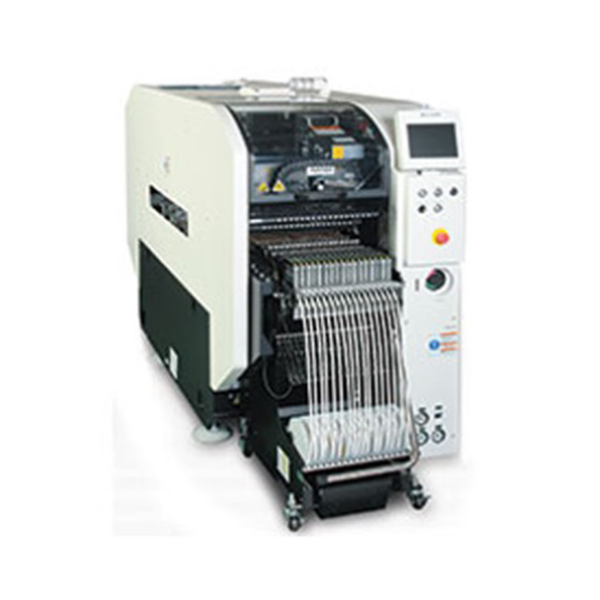

SMT Chip Mounter Panasonic NPM-D3A Pick And Place Machine
PRODUCT DETAIL
Feature
High productivity
The introduction of lightweight 16NH V3 allows the X- and Y-axes to be driven simultaneously during parts recognition, thus improving placement takt through optimal routing.
Multi-recognition camera
The three distinct recognition capabilities conventionally included in separate units have been
integrated into one device. Now the three different recognition operations, including the one to detect
the parts condition along their heights, can be simultaneously performed in a single scan, thus
delivering continued high productivity. The device can be upgraded from 2D specs to 3D specs.
Maintenance/Preservation
Cloud-based contractual service. It makes malfunction analysis based on machine info uploaded by subscriber to our cloud to find any feeder or nozzle that requires condition check, and then sends a maintenance check suggestion list containing the analysis result to the subscriber.

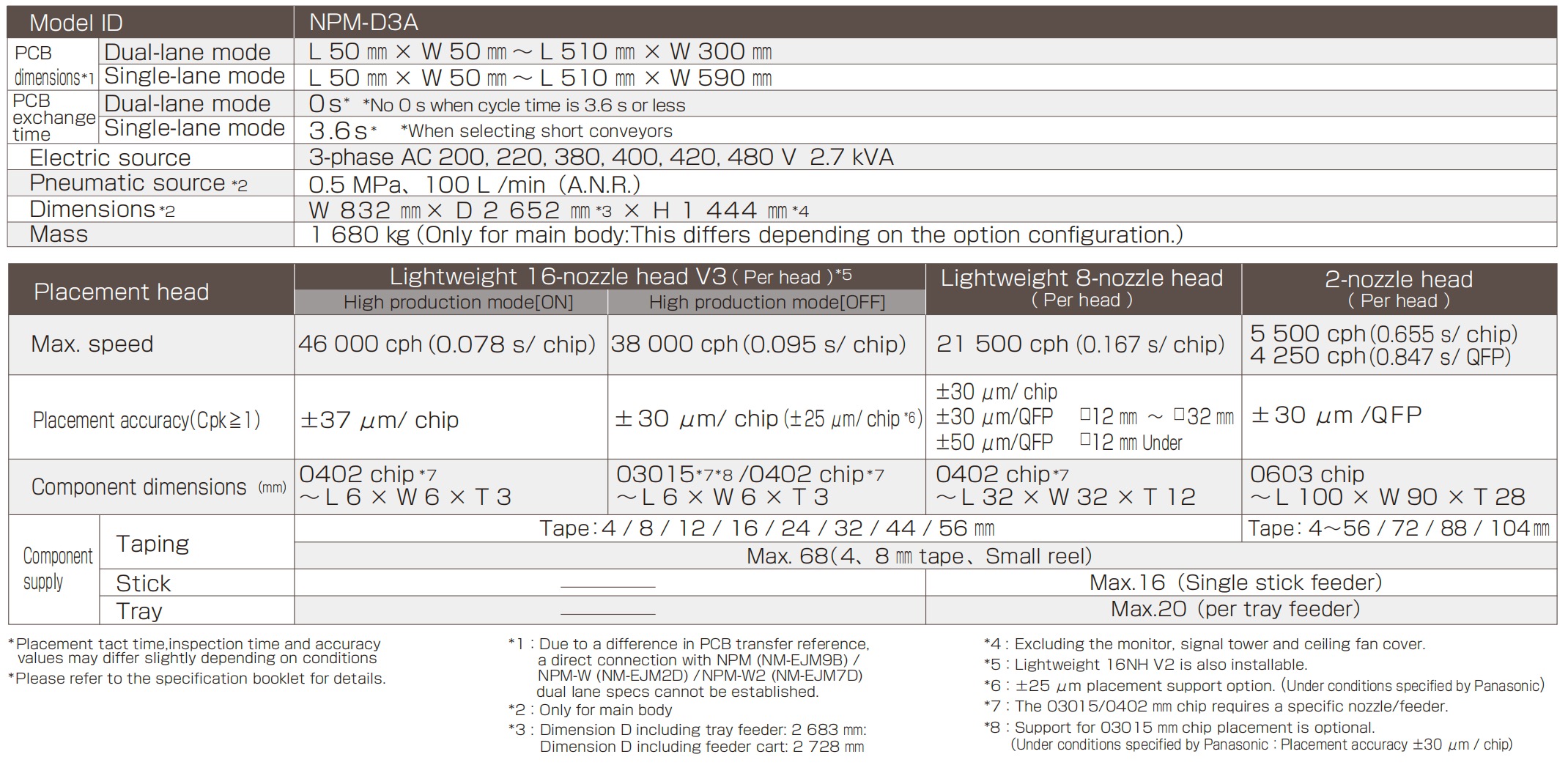

Specification
