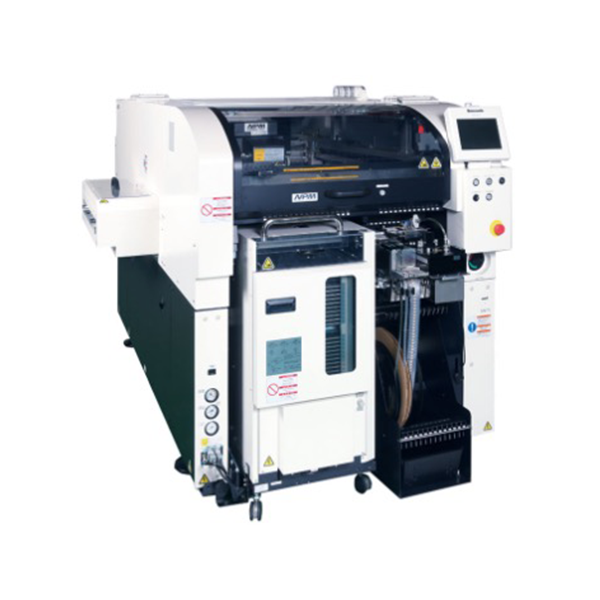

SMT PCB Pick And Place Machine Panasonic Chip Mounter NPM-TT2
The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.
PRODUCT DETAIL
Feature
Key Feature:
- Compatible with lightweight 8-nozzle or 3-nozzle head V2
- Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range
- Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs
- Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations
- Compatible with CM and NPM-series intelligent feeders & nozzles
Multi Recognition Camera
Recognition data is consolidated with NPM-D3/W2. In addition, the recognition speed became higher
including vertical inspection of parts condition.
High productivity through fully independent placement
Capable of fully independent placement of tray components improving cycle time of mid- , large-sized component placement with 3-nozzle head V2. Output of entire line is enhanced.
Support Pin Automatic Change (option)
Automate position change of support pins to enable non-stop changeover and help save man-power and operation errors

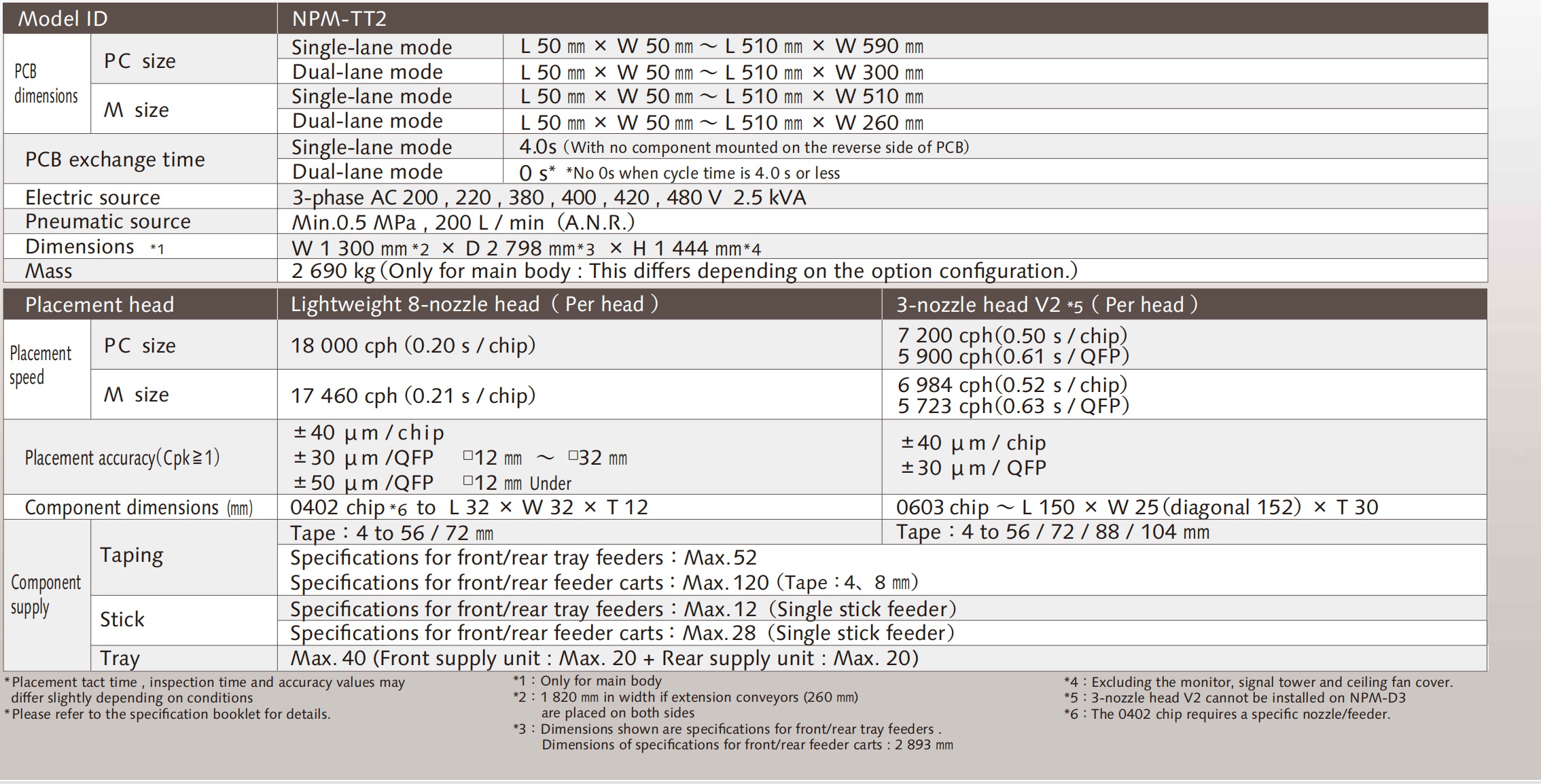

Specification
