Feature:

● Spray Fluxer + Preheating+ Soldering module ,integrated design, flexible configuration and free expansion;
● The point soldering module and the group soldering module are freely matched and combined;
● The most efficient selective soldering module;
● Sectional modular transmission structure;

Specification:

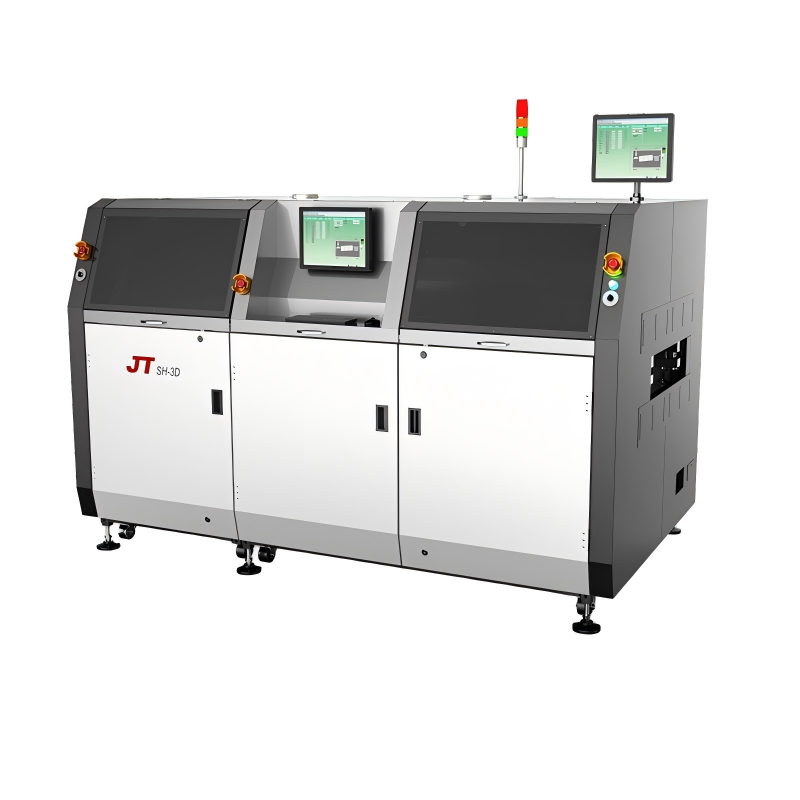

Model	SH-3D-450
Parameters
Dimension L*W*H	2600*1800*1650mm
PCB width	60-450mm
PCB length	120-508mm
PCB Top Space	Max 120mm
PCB Bottom Space	Max 50mm
Conveyor Speed	0.2-10m/min
PCB weight	Max: 5KG
Fluxer Module
Flux Capacity	2L
The size of Flux Nozzle Tube	130μm
Flux width	2-8mm
Preheating Module
Bottom movable infrared	Max 14KW
Temperature Range	Room temperature-250℃
Top Air Heater	Max 6KW
Soldering Module
Min Diameter of solder nozzle	2.5/4
Wave height	3-5mm
Solder pot capacity	13KG( electromagnetic pump)
Soldering temperature	Max:350℃
Heating time	75min(electromagnetic pump)
Pot heating Power	1kw /single pot
Location Speed	X/Y: 2-200mm/s
Temp, Control Accuracy	±0.5mm
Control System
PC Operating System	Window 10
Process Visualization	CCD visual
Software Language	Chinese and English version
Programming Mode	Inline/offline programming
Date import	Image introduction
Air system
Required Pressure	0.4-0.8Mpa
N2 Consumption	Each consumes about 1.5-2m³/h
N2 Concentration	≥99.999%
Electrical Parameter
Power supply	AC 380V 50/60Hz
Consumption	35KW
Air Duct Diameter	200mm
Exhaust Air Rate	360-900m³/h
