Feature:

1:Integrated full-functional model, the whole motion platform integrated

spray and welding, compact space.

2:PCB plate fixed, spray and welding platform moving.

3:High welding quality, greatly improve the pass rate of welding.

4:Modular design of SMEMA online transportation, support customers for

flexible line formation.

5:Full PC control. All parameters can set in PC and saved to PCB menu,

quality.

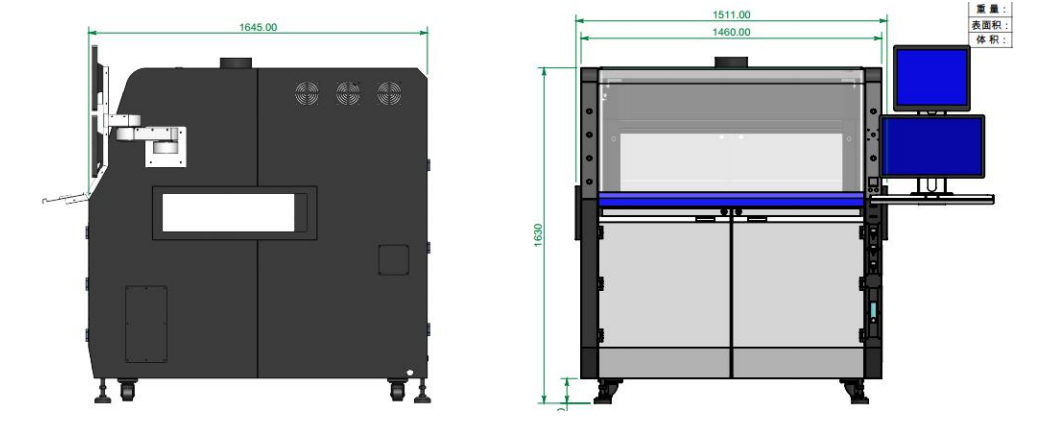

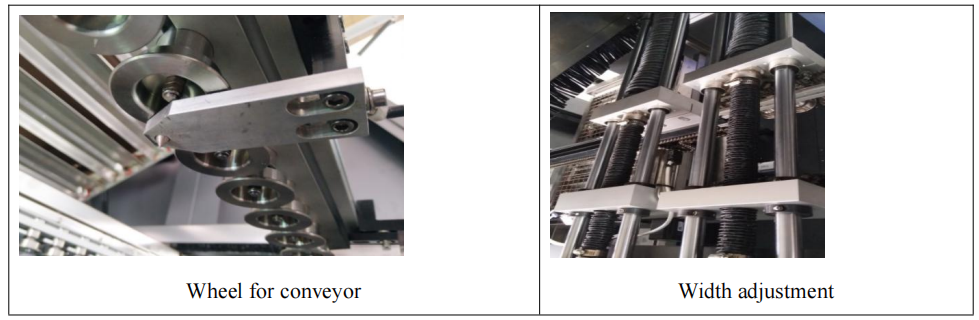

Image:

Specification:

Machine name	CR-Tech-400
General
Dimension	L1510×W1650xH1650mm
General power	10kw
Consumption power	2--4kw
Power supply	Single Phase 220V 50HZ
Net weight	700KG
Required air source	3-5 Bars
Required air flow	8-12L/min
Required N2 pressure	3-4 Bars
Required N2 flow	>2m³/hours
Required N2 purity	》99.998%
Required exhausting	500---800cbm/h
Carrier or PCB
Carrier	Necessary
Max carrier size	L400×W400MM Remark:Wis machine's wide direction
Pcb edge	Above 3mm
Controlling &Conveyor
Controlling	PLC+controller
Conveyor width	100-400MM
Conveyor type	Roller conveyor
Conveyor thick	1----4mm
Conveyor direction	Left to right
Conveyor up clearance	50MM
Conveyor bottom clearance	30MM
Conveyor load	Less 10kg
Conveyor rail	Aluminum rail
Conveyor height	900+/-30mm
Motion table(fluxing)
Motion axis	X,Y
Motion control	Closed loop servo control
Position accuracy	+1-0.05 mm
Chassis	Metal welding
Flux management
Flux nozzle	Jet valve
Nozzle durability	Stainless steel
Flux tank capacity	3L
Flux tank	Pressure tank
Alcohol tank capacity	1L
Alcohol tank	Pressure tank
Preheat
Preheat method	Upper &bottom IR heating
Heater's power	6kw
Temperature range	25--240c degree
Motion table(soldering)
Motion axis	X,Y,Z
Motion control	Closed loop servo control
Motion motor	Panasonic servo motor
Ball screw	Hiwin
Position accuracy	+1-0.05 mm
Chassis	Metal welding
Solder pot
Standard pot number	1
Solder pot capacity	15 kg /solder pot
Solder temperature range	PID
Melting time	20--30 Minutes
Max solder temperature	350 ℃
Solder heater	1.2kw
Solder nozzle
Nozzle dim	Customized
Material	High carbon alloy
Standard equipped nozzle	Standard configure 5pcs/set(Inner diameter:3mm,4mm, 5mm,6mm,8mm)
N2 management
N2 heater	Standard equipped
PID control N2 temp range	0-350 ℃
N2 consumption	1-2m³/h/pot

Key parts

Name	Brand	Brand origin
Controlling
Industrial PC	EVOC	China
Monitor	Dell	USA
Controller	Googoltech	China
Position camera	Toshiba	Japan
SSR	佳乐Carlo	Swiss
Box relay	ABB	Swiss
Switch	MeanWell	TaiWan
Contactor	ABB	Swiss
AC contactor	ABB	Swiss
Sensor	Keyence	Japan
Fiber sensor	Keyence	Japan
Motion parts
Servo motor	Panasonic	Japan
Servo driver	Panasonic	Japan
Stepper motor	Kinco	China
Stepper driver	Kinco	China
Ball screw	Hiwin	China TaiWan
Linear guild	Hiwin	China TaiWan
Pneumatic
Pressure sensor	SMC	Japan
Air cylinder	AirTAC	China TaiWan
