Feature:

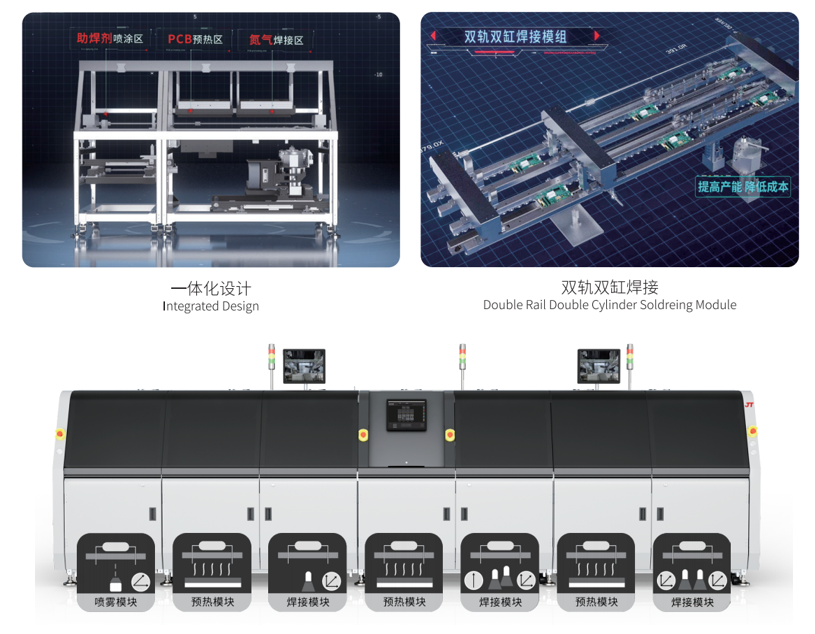

1:Integrate design

· Fluxer Spray + Preheating+Soldering module, integrated design, flexible configuration andfree expansion.

2:Most Efficient

· Fluxer Spray + Preheating+Soldering module, integrated design, flexible configuration andfree expansion.

3:Transmission structure

·Sectonal modula transmission structure.

4:Soldering module

· The point soldering module and the group soldering module are freely matched and combined.

Image:

Specification:

型 号 M o d e l		NIS-450	NIS-610
外型尺寸	Dimension(L×W×H)	2600×1800×1650mm(1-2缸pot)	3350×1985×1650mm(1-2缸pot)
PCB宽度	PCB Width	60-450mm	60-610mm
PCB长度	PCB Length	120-500mm	120-700mm
PCB顶部空间	PCB Top Space	Max:120mm
PCB底部空间	PCB Bottom Space	Max:60mm
PCB工艺边尺寸	PCB Edge Size	≥4mm
PCB运输高度	Conveyor Height	900±20mm
PCB运输速度	Conveying Speed	0.2-10m/min
PCB重量	PCB Weight	Max:8kg
助焊剂储存罐	Flux Capacity	2L
喷雾喷头管大小	The Size of Flux Nozzle Tube	130μm
喷涂宽度	Flux Width	2-8mm
底部动态红外发热器	Bottom movable Infrared Heater	Max:13.5KW Max:18KW
温度范围	Temperature Range	室温Room Temperature-250℃
顶部热风加热器	Top Air Heater	Max:5KW Max:7KW
喷嘴焊接速度	Nozzle welding speed	2-20mm/s
波峰高度	Wave Height	3～5mm
锡炉容量	Solder Pot Capacity	8KG(机械泵Mechanical pump)/13KG(电磁泵Electromagnetic pump)
焊接温度	Soldering Temperature	Max:350℃
加热时间	Heating Time	40min(机械泵Mechanical pump300℃)/75min(电磁泵Electromagnetic pump300℃)
锡炉加热功率	Pot Heating Power	1KW机械泵Mechanical pump/2KW电磁泵Electromagnetic pump
平台移动速度	Platform movement speed	X/Y:2-200mm/s;Z:2-100mm/s
控温精度	Temp.Control Accuraey	±2℃
平台定位精度	Platform positioning accuracy	皮带Belt:±0.15mm/丝杆Lead screw:±0.05mm
PC操作系统	PC Operating System	Windows 10
远程可视化	Process Visualization	CCD可视Visual
软件语言	Software Language	中英文可切换Chinese and English Changeable
编程方式	Programming Mode	在线/离线编程Inline/Offline Programming
数据导入	Data lmport	Gerber、图像导入Image Introduction
气体供应	Air Supply	氮气/空气N2/O2
所需压力	Required Pressure	0.4-0.8Mpa
氮气消耗量	N2 Consumption	每个锡缸消耗约Each consumes about 1.5-2m³/h
N2浓度	N2 Concentration	≥99.999%
电源	Power Supply	AC 380V3φ5W 50/60Hz
总功率	Consumption	35KW
排风管直径	Air Duct Diameter	φ200mm
排风管排风量	Exhaust Air Rate	360～900m³/h
