Feature:
1:Soldering automation
·The soldeing for double-side PCB can be applied automatically.
2:Software upgrade
·Without any initial PCB data, the figure can be loaded quickly with simple & fast graphic programming; Selective fux spraying can control the fux procesingaccurately as well as keeping the clear surface of PCB with extremely low flux consumption;
· Offline programmingfunction/Gerber file can be applicable.
3:Wave nozzle
· Transmission speed of wave nozzle is adjustable.Inline wave height monitoring system and automatic calibration function.
4:CCD Camera
·Adopted CCD camera to monitor solder processing.the solderingquality can be traced in whole processing.
Image:

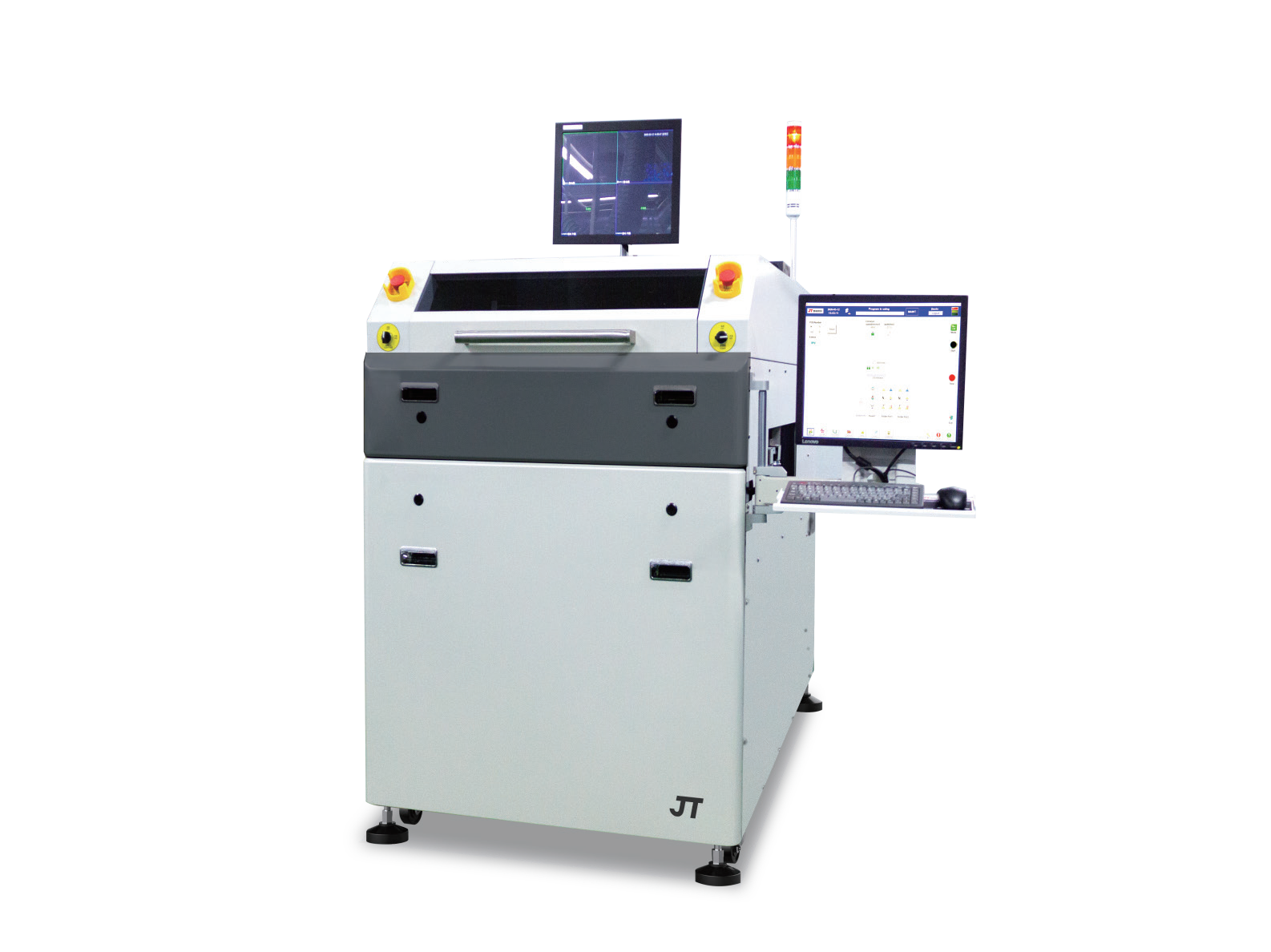

MIS-300/450

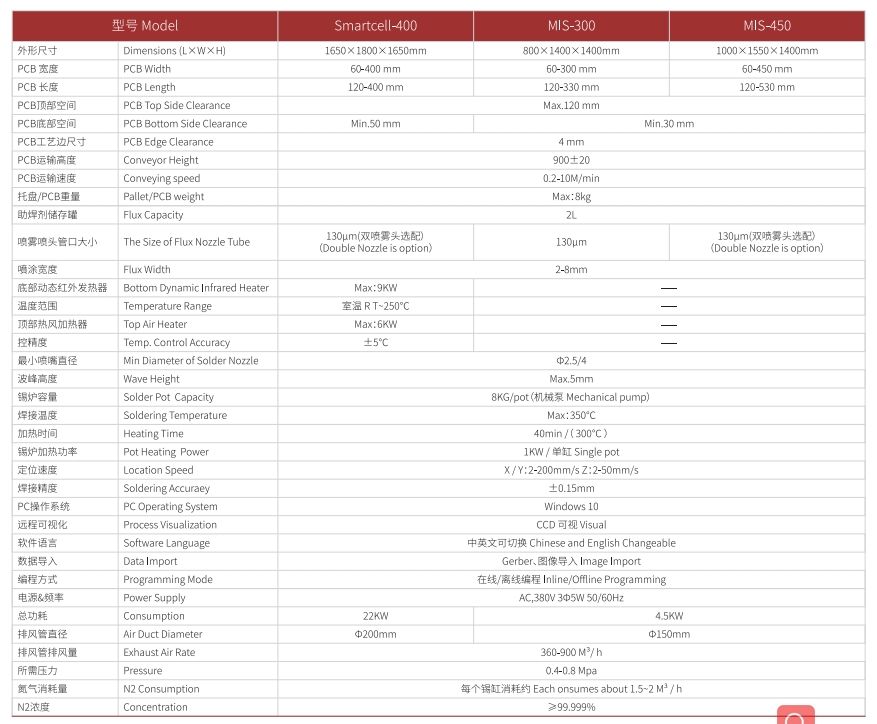

Specification:

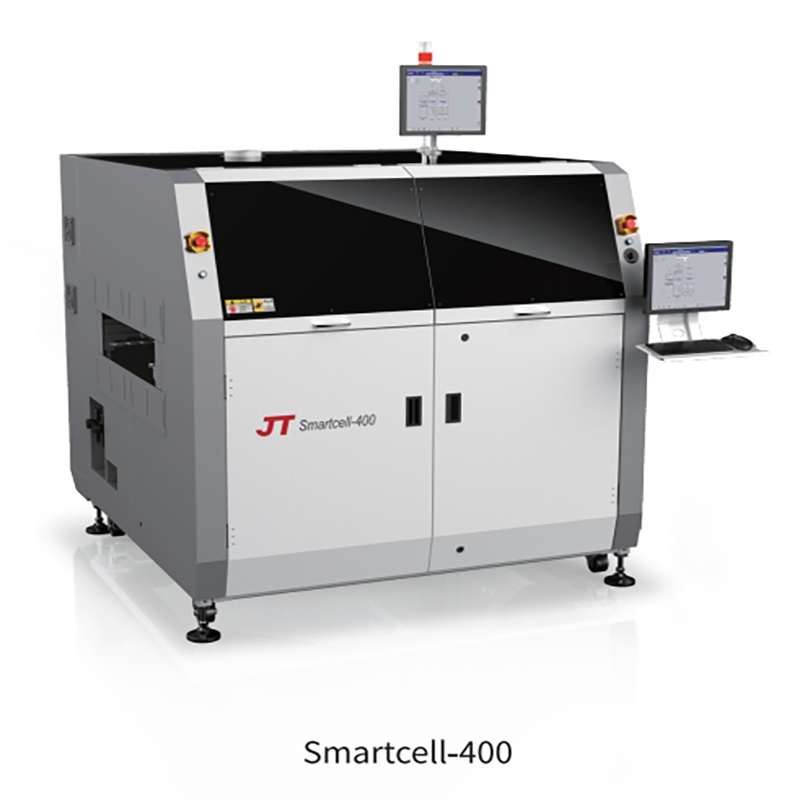

| 型号Model | Smartcell-400 | MIS-300 | MIS-450 | |
| 外形尺寸 | Dimensions (L×W×H) | 1650×1800×1650mm | 800×1400×1400mm | 1000×1550×1400mm |
| PCB宽度 | PCB Width | 60-400 mm | 60-300 mm | 60-450 mm |
| PCB长度 | PCB Length | 120-400 mm | 120-330 mm | 120-530 mm |
| PCB顶部空间 | PCB Top Side Clearance | Max.120 mm | ||
| PCB底部空间 | PCB Bottom Side Clearance | Min.50 mm | Min.30 mm | |
| PCB工艺边尺寸 | PCB Edge Clearance | 4 mm | ||
| PCB运输高度 | Conveyor Height | 900±20 | ||
| PCB运输速度 | Conveying speed | 0.2-10M/min | ||
| 托盘/PCB重量 | Pallet/PCB weight | Max:8kg | ||
| 助焊剂储存罐 | Flux Capacity | 2L | ||
| 喷雾喷头管口大小 | The Size of Flux Nozzle Tube |
130μm(双喷雾头选配)
(Double Nozzle is option)
|
130μm |
130μm(双喷雾头选配)
(Double Nozzle is option)
|
| 噴涂宽度 | Flux Width | 2-8mm | ||
| 底部动态红外发热器 | Bottom Dynamic Infrared Heater | Max:9KW | —— | |
| 温度范围 | Temperature Range | 室温RT~250℃ | —— | |
| 顶部热风加热器 | Top Air Heater | Max:6KW | —— | |
| 控精度 | Temp.Control Accuracy | ±5℃ | —— | |
| 最小喷嘴直径 | Min Diameter of Solder Nozzle | φ2.5/4 | ||
| 波峰高度 | Wave Height | Max.5mm | ||
| 锡炉容量 | Solder Pot Capacity | 8KG/pot(机械泵Mechanical pump) | ||
| 焊接温度 | Soldering Temperature | Max:350℃ | ||
| 加热时间 | Heating Time | 40min/(300℃) | ||
| 锡炉加热功率 | Pot Heating Power | 1KW/单缸Single pot | ||
| 定位速度 | Location Speed | X/Y:2-200mm/s Z:2-50mm/s | ||
| 焊接精度 | Soldering Accuraey | ±0.15mm | ||
| PC操作系统 | PC Operating System | Windows 10 | ||
| 远程可视化 | Process Visualization | CCD可视Visual | ||
| 软件语言 | Software Language | 中英文可切换Chinese and English Changeable | ||
| 数据导入 | Data Import | Gerber、图像导入Image Import | ||
| 编程方式 | Programming Mode | 在线/离线编程Inline/Offline Programming | ||
| 电源&频率 | Power Supply | AC,380V3φ5W50/60Hz | ||
| 总功耗 | Consumption | 22KW | 4.5KW | |
| 排风管直径 | Air Duct Diameter | φ200mm | φ150mm | |
| 排风管排风量 | Exhaust Air Rate | 360-900 M³/h | ||
| 所需压力 | Pressure | 0.4-0.8 Mpa | ||
| 氮气消耗量 | N2 Consumption | 每个锡缸消耗约Each onsumes about 1.5~2M³/h | ||
| N2浓度 | Concentration | ≥99.999% | ||
