Wave Solder Outfeed conveyor OUC-400
Wave solder outfeed conveyor, using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering, The cooling fan can be set to cool down the PCB board.
Brand: CR-tech
Model: OUC-400
Demensions(L×W×H): 1200*490*1200(mm)
PCB width: 0-400(mm)
PCB direction: L-R
Conveyor speed: 0-4000(mm)/Min
Conveyor Height: 750-1200mm(adjustable)
Belt Material: ESD Belt
Conveyor length: 400±800(mm)
Lead time: 15 days
Brand: CR-tech
Model: OUC-400
Demensions(L×W×H): 1200*490*1200(mm)
PCB width: 0-400(mm)
PCB direction: L-R
Conveyor speed: 0-4000(mm)/Min
Conveyor Height: 750-1200mm(adjustable)
Belt Material: ESD Belt
Conveyor length: 400±800(mm)
Lead time: 15 days
PRODUCT DETAIL
Features:
1.It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.
2.Transmission speed, transfer height and track angle can be adjusted.
3.Cooling fan can be installed so that it can protect the PCBs or the component.
4.Special belt and track, transmission smooth, and work stable and reliable.

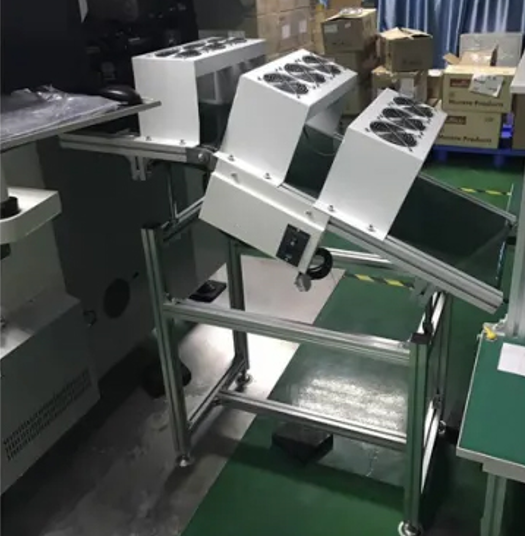

Image:
Specification:
| Model | OUC-400 |
| Demensions(L×W×H) | 1200*490*1200(mm) |
| PCB width | 0-400(mm) |
| PCB direction | L-R |
| Conveyor speed | 0-4000(mm)/Min |
| Motor | 1P AC220V 50/60HZ 15W |
| Power supply | 1P AC220V 50/60HZ |
| Conveyor Height | 750-1200mm(adjustable) |
| Belt Material | ESD Belt |
| Conveyor length | 400±800(mm) |
| Weight | Approx.48Kg |
