Wave Soldering Insertion Production Line 2.4M
Dimensions: 240*60*180cm
PCB width: 50-300mm
Conveyor speed: 0.2-2m/min
Product description: Automatic 2.4 Meter dip insertion line, it can be customized the size according to your requirement.
Brand: CR-tech
Drive power:: 60W AC220V/1phase/50HZ60
Speed: Conveyor speed control by motor
Lead time: 5-7 working days
Warranty: 1 year
PCB width: 50-300mm
Conveyor speed: 0.2-2m/min
Product description: Automatic 2.4 Meter dip insertion line, it can be customized the size according to your requirement.
Brand: CR-tech
Drive power:: 60W AC220V/1phase/50HZ60
Speed: Conveyor speed control by motor
Lead time: 5-7 working days
Warranty: 1 year
PRODUCT DETAIL
Automatic Insert Line Features:
1、this machine is used for the PCB board plug-in components for the assembly, it is used in front of wave soldering machine;
2、we can add tracheal tube, gas tube and other equipments;
3、this machine is made of aluminum which sized in 40*40mm.
4、the chain conveyor is smooth and reliable.
5、we can handle the speed by stepless frequency.
Technical parameters:
PCB size: 50-350mm
Speed: 0.2-2m/min
Drive power: 60W AC220V/1phase/50HZ60
Conveyor speed control by motor

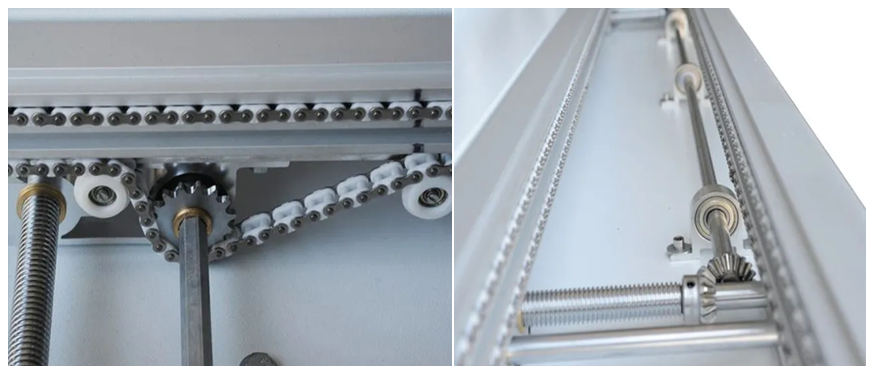

Image:
Package and Delivery:
