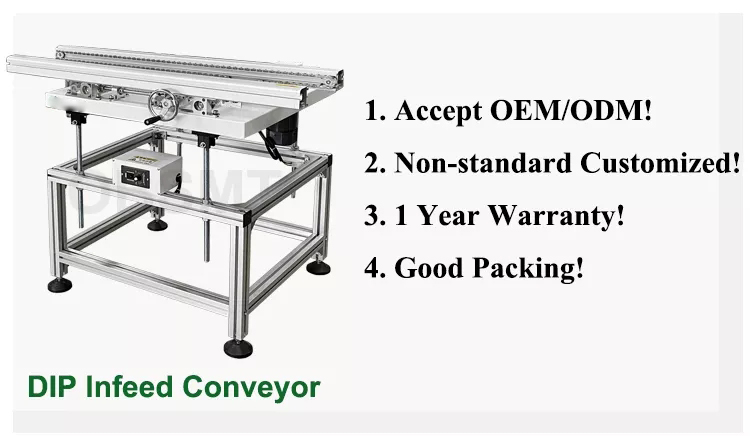

Wave solder infeed conveyor INC-350
Wave solder infeed conveyor, it is used to feed PCB’s or pallets into wave soldering machine at 6-7°. conveyor width and angle can be adjusted by hand crank. Special belt and track, transmission smooth, and work stable and reliable.
Brand: CR-tech
Model: INC-350
Demensions(L×W×H): 1000*700*750(mm)
PCB width: 0-350(mm)
PCB direction: L-R
Conveyor speed: 0-2000(mm)/Min
Motor: 1P AC220V 50/60HZ 15W
Conveyor Height: 750±20mm
Belt Material: ESD Belt
Conveyor length: 1000(mm)
Lead time: 15 days
Brand: CR-tech
Model: INC-350
Demensions(L×W×H): 1000*700*750(mm)
PCB width: 0-350(mm)
PCB direction: L-R
Conveyor speed: 0-2000(mm)/Min
Motor: 1P AC220V 50/60HZ 15W
Conveyor Height: 750±20mm
Belt Material: ESD Belt
Conveyor length: 1000(mm)
Lead time: 15 days
PRODUCT DETAIL
Feature:
1、It is used to feed PCB’s or pallets into wave soldering machine at 6-7°.
2、Conveyor width and angle can be adjusted by hand crank.
3、Special belt and track, transmission smooth, and work stable and reliable.

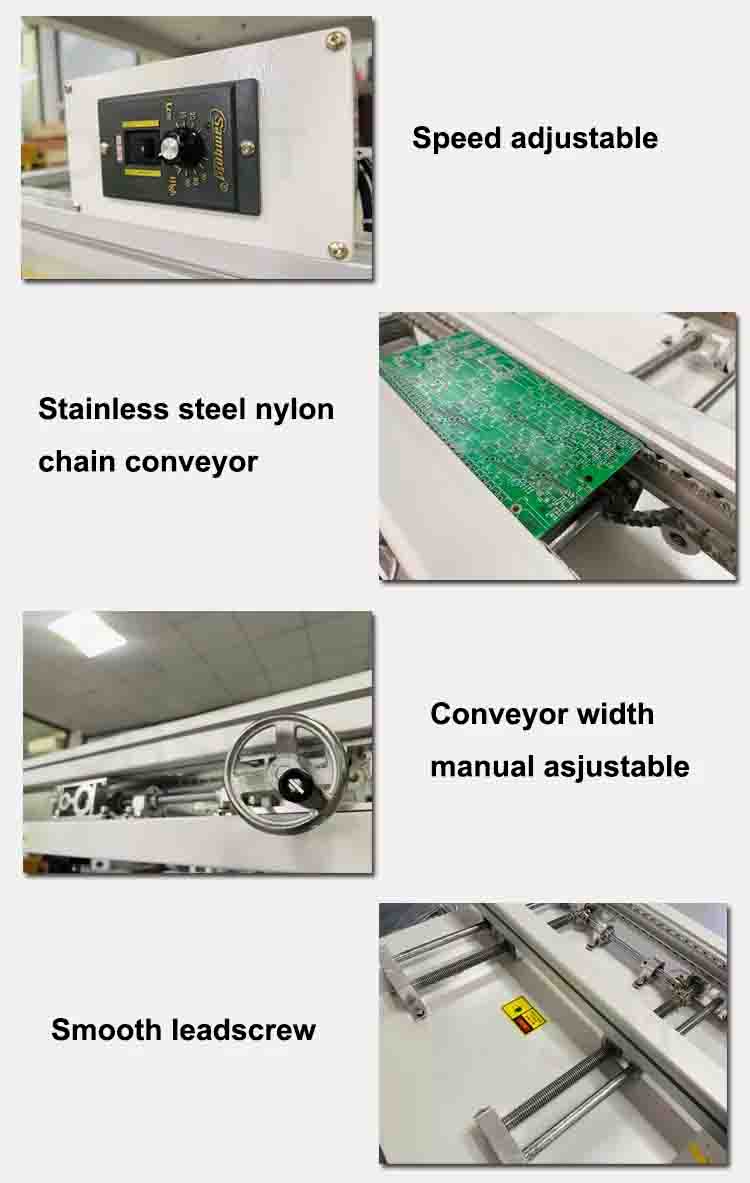

Image:
Specification:
| Model | INC-350 |
| Demensions(L×W×H) | 1000*700*750(mm) |
| PCB width | 0-350(mm) |
| PCB direction | L-R |
| Conveyor speed | 0-2000(mm)/Min |
| Motor | 1P AC220V 50/60HZ 15W |
| Power supply | 1P AC220V 50/60HZ |
| Conveyor Height | 750±20mm |
| Belt Material | ESD Belt |
| Conveyor length | 1000(mm) |
| Weight | Approx.45Kg |
