Feature:
1:X.Y,Z three axis movement, accurately achieving selective spraying technology for various circuit boards to avoid non coated areassuch as connectors.
2:It can achieve multi trajectory spraying such as point coating, linear spraying, and curve spraying, completing high-density and complexcircuit board spraying processes.
3:It can effectively evenly coat the edges of the device and eliminate the shadow effect of spraying.
4:A transmission and control system with high speed,high reliability,and high stability.
5:Capable of achieving high-density complex circuit board spraying and dispensing processes.
6:The device is equipped with intligent electric width adjustment function (the input board width can be electrically adjusted in place).
7:Whole line docking: The equipment is equipped with SMT industry standard SMEMA interfaces,which can be used for signal dockingwith other devices.

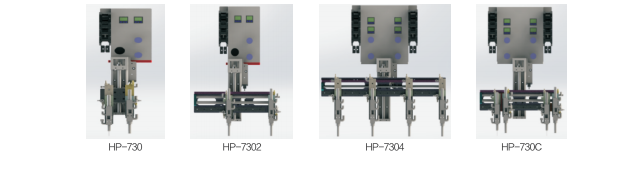

Image:
Specification:
| 型号 | HP730 | HP7302 | HP7304 | HP730C |
|
外型尺寸
External dimensions
|
L1060mm*W1300mm*H1700mm | |||
|
设备平台
Device Platform
|
T5不锈钢板
T5 stainless steel plate
|
|||
|
控制方式
Control mode
|
工控机+板卡控制
Industrial computer+board control
|
|||
|
编程方式
Programming method
|
手动示教
Manual teaching
|
|||
|
PCB传输高度
PCB transmission height
|
910±20mm | |||
|
运输速度
Transportation speed
|
0-5000mm/min | |||
|
输送方式
Conveying method
|
链条输送
Chain conveyor
|
|||
|
传输马达
Transmission motor
|
马达加减速机
Motor acceleration reducer
|
|||
|
输送宽度
Conveying width
|
50—450mm可调
50-450mm adjustable
|
|||
|
元器高度
Element height
|
上下MAX:110mm
Up and down MAX:110mm
|
|||
|
宽度调节方式
Width adjustment method
|
智能电动调节
Intelligent electric adjustment
|
|||
|
三轴驱动
Three axis drive
|
伺服电机+精密丝杆模组驱动
Servo motor+precision screw module drive
|
|||
|
运行速度
running speed
|
MAX:800mm/s | |||
|
重复精度
Repetitive accuracy
|
±0.2mm | |||
|
胶阀类型
Rubber valve type:
|
一点一喷
Little by little spray
|
双阀同步，间距可调
Dual valve synchronization,adjustable spacing
|
四阀同步，间距可调
Four valve synchronization,adjustable spacing
|
两点两喷，组间距可调
Two ponts and two sprays,with adjustable groupspacin
|
|
料桶容积
Bucket volume
|
10L供胶桶+2L清洗桶
10L glue supply bucket+2L cleaning bucket
|
|||
|
设备电源
Equipment power supply
|
AC220V 50Hz 1.8KW | |||
|
设备气源
Equipment air source
|
4-6kgf/cm² | |||
|
设备重量
Equipment weight
|
Approx.500KG | |||
|
标配功能
Standard features
|
自带清洗功能，自带照明光源和荧光检测光源
Equipped with cleaning function,Equipped with lighting source and fluorescence detection light source
|
|||
