Feature:

※ Button type control with independent temperature controller alarm and dual over temperature protection;
※Stainless steel chain conveyor with an effective width of 50-450mm, and the conveying sped is adjusted by aspeed regulator;
※ Hand operated lamp tube lifting method, electric lifting and cover opening function;
※ The device simuttaneously caries one set of electronic dimming light sources,and the UV light intensity can be quickly adjusted;
※ The device is equipped with the SMTindustry standard SMEMA interface, wnich can be used for signal docking with other devices.

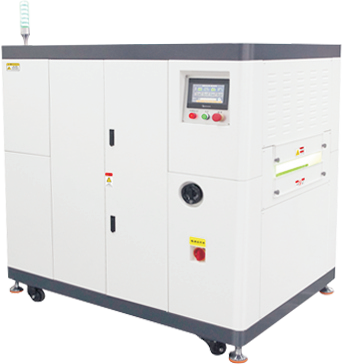

Image:

Specification:

型号	MODEL	HP-UV106FM	HP-UV105AS
外型尺寸	External dimensions	L1500mm*W1050mm*H1540mm	L1350mm*W930mm*H1500mm
控制方式	Control mode	PLC+触摸屏控制 PLC+touch screen control	按 键 控 制 Key control
传输高度	Transmission height	910±20mm
输送方式	Conveying method	定制硬质加硬铝合金轨道+不锈钢链条 Customized hard and hardened aluminum alloy track+stainless steel chain
轨道长度	Track length	1500mm,可定制 1500mm,customizable	1350mm,可定制 1500mm,customizable
运输速度	Transportation speed	0.5-3米/分0.5-	3 meters/minute
传输马达功率	Transmission motor power	步进电机St	epper motor
PCB宽度	PCB width	MAX:450mm
插件间距调节方式	Adjustment method for plug-in spacing	手摇调节Manual adjustment
UV管数量	Number of UV tubes	1组光源1 set of light sources
UV光源功率	UV light source power	6 K W / 支 6KW/piece	5 K W / 支 5KW/piece
UV光源类型	UV light source type	汞灯光源 ， 无级调光光源 Mercury lamp light source
灯管更换周期	Lamp replacement cycle	800-1000H
设备通风	Equipment ventilation	2个ø150mm风口 Air vents
排气量要求	Exhaust volume requirements	2 0 0 0 立 2000 cubic	方米/H meters/H
PCB板大小	PCB board size	MAX:L450mm*W450mm
PCB板元器件过板高度	Height of PCB board components passing through the board	MAX:±100mm
设备净重	Net weight of equipment	Approx.410KG	Approx.380KG
电源	Power Supply	A C 3 8 0 V , 5 0 H z , 三 相 五 线 制 Three-phase five-wire system
总功率	Total power	7KW	6KW
