Feature:
※ PLC+touch screen control, with independent temperature controller alarm and dual over temperature protection;
※ Stainless steel chain conveyor with an effective width of 50-450mm,and the conveying speed is adjusted by the governor
※Hand operated lamp tube lifting method,electric lifting and cover opening function;
※ The device caries two sets of electronic dimming light sources simultaneously,and the UV light intensity can be quickly adjusted.
※The device is equipped with the SMT industry standard SMEMA interface,which can be used for signal docking with other devices.

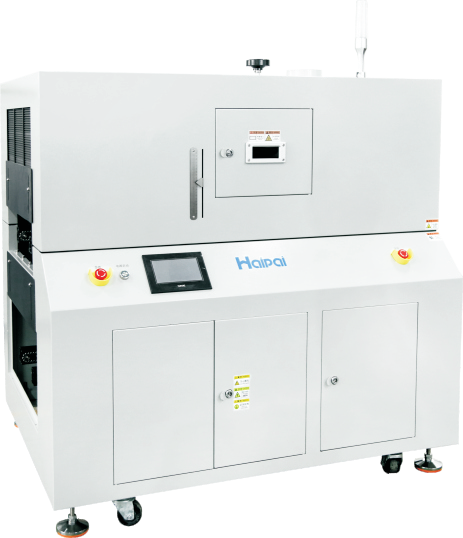

Image:
Specification:
| 型号 Model | HP-UV116FL | HP-UV203FM | HP-UV206FL |
|
外 型 尺 寸 L * W * H
External dimensions
|
1800mm*1080mm*1500mm | 1500mm*1080mm*1500mm | 1800mm*1080mm*1600mm |
|
控制方式
control mode
|
PLC+触摸屏控制
PLC+touch screen control
|
||
|
PCB传输高度
PCB transmission height
|
910±20mm | ||
|
输送方式
Conveying method
|
定制硬质加硬铝合金轨道+不锈钢链条(5mm加长销)
Customized hard and hardened aluminum alloy track+stainless steel chain(5mm extension pin)
|
||
|
轨道长度
Track length
|
1 8 0 0 m m , 可 定 制
1800mm,customizable
|
1 5 0 0 m m , 可 定 制
1500mm,customizable
|
1 8 0 0 m m , 可 定 制
1800mm,customizable
|
|
轨道承重 Track load bearing |
不锈钢耐磨条支撑，特殊处理，5KG/m均匀分布
Stainless steel wear-resistant strip support,special treatment,evenly distributed at 5KG/m
|
||
|
运输速度
Transportation speed
|
触摸屏调节，0-3.5m/min
Touch screen adjustment,0-3.5m/min
|
||
|
轨道调节宽度
Track adjustment width
|
MAX:450mm | ||
|
灯管调幅方式
Lamp amplitude modulation method
|
手摇调节
Manual adjustment
|
||
|
UV光源数量
Number of UV light sources
|
2组，轨道上下各一组，上下对照
Two group
|
2组
Two group
|
2组
Two group
|
|
UV光源功率
UV light source power
|
6KW/套Cover | 3KW/套Cover | 6KW/套Cover |
|
UV光源类型 UV light source type |
汞灯光源，波长：200-400nm;主波峰：365nm
Mercury lamp light source,wavelength:200-400nm;Main peak:365nm
|
||
| 灯管更换周期 Lamp replacement cycle | 800-1500H | ||
|
照射有效范围
Effective range of irradiation
|
450mm | ||
|
设备通风
Equipment ventilation
|
2个φ150风口，满足最佳炉内温度控制
2φ150 air vents for optimal furnace temperature control
|
||
|
排气量要求
Exhaust volume requirements
|
2000立方米/h 2000 cubic meters/h | ||
|
PCB板大小
PCB board size
|
MAX:L450mm*W450mm | ||
|
PCB板元器件过板高度
Height of PCBboard components passing through the board
|
MAX:±100mm | MAX:±100mm | MAX:±110mm |
|
设备重量
Equipment weight
|
Approx.410KG | Approx.380KG | Approx.520KG |
|
电源
Power Supply
|
AC380V,50Hz,三相五线制
Three-phase five-wire system
|
||
|
总功率
Total power
|
13KW | 7KW | 13KW |
