Feature:

●X, Y and Z three-axis movement accurately realizes the selective spraying process of various circuit boards avoiding connectors and other non-coated areas.
●It can realize multi-trajectory spraying such as point coating, linear spraying, curve spraying, etc., and complete the high-density complex circuit board spraying process.
●It can effectively and evenly coat the edge of the device, which can eliminate the spray shadow effect.
●It has high-speed, high-reliability and high-stability transmission and control system.
●It can realize the high-density complex circuit board spraying and dispensing process.
●The device has an intelligent electric width and narrowing function (the width of the input board can be electrically adjusted in place).
●Whole line docking: The equipment is equipped with SMT industry standard SMEMA interface, which can be used for signal docking with other devices.

Image:

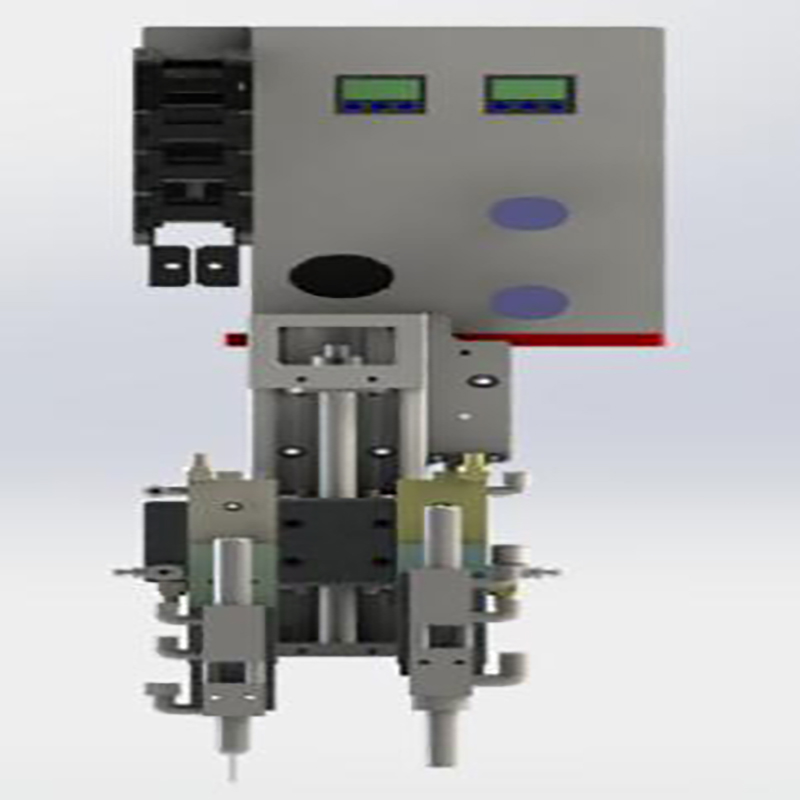

Specification:

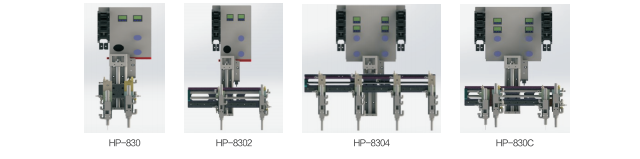

型号 Model	HP830	HP8302	HP8304	HP830C
外型尺寸 External dimensions	L1060mm*W1300mm*H1700mm
设备平台 Device Platform	T20毫米钢板磨平镀铬 T20mm steel plate ground flat chrome plated
控制方式 Control mode	工控机+板卡控制 Industrial computer+motion control card
编程方式 Programming method	手动示教 Manual Teaching
PCB传输高度 PCB transmission height	910±20mm
运输速度 Transportation speed	0-5000mm/min
输送方式 Transmission method	链条输送 Chain conveyor
传输马达 Transmission motor	马达加减速机 Motor acceleration reducer
输送宽度 Conveying width	50—450mm可调 50-450mm adjustable
元器高度 Component height	上下MAX:110mm Up and down MAX:110mm
宽度调节方式 Width adjustment method	智能电动调节 Intelligent electric adjustment
三轴驱动 Three axis drive	伺服电机+半封闭丝杆模组驱动 Servo motor+semi enclosed screw module drive
运行速度 Running speed	MAX:1000mm/s
重复精度 Repetitive accuracy	±0.02mm
胶阀类型 Rubber valve type	一点一喷 Littlebylittle spray	双 阀 同 步 ， 间 距 可 调 Dual valve synchronization adjustable spacing	四 阀 同 步 ， 间 距 可 调 Four valve synchronization adjustable spacing	两点两喷 ， 组间距可调 Two points and two sprays with adjustable group spacing
料桶容积 Bucket volume	10L供胶桶+2L清洗桶 10Lglue supply bucket+2L cleaning bucket
设备电源 Equipment power supply	AC220V 50Hz 1.8KW
设备气源 Equipment air source	4-6kgf/cm²
设备重量 Equipment weight	Approx.650KG
标配功能	自带清洗功能，自带照明光源和荧光检测光源 It comes with a cleaning function, a built-in lighting source and a fluorescence detection source
Standard features	Equipped with cleaning function,built-in lighting source and fluorescence detection light source
