Feature:

1:X.Y,Z three axis movement, accurately achieving selective spraying technology for various circuit boards to avoid non coated areassuch as connectors.
2:It can achieve multi trajectory spraying such as point coating, inear spraying, and curve spraying, completing high-density and complexcircuit board spraying processes.
3:It can effectively evenly coat the edges of the device and eliminate the shadow effect of spraying.
4:A transmission and control system with high speed,high reliability,and high stability.
5:Capable of achieving high-density complex circuit board spraying and dispensing processes,
6:The device is equipped with intelligent electric width adjustment function (the input board width can be electrically adjusted in place).
7:Whole line docking: The equipment is equipped with SMT industry standard SMEMA interfaces,which can be used for signal dockingwith other devices.

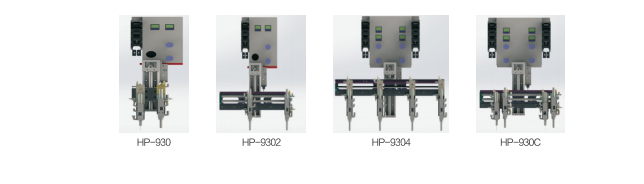

Image:

Specification:

型号Model	HP930	HP9302	HP9304	HP930C
外型尺寸 External dimensions	L1060mm*W1300mm*H1700mm
设备平台 Device Platform	T25毫米钢板磨平镀铬 T25mm steel plate ground flat chrome plated
控制方式 Control mode	工控机+板卡控制 Industrial computer+motion control card
编程方式 Programming method	手动示教 Manual Teaching
PCB传输高度 PCB transmission height	910±20mm
运输速度 Transportation speed	0-5000mm/min
输送方式 Conveying method	链条输送 Chain conveyor
传输马达 Transmission motor	马达加减速机 Motor acceleration reducer
输送宽度 Conveying width	50—450mm可调 50-450mm adjustable
元器高度 Element height	上下MAX:110mm Upand down MAX:110mm
宽度调节方式 Width adjustment method	智能电动调节 Intelligent electric adjustment
三轴驱动 Three axis drive	伺服电机+全封闭丝杆模组驱动 Servo motor+fully enclosed screw module drive
运行速度 Running speed	MAX:1000mm/s
重复精度 Repetitive accuracy	±0.02mm
胶阀类型 Rubber valve type	一点一喷 Little bylile spray	双 阀 同 步 ， 间 距 可 调 Dual valve synchronization adjustable spacing	四 阀 同 步 ， 间 距 可 调 Four valve synchronization adjustable spacing	两点两喷 ， 组间距可调 Two points and two sprays with adjustable group spacing
料桶容积 Bucket volume	10L供胶桶+2L清洗桶 10Lglue supply bucket+2L cleaning bucket
设备电源 Equipment power supply	AC220V 50Hz 1.8KW
设备气源 Equipment air source	4-6kgf/cm²
设备重量 Equipment weight	Approx.700KG
标配功能 Standard features	自带清洗功能，自带照明光源和荧光检测光源 Equipped with cleaning function,built-in lighting source and fluorescence detection light source
