Feature:

1:Adopting computer control,Windows operating system,fault sound and light alarm,and menu 2:display.Using servo motors and screw modules.
3:Can directly import any brand of SMT machine files,and can also be visually programmed online.

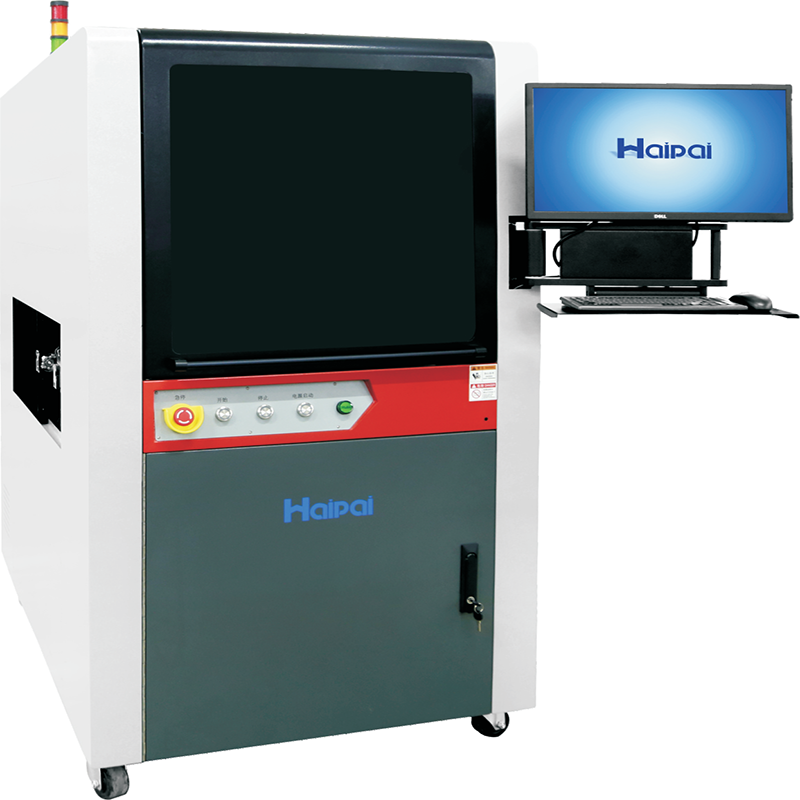

Image:

Specification:

型号	MODEL	HP-A30
外型尺寸	External dimensions	L910mm*W1600mm*H1700mm
设备重量	Equipment weight	1000kg
控制方式	Control mode	工控机+运动控制卡Industrial computer+motion control card
编程方式	Programming method	在线示教编程Online teaching programming
CCD视觉定位	CCD visual positioning	自动校准运行精度Automatic calibration operation accuracy
三轴驱动	Three axis drive	伺服电机+精密丝杆Servo motor+precision screw
三轴运动速度	Three axis motion speed	1000mm/s
重复精度	Repetitive accuracy	±0.02mm
涂覆行程	Coating stroke	X=300mm Y=450mm Z=100mm
胶阀数量	Number of rubber valves	1把压电阀和1把精密雾化阀1 piezoelectric valve and 1 precision atomization valve
涂料容量	Coating capacity	菜单+声光报警Menu+sound and light alarm
输入气压报警	Input air pressure alarm	220V 50～60HZ 3KW
电源	Source	6.2kgf/cm²
气压	Pressure	SMEMA
通讯接口	Communication interface	2-5m/min
步进马达输送	Stepper motor conveying	单轨道：50～400mm Single track:50-400mm
自动调幅	Automatic amplitude modulation	配链条输送1段停板模式Equipped with chain conveyor section 1 stop mode
输送轨道	Conveying track	CCD视觉定位，视觉辅助编程CCD visual positioning,visual assisted programming
