Feature:

1:Control part: PC+software control,all operations can be completed with a mouse,simple,convenient, and easy to understand;Rack part:The 2:rack is made of galvanized sheet welding, completed by electrostatic powder spraying and painting processes. Theoverallsealing can reduce gas leakage, the acrylic window is easy to observe, and the entire machine is beautiful and easy to open.Conveying part: The conveying speed is adjustable from O to 3.5 meters/minute;5mm thick high hardness conveying aluminum material,stainless steel chain transmission, 3:conveying width can be manually adjusted, with a range of 50-300mm; The conveying method isdivided into online and direct type,and the sensor is Taiwan Yangming sensor to prevent misinduction.

4:Detection part:The device is equipped with a high-definition camera, autofocus,and can output high-definition HDMI video signals.

5:Whole line docking: The equipment is equipped with SMT industry standard SMEMA interfaces, which can be used for signal dockingwith other devices.

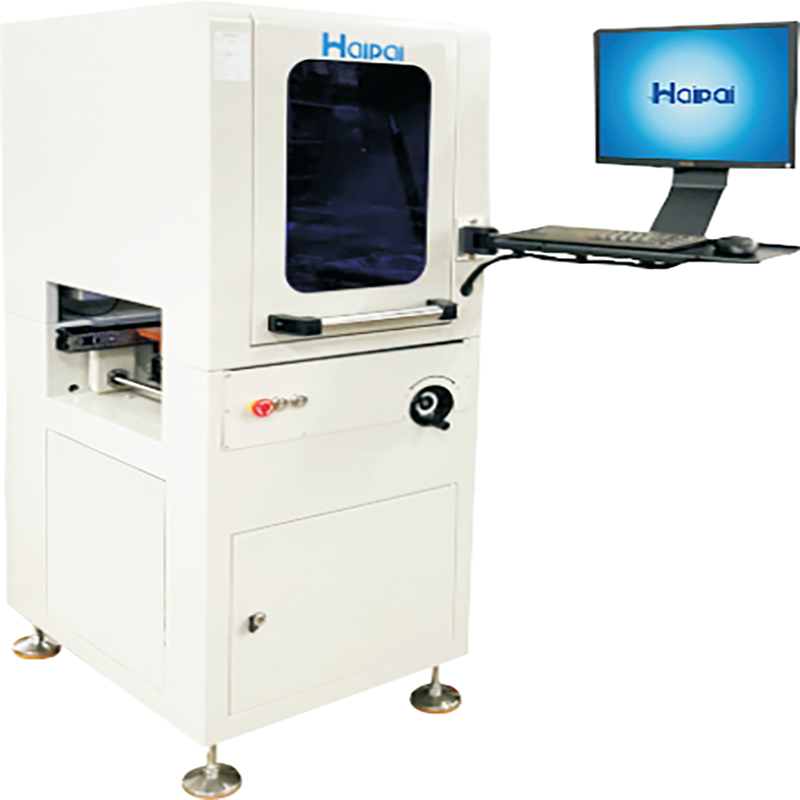

Image:

Specification:

型号	MODEL	HP-AO1350
外型尺寸	External dimensions	L800mm*W800mm*H1700mm
传输高度	Transmission height	910±20mm
运输速度	Transportation speed	0-3500mm/min可调Adjustable
传输马达	Transmission motor	AC220V 60W(25K)
输送方式	Conveying method	链条输送Chain conveyor
调幅方式	Amplitude modulation method	手摇式调节Hand operated adjustment
元件高度	Component height	上下：±110mm Up and down:±110mm
PCB板大小	PCB board size	MAX:L300*W300
照明部分	Lighting part	设备自带照明光源Equipment comes with its own lighting source
检测部分	Detection section	搭载高清摄像机，取照，对比，设备自动判定NG/OKCurcaui aho nimae aigmt mamteatriaeiesISCOK
设备重量	Equipment weight	Approx.120KG
设备电源	Equipment power supply	AC220V 50Hz
设备总功率	Total power of equipment	0.2KW
