Feature:

1:X.Y,Z,and three-axis molion accurately achieve boundary detecion forvarious circuit board spraying processes;Can set detection areas and alarm requirements;
2:The system accuracy is±0.02 millimeters;
3:The device is equpped with inteligent electric width adjustment function (input the board width (fixture width)in the software toautomatically adjus it in place);
4:Programming method:manual teaching (mouse,keyboard set)
5:Whole line docking:The equpment can be connected to other equpment signals.

Image:

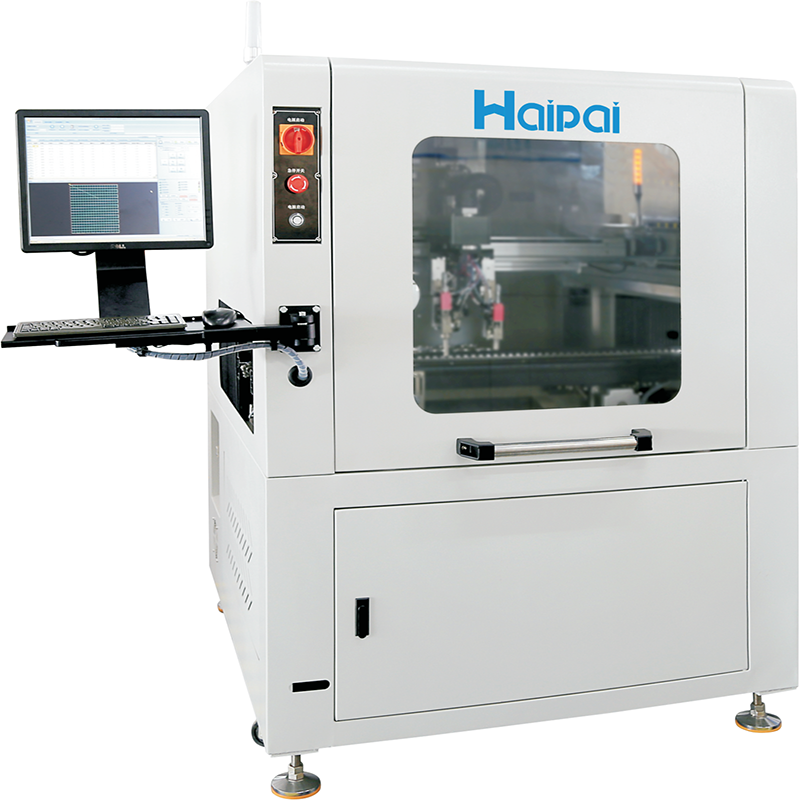

Specificaion:

型号Model	HP-AO1450
外型尺寸 External dimensions	L=1060mm,W=1200mm,H=1700mm
控制方式 control mode	工业控制计算机+运动集成控制板卡 Industrial control computer+motion integrated control board card
运行软件 Running software	自主研发控制软件+Windows系统 Independently developed control software+Windows system
编程方式 Programming method	手动示教 Manual teaching
程序数量 Number of programs	1000个以上 More than 1000
传输高度 Transmission height	910±20mm
边缘空间 Edge space	≥5mm
运输速度 Transportation speed	0-3500mm/min可调 0-3500mm/min adjustable
传输马达 Transmission motor	步进马达 Stepper motor
输送导轨宽度 Conveyor rail width	50-450mm
PCB板大小 PCB board size	MAX:L450*W450
检测区域 Detection area	X450 Y450mm(视实际情况而定) X450 Y450mm(depending on actual situation)
元件高度 Component height	±110mm
调节方式 Adjustment method	智能电动调节 Intelligent electric adjustment
驱动方式 Driving method	步进电机+双精密丝杆驱动 Stepper motor+dual precision screw drive
三轴驱动 Three axis drive	伺服电机+精密丝杆模组驱动 Servo motor+precision screw module drive
三轴速度 Three axis speed	MAX:800mm/s
重复精度 Repetitive accuracy	±0.02mm
通选端口 Gating Port	SMEMA接头 SMEMA connector
相机和镜头类型 Camera and lens types	1个专用CMOS彩色相机，500万像素，搭配16mm镜头 1 dedicated CMOS color camera,5 megapixel,paired with a 16mm lens
相机光源 Camera light source	2套光源(蓝光和紫外光) 2 sets of light sources(blue and ultraviolet)
检测类型 Detection type	可以检测三防喷涂效果的边界，检测不了厚度 Can detect the boundary of the three prevention spraying effect,but cannot detect the thickness
照明部分 Lighting part	设备自带照明光源 Equipment comes with its own lighting source
电源功率 Power supply power	AC220V 50Hz1.8KW
设备总重量 Total weight of equipment	600KG左右 About 600KG
