Feature:

◆Stepper motor and synchronous belt drive control system, offering high rigidity and smooth operation; ◆High speed and precision, significantly enhancing operational efficiency;

◆Can be operated as a standalone unit with simple installation; user-friendly teach pendant programming for easy operation;

◆The fully automatic desktop coating machine features teach functions such as drawing points, lines, arcs and circles, as well as continuous interpolation programming for irregular curves;

◆Capable of continuous coating along irregular curves, including points, lines, surfaces and arcs.

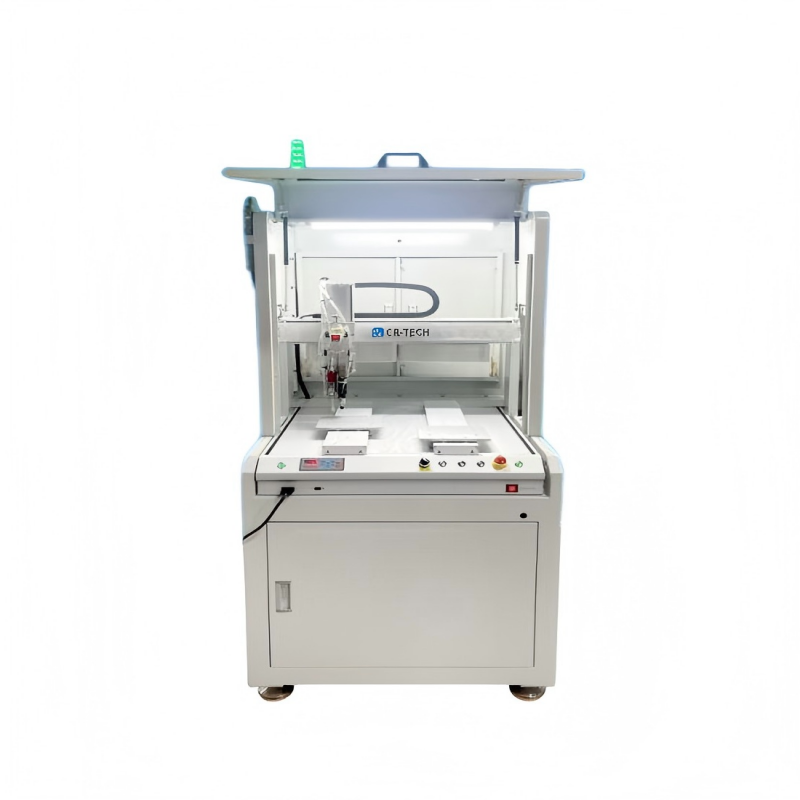

Image:

Specification:

产品型号 Product Model	CR-C70
单边涂覆最大面积 Maximum single-side coating area	L275mm*W345mm
机器重量 Machine weight	95KG
机器尺寸 Machine dimensions	L760*W870*H1650(单位：mm)[含外罩尺寸] 95 kg L760 × W870 × H1650 (mm) [including enclosure dimensions]
驱动方式 Drive system	步进电机+同步带控制 Stepper motor + synchronous belt control
马达系统 Motor System	步进式精密马达 Precision stepper motors
胶阀类型 Dispensing Valve Type	配一把精密雾化阀A-603+1把点胶阀A-D05 with 1 precision atomising valve A-603 + 1 dispensing valve A-D05
胶桶容积 Reservoir Capacity	配1套2升压力桶+1套2升清洗桶 Equipped with 1 x 2-litre pressure reservoir + 1 x 2-litre cleaning reservoir
导轨 Guide Rails	进口品牌，主轴双导轨驱动 Imported brand, dual-rail drive for the main spindle
气缸 Cylinders	知名品牌驱动气缸，控制阀体升降 Well-known brand drive cylinders, controlling the lifting and lowering of the valve body
重复定位精度 Repeatability	±0.02mm
运动速度 Movement Speed	X、Y1、Y2:最高500mm/s,Z:300mm/s , Y1, Y2: up to 500 mm/s; Z: 300 mm/s
加工台面 Work Surface	双Y台面 Dual Y-axis work surface
示教模式 Teach-in Mode	教导盒，程序可导出重复使用 Teach pendant; programmes can be exported for reuse
控制系统 Control System	自主研发运动控制系统 In-house developed motion control system
输入电源 Power Supply	AC220V 50HZ500W
固化方式 Curing Method	LED光源固化，波段365mm LED light source curing, wavelength 365mm
光源类型 Light Source Type	2套光源，发光面积L250*W160mm 2 sets of light sources, illumination area L250 × W160 mm
光源总长度 Total Light Source length	L300*W210*H60mm
光源使用寿命 Light Source Service Life	30000H
光源重量 Light Source Weight	1.8KG
光源功率 Light Source Power	200W
