Feature:

●The equipment is fitted with two knife valves; the spacing between the valve bodies is adjustable, and the valve bodies are suspended vertically by spring-loaded mechanisms;

●The equipment utilises an industrial control computer with a PC-based operating interface;

●The equipment is equipped with a dual-camera inspection system for detecting the area and position of the product after adhesive application;

●The equipment includes a reserved IPTCP interface for future integration with an MES system;

●The adhesive supply system employs dual pressure tanks with a pressure threshold of ≥8 kg/cm².

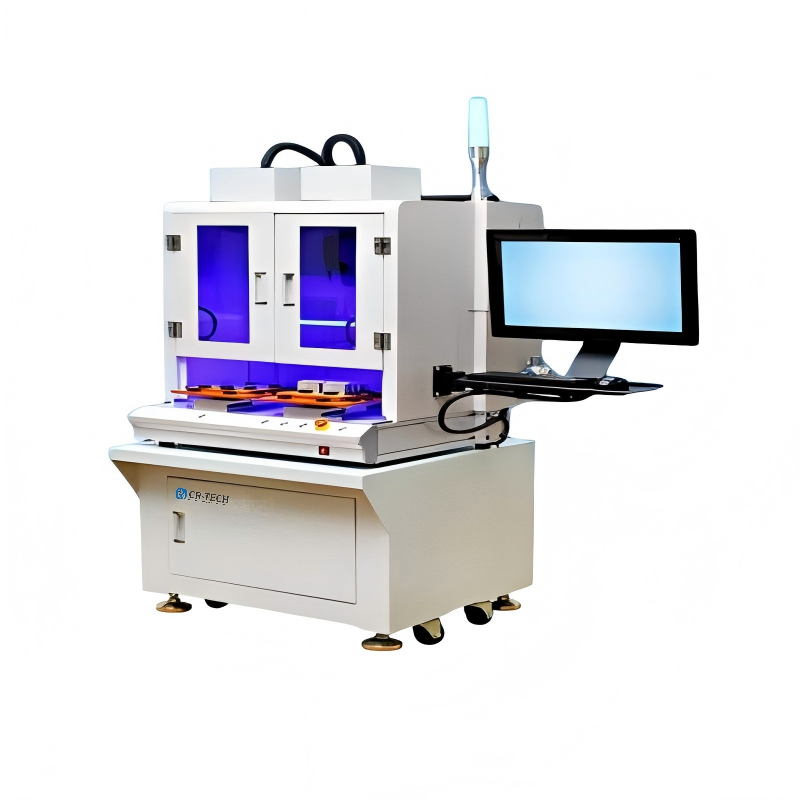

Image:

Specification:

技术参数 Technical Specifications
产品型号 Model		CR-C80
适用胶水 Compatible Glue		各种胶水，膏体、液体 arious glue, including pastes and liquids
点胶范围(X/Y/Z) Dispensing range (X/Y/Z)		600/400/400/100mm(按需订制) 600/400/400/100 mm (customisable)
最大负载(Y/Z) Maximum Load (Y/Z)		6KG/3KG(按需订制) 6 kg/3 kg (customisable)
移动速度X&Y/Z Travel Speed (X, Y, Z)		X&YI轴：0.1~400mm/s Z轴：200mm/s X & Y axes: 0.1–400 mm/s; Z axis: 200 mm/s
马达系统 Motor System		伺服电机 Servo motors
操作模式 Operating Mode		连续线段 Continuous line
传动方式 Drive System		丝杆模组 Ball screw modules
输入电源 Power Supply		AC220V/50HZ
工作环境 Operating Environment		5-40℃
程序记录模式 Programme Storage Capacity		>1000组 >1000 sets
控制系统 Control System		专业点胶系统 Professional dispensing system
电器配件 Electrical Components		台湾明纬等 Meanswell (Taiwan) etc.
显示方式 Display		21寸显示器 21-inch monitor
驱动方式 Drive type		伺服驱动 Servo drive
机械重复精度 Mechanical repeatability		±0.02mm
输入气压 Input air pressure		0.1-0.7Mpa
设备功率 Power consumption		AC220V/50HZ 2KW
外形尺寸 Dimensions		L850*W700*H1300
重量 Weight		150KG
