Feature:

●No special fixtures or jigs are required (jigs may be required for certain products).

●No dedicated operator is required; once the product has been changed and the programme adjusted, no manual supervision is needed.

●Products can be positioned in any orientation; the system uses vision-based positioning and tracking for automatic coating. ◎ Highly scalable coating capabilities.

●Capable of drawing dots, straight lines, continuous lines, arcs and circles.

●The conveyor line utilises a stepper motor and gearbox drive system.

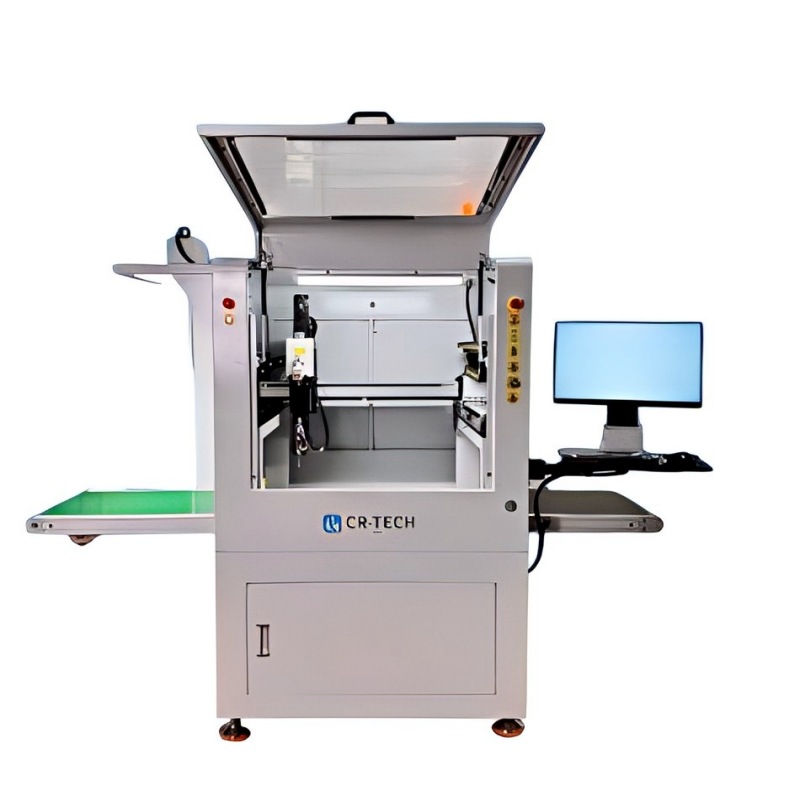

Image:

Specification:

技术参数 technical specification
外形尺寸 Overall dimensions		L-1000mm*W-1000mm*H-1650mm
重复精度 Repeatability accuracy		±0.02mm
轴数 Number of axes		5轴/独立控制 5-axis/Independent control
CCD视觉相机 CCD vision camera		1套，独立悬挂 One set, independently hung
相机识别范围 Camera recognition range		400*300mm
调节驱动方式 Adjust the driving mode		精密丝杆+精密滑轨 Precision lead screw + precision slide rail
控制方式 Control mode		工控机+显示器 Industrial control computer + monitor
工作环境温度 Working environment temperature		-20°C----+35°C
输入电源 Input power supply		AC220V 50--60HZ
龙门长度 Length of the gantry		400mm
涂覆范围 Coating range		L400*W300*H100mm
总功率 Total power		2KW
整机重量 Overall weight of the machine		450KG
最大速度 Maximum speed		1000mm/s
胶阀类型： Glue valve type		1把精密雾化阀A-603 1 Precision atomizing valve A-603
灵活性 Flexibility		5轴独立控制 5-axis independent control
适用线体		高度：750mm,皮带宽度：400mm Height: 750mm, belt width: 400mm
胶路清洗功能 Glue circuit cleaning function		设备自带清洗功能 The equipment is equipped with a built-in cleaning function
阀体清洗功能 Valve body cleaning function		设备自带浸泡，定时吐液功能 The equipment is equipped with built-in immersion and timed liquid discharge functions
