SMT Line Automatic NG/OK Double Track Buffer Machine
For SMT production line,PCB board automatic temporary storage,feeding.Mediation across the board its first in,frst out,ect.
PRODUCT DETAIL
Feature:
a)PLC Control System
b)Multi Alarm System
c)Hingh efficiency and reliable
d)Smooth and accurate actionfuncton function is not used,
without interrupting the production
e)Automatic storage of NG/OK panels and NG conversion
to OK function

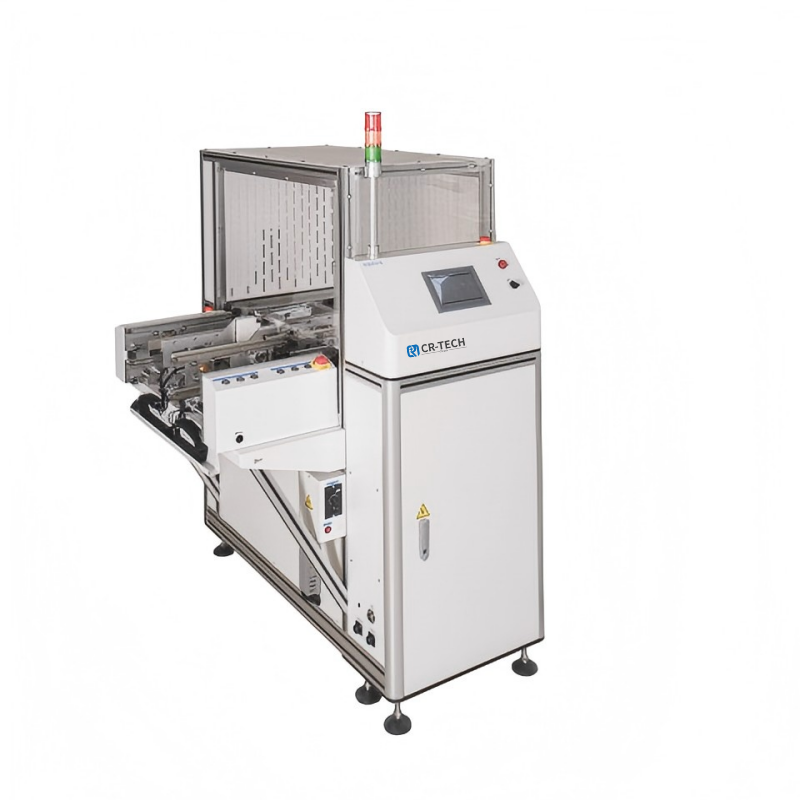

Image:
Specification:
| Model | 型号 | CR-280-1000-2NK |
| Overall Dimension | 机台尺寸 | (L)1000*(W)1420*(H)1660mm |
| Control System | 控制方式 | PLC |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*60-Max320*280mm |
| PCB Conveyor direction | 传输方向 | 左至右(流向指定) |
| Conveyor height | 传输高度 | 920±30mm |
| Pitch Selection | 层数/层间距 | 20层/30mm |
| Power supply | 电源 | 220V 50HZ |
| Weight | 机台重量 | about350KG |
| Power comsumption | 功率 | 1.3KW |
| Air source | 气源 | 0.4-0.6MPa |
| Front conveyor | 前接驳 | 双层前接驳 |
| Functional principles | 功能原理 | 自动识别、存储NG/OK板，具有NG转OK的功能 |
| Track mode | 定轨模式 | 1轨定轨，2、3、4轨动轨，1、4轨最大间距686mm,单轨调宽280mm |
