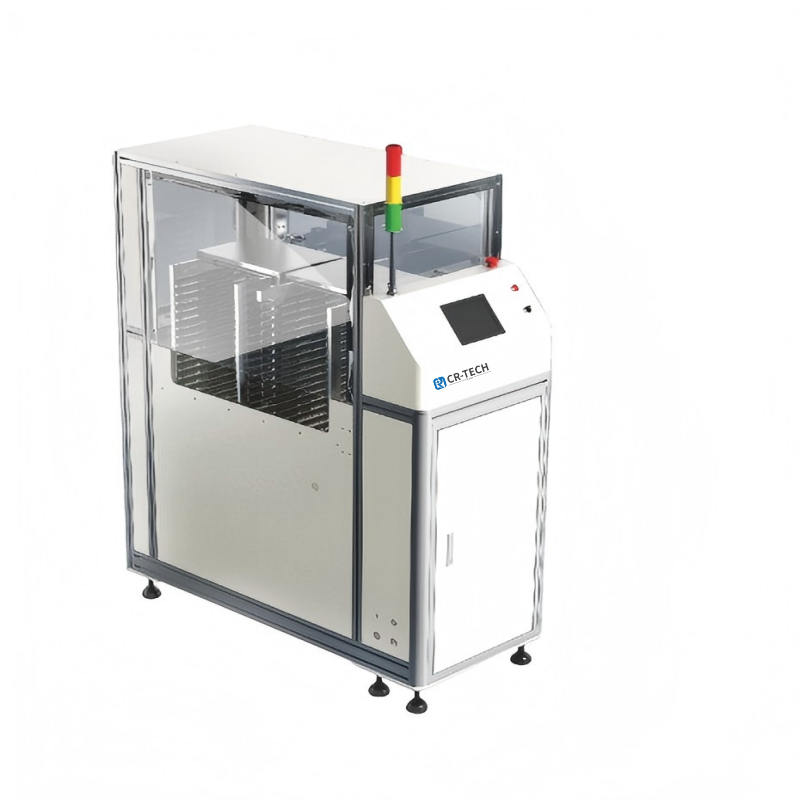

SMT Line Automatic Double Track Buffer Machine
For SMT producation line,PCB board automatictemporary storage,feeding.Mediation across theboard,ts first in,first out,etc.
PRODUCT DETAIL
Feature:
a)PLC Control System
b)Mui Alarm System
c)High eficiency and reliable
d)Smooth and accurate actionfunction function is not
used,without interrupting the production.
Image:
Specification:
| Model | 型号 | CR-280 |
| Overall Dimension | 机台尺寸 | (L)600*(W)1420*(H)1670mm |
| Control System | 控制方式 | PLC |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*60-Max500*280mm |
| PCB Conveyor Direction | 传输方向 | 左至右(流向可设定) |
| Conveyor Height | 传输高度 | 920±30mm |
| Pitch Selections | 步距选择 | 20mm、30mm |
| Power supply | 电源 | 220V 50HZ |
| Weight | 重量 | about320KG |
| Power Consumption | 功率 | 2.3KW |
| Air supply | 气源 | 0.4~0.6MPa |
| front conveyor | 前接驳 | 选配前接驳 |
| Height of bottom part | 底部零件高度 | ≤17mm |
