SMT Line Automatic NG/OK Buffer Machine
For SMT producation line,PCB board automatictemporary storage,feeding.Mediation across theboard,its first in,first out,etc..
PRODUCT DETAIL
Feature:
a)PLC Control System
b)Multi Alarm System
c)High efficiency and rellable
d)Smooth and accurate actionfunction function is not
used,without interrupting the production.

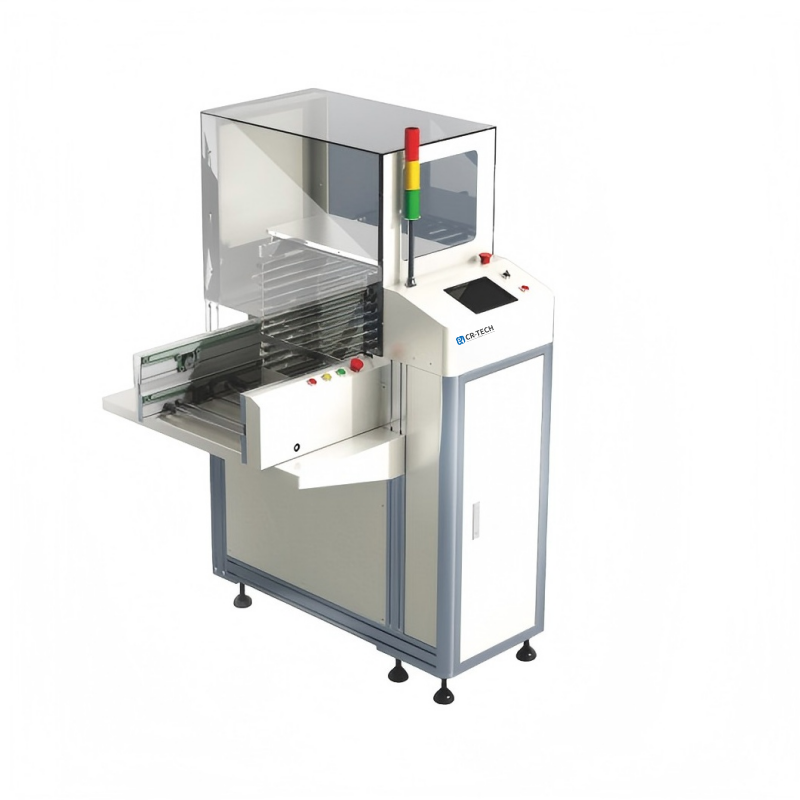

Image:
Specification:
| Model | 型号 | CR-1200-2NK |
| Overall Dimension | 机台尺寸 | (L)1200*(W)1100*(H)1700mm |
| Control System | 控制方式 | PLC |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max520*460mm |
| PCB Conveyor Direction | 传输方向 | 左至右(流向可设定) |
| Conveyor Height | 传输高度 | 920±30mm |
| Pitch Selections | 步距选择 | 20mm、30mm |
| Power supply | 电源 | 220V 50HZ |
| Weight | 重量 | about300KG |
| Power Consumption | 功率 | 1.3KW |
| Air supply | 气源 | 0.4~0.6MPa |
| front conveyor | 前接驳 | 标配前接驳 |
|
前接驳功能：下层进入产品，上层出NG品，具备确认NG,NG转OK,NG清除等功能。 Front connection function:the lower layer enters the product,the upper ayer produces NG products,with functions such as confirming NG,NG to OK, and NG removal. |
||
