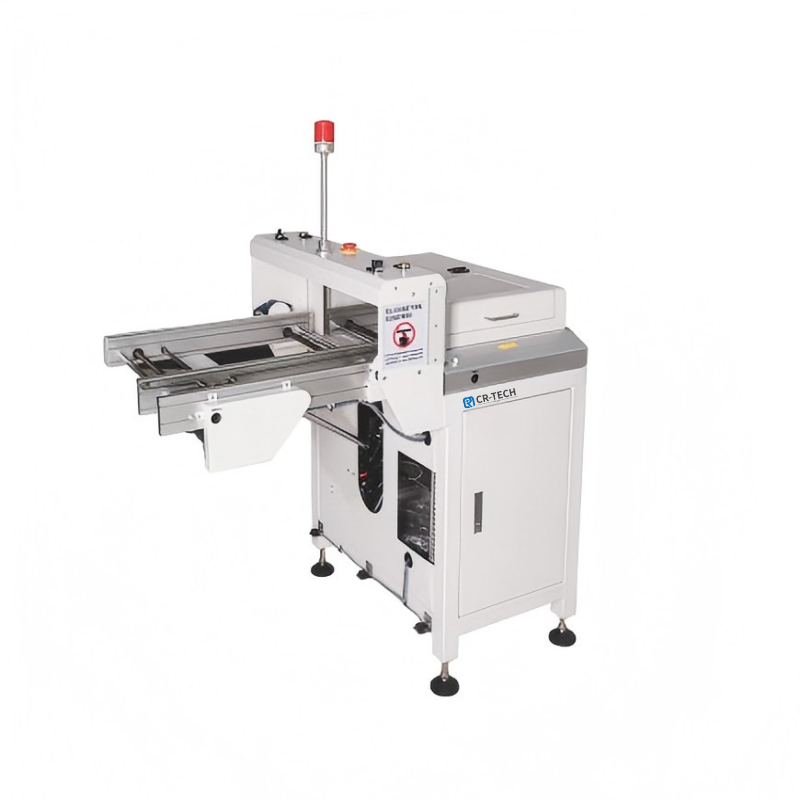

SMT Line Automatic Gateway conveyor Machine
It is a specdficallyconveyor,but It's reversible segmentcan turn up or down,to allows persons or cars acrosstrafic a long SMT productionline,
PRODUCT DETAIL
Feature:
a)PLC Contro System
b)Made of steel frame,stable and reliable
c)Both fp down and auto flio can be selected.
d)Turning and reset buttons are equipped at either
side to convenient operation
e)It may act as a common conveyorif the turning
funclion is not used,without interrupling the
production.
Image:
Specification:
| Model | 型号 | CR-1200 | CR-1200-G |
| Overall Dimension | 机台尺寸 | (L)1200*(W)770*(H)1130mm | (L)1200*(W)975*(H)1130mm |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max450*500mm | Min80*50-Max450*300mm |
| PCB Conveyor Direction | 传输方向 | 左至右(流向指定) | 左至右(流向指定) |
| Track Height | 传送高度 | 920±30mm | 920±30mm |
| Lenght of the fixed segment | 固定段长度 | 500mm | 500mm |
| Lenght of the reversible segment | 翻转段长度 | 700mm | 700mm |
| Soace of the aisle | 过道空间 | 500mm | 500mm |
| Turnover time | 翻转时间 | 6S | 6S |
| Power supply | 电源 | AC22050/60HZ | AC22050/60HZ |
| Power Consumption | 功率 | 0.2KW | 0.4KW |
| Air supply | 气源 | 0.4-0.6MPa | 0.4-0.6MPa |
| Weight | 重量 | 180KG | 230KG |
| Maximum payload | 最大载重 | 3.0KG Max | 3.0KG Max |
| Guide Mode | 导轨模式 | 单轨 | 双轨 |
