Feature:

1:Applications: Industry Applications:

The equipment is widely applicable across multiple sectors, including sensors, relays, power adapters, electronic toys, electronic components, household appliances, electric vehicle controllers, computer and digital products, coil products, button-type products, battery box speaker outer ring dispensing and bonding, optical semiconductors, mobile phone batteries, pen-type packaging, casing bonding, optical component processing, and hardware parts encapsulation with adhesive coating.

2. Main Functions:

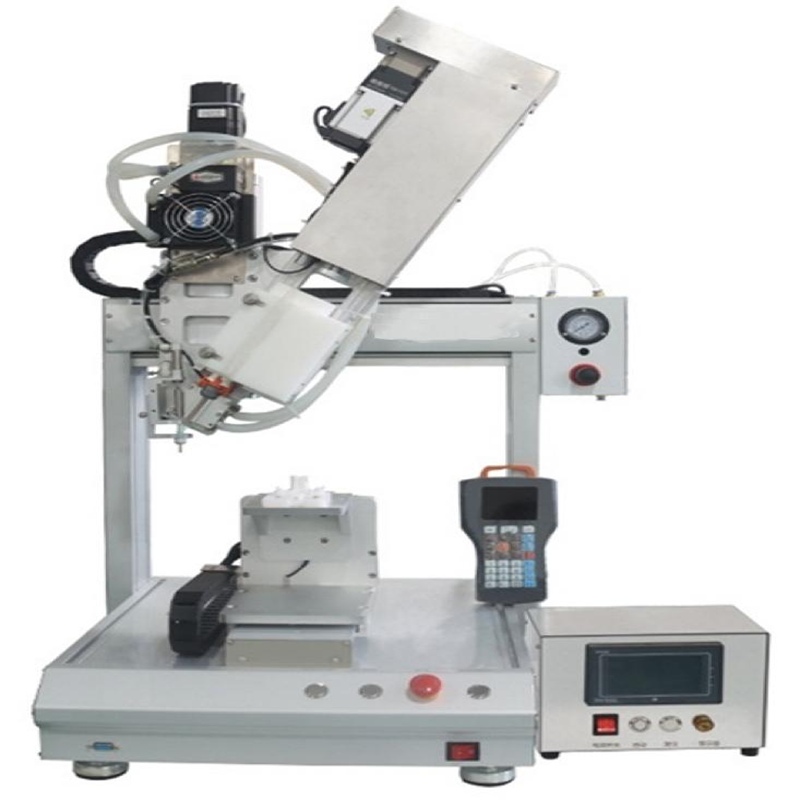

The AB dual-liquid servo dispensing and bonding machine is primarily designed for continuous, uninterrupted dispensing of adhesives, inks, coatings, fillers, drops, dots, lines, arcs, and circular curves in manufacturing processes. It enables seamless dispensing along any 3D non-planar trajectory paths.

Image:

Specification:

型号Model	CR-Tech 810D
机器尺寸Outline size	550mm*500mm*700mm(L*W*H)
有效行程Effective travel	400mm*400mm*100mm(X*Y*Z)
出胶频率Glue dispensing frequency	10秒/次 10 seconds per time
定位精度Position accuracy	±0.02mm
控制系统Control system	单片机+手持控制盒Single-chip microcomputer + handheld control box
点胶阀dispensing valve	伺服螺杆推胶点胶头Servo screw glue pushing and dispensing head
编程方式Programm method	示教+图形导入Teaching demonstration + graphic import
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.5MPa
程序储存量Memory size	100组，400点/组 400 groups, 400 points per group
通讯口COM	USB
总功率Power	0.5KW
