Feature:

1:Applications: Industrial Applications:

The equipment is widely applicable across multiple sectors, including sensors, relays, power adapters, electronic toys, electronic components, household appliances, electric vehicle controllers, computer and digital products, coil products, button-type products, battery box and speaker outer ring dispensing, speaker encapsulation and dispensing, optical semiconductors, mobile phone batteries, pen-type products, casing bonding, optical component processing, and hardware parts encapsulation with adhesive coating.

2. Key Functions:

The AB dual-liquid servo dispensing machine is primarily designed for continuous, uninterrupted dispensing of adhesives, inks, coatings, fillers, drops, dots, lines, arcs, and circular patterns along irregular curved paths in manufacturing processes, enabling seamless dispensing along any 3D non-planar trajectory.

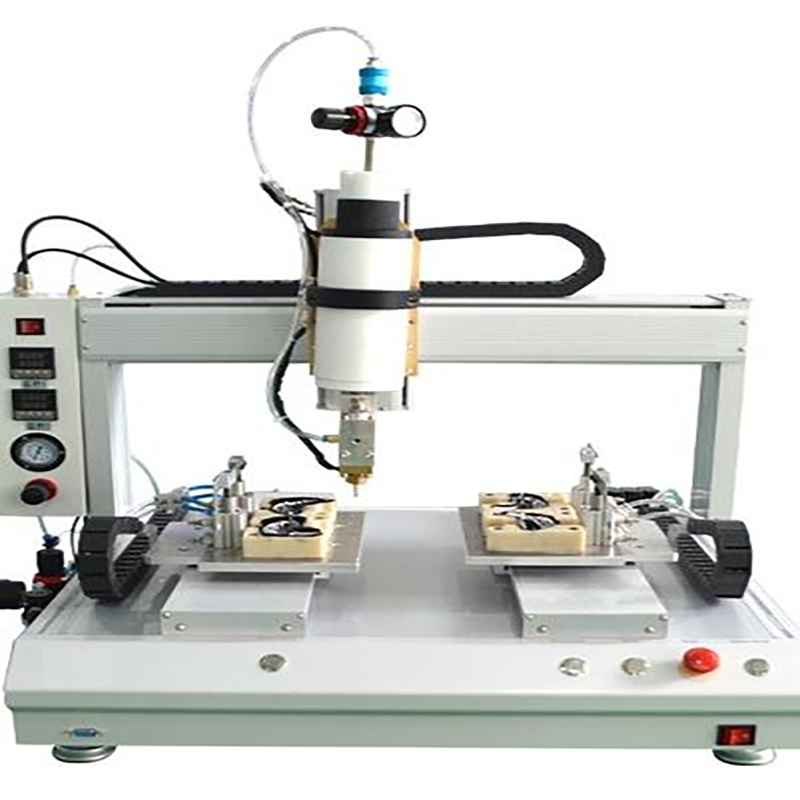

Image:

Specification:

型号Model	CR-Tech 820D
机器尺寸Outline size	720mm*620mm*700mm(L*W*H)
有效行程Effective travel	300mm*300mm*100mm(X*Y*Z)
运动轴Motion axis	4轴4axle
定位精度Position accuracy	±0.02mm
控制系统Control system	单片机+手持控制盒Single-chip microcomputer + handheld control box
点胶阀dispensing valve	自制加热头300ML Self-made heating head 300ML
编程方式Programm method	示教+图形导入Teaching demonstration + graphic import
输入电压Power supply	220V/50Hz
输入气压Air pressure	0.4-0.5MPa
程序储存量Memory size	100组，400点/组 400 groups, 400 points per group
通讯口COM	USB
总功率Power	0.5KW
