Wholesalae LED Automatic Pick And Place Machine CR ZT8
PRODUCT DETAIL
Feature:
1:8 groups of independent rotating mounting heads.
2:Additional marble platform, high-speed mounting is more stable and more precise.
3:The double motor electronic feeder is equipped with a vacuum pump without external gas source.
4:1500mm platform, PCB plate within 700mm can achieve circular production without shutting down.
5:8 sets of digital flight visual recognition cameras can be installed toreduce the error caused by feeding.
6:Suitable for: module, solar tube, soft lamp belt, outdoor lamp, power supply, ceiling lamp, flat lamp backlight, etc.

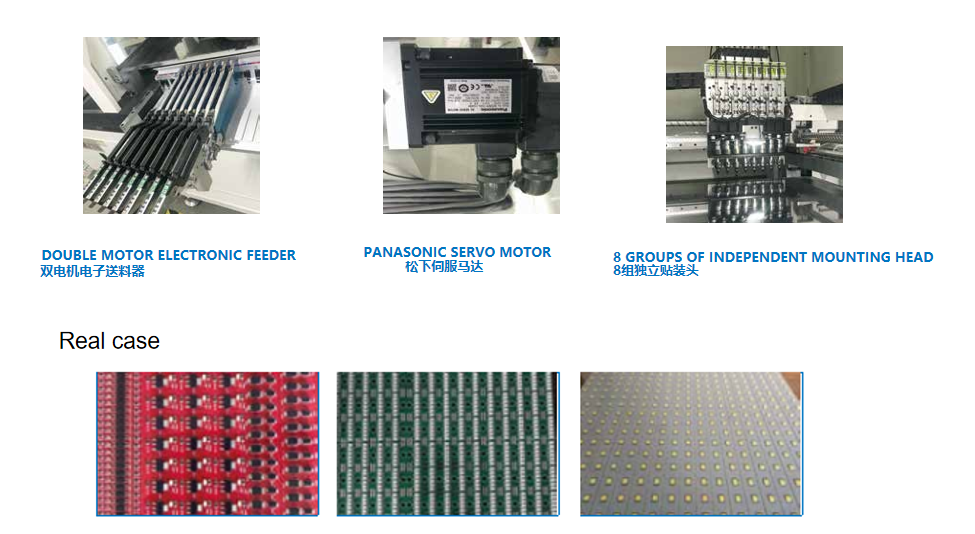

Image:
Specification:
|
Product name
产品名称
|
CR-ZT8(eight head patch machine)
CR-ZT8(八头贴片机)
|
|
Conventional patch speed
常规贴片速度
|
38000-55000 chips/h
38000-55000 chips/h
|
|
Best patch speed
最佳贴片速度
|
67000 chips/h(group taking group)
67000 chips/h(群取群贴)
|
|
Maximum patch area
最大贴片面积
|
1500mm*420mm
1500mm*420mm
|
|
Feed quantity
喂料器数量
|
The 8mm-24mm standard feeder can be placed in 18(Extensible station)
可放置8mm-24mm标准喂料器18个(可扩展站位)
|
|
Machine weight
机器重量
|
1650kg
1650kg
|
|
supply voltage
电源电压
|
AC220V 50HZ(operating power about 2 KW/H)
AC220V 50HZ(运行功率约2 KW/H)
|
|
Mechanical precision
机械精度
|
±0.01mm
±0.01mm
|
|
operating system
操作系统
|
WINDOWS XP/WINDOWS 7
WINDOWS XP/WINDOWS 7
|
|
Positioning mode
定位方式
|
Visual automatic MARK point(extensible flight vision correction camera)
视觉自动MARK点(可扩展飞行视觉校正相机)
|
|
Programming mode
编程方式
|
Visual camera positioning programming,Excel format file import components
视觉相机定位编程，Excel格式文件导入元件
|
|
Shape size
外形尺寸
|
Long 2000mm*wide 1200mm*high 1500mm
长2000mm*宽1200mm*高1500mm
|
|
Plaster device
可贴装元器件
|
More than 0603 lamp resistance capacitance chip terminals and so on
0603以上灯珠电阻电容芯片端子等等
|
