Wholesalae LED Automatic Pick And Place Machine CR ZT10V
PRODUCT DETAIL
Feature:
1:Specializing in copper wire lace lamp, sun tube, soft light module and other products.

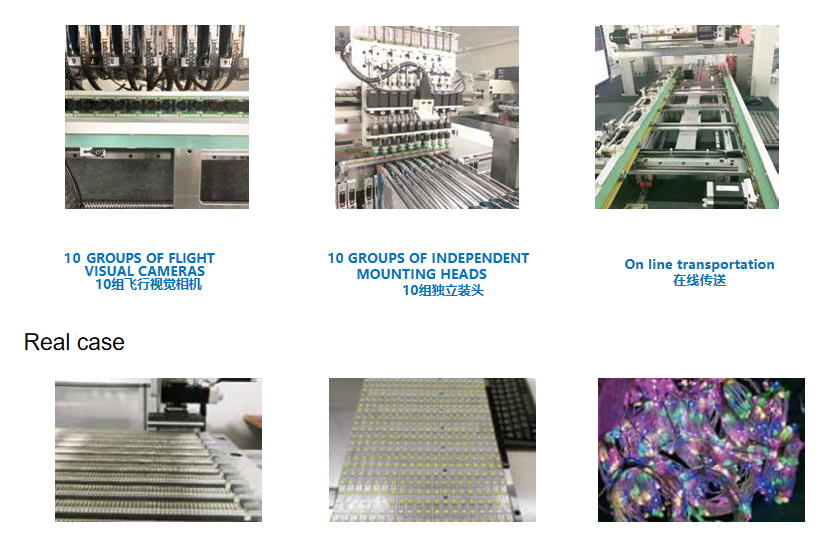

2:The 10 sets of independent rotating head mounted with digital flight visual recognition camera, and component correction is zero stop.
3:On line automatic transmission of PCB board is more efficient andlabor cost is lower.
4:Regular patch speed: 45000-55000chips/h.
5:Best patch speed: 80000 chips/h.
Image:
Specification:
|
Product name
产品名称
|
CR-ZT10V(ten head patch machine)
CR-ZT10V(十头贴片机)
|
|
Conventional patch speed
常规贴片速度
|
43000-55000 chips/h
43000-55000 chips/h
|
|
Best patch speed
最佳贴片速度
|
80000 chips/h(group taking group)
80000 chips/h(群取群贴)
|
|
Maximum patch area
最大贴片面积
|
1500mm*400mm/1500mm*460mm
1500mm*400mm/1500mm*460mm
|
|
Baseplate transmission mode
基板传送方式
|
Platform/track Online
平台式/轨道在线式
|
|
Feed quantity
喂料器数量
|
The 8mm-24mm standard feeder can be placed in 20(Extensible station)
可放置8mm-24mm标准喂料器20个(可扩展站位)
|
|
compressed air
压缩空气
|
0.55Mpa
0.55Mpa
|
|
Machine weight
机器重量
|
1700kg
1700kg
|
|
supply voltage
电源电压
|
AC220V50HZ(running power about 2.5KW/H)
AC220V 50HZ(运行功率约2.5KW/H)
|
|
Mechanical precision
机械精度
|
±0.01mm
±0.01mm
|
|
operating system
操作系统
|
WINDOWS XP/WINDOWS 7
WINDOWS XP/WINDOWS 7
|
|
Positioning mode
定位方式
|
Visual automatic MARK point
视觉自动MARK点
|
|
Programming mode
编程方式
|
Visual camera positioning programming,Excel format file import components
视觉相机定位编程， Excel格式文件导入元件
|
|
Shape size
外形尺寸
|
Long 2000mm*wide 1200mm*high 1500mm
长2000mm*宽1200mm*高1500mm
|
|
Plaster device
可贴装元器件
|
More than 0603 bulb capacitor chip terminals and so on
0603以上灯珠电容芯片端子等等
|
