Pick and Place Machine
Wholesalae LED Automatic Pick And Place Machine CR ZT8T
PRODUCT DETAIL
Feature:

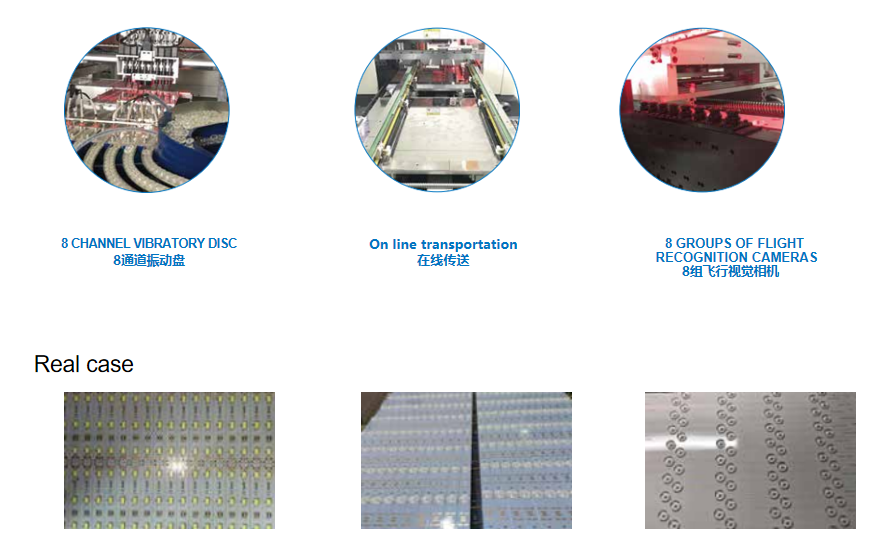

1:The LED element Lens lens dual purpose machine can be compatible with mounting LED electronic components and multiple lenses.
2:The 8 sets of independent rotating head mounted with digital flight visual recognition camera, and component correction is zero stop.
3:On line automatic transmission of PCB board is more efficient and laborcost is lower.
4:The two group of 4 channel vibration disc is suitable for 5mm-30mm universal lens.
5:Conventional lens mounting speed: 8000-20000 chips/h.
Image:
Specificaion:
|
Conventional LED element patch speed
常规LED元件贴片速度
|
38000-47000 chips/h
38000-47000 chips/h
|
|
Maximum patch area
最大贴片面积
|
1200mm*400mm
1200mm*400mm
|
|
Baseplate transmission mode
基板传送方式
|
Platform/track Online
平台式/轨道在线式
|
|
Feed quantity
喂料器数量
|
4channel vibration disctwo,or8mm-24mm standard feeder 18(Extensible station)
4通道振动盘两个，或8mm-24mm标准喂料器18个(可扩展站位)
|
|
compressed air
压缩空气
|
0.5Mpa
0.5Mpa
|
|
Machine weight
机器重量
|
1700kg
1700kg
|
|
supply voltage
电源电压
|
AC220V 50HZ (operating power about 2 KW/H)
AC220V 50HZ(运行功率约2 KW/H)
|
|
Mechanical precision
机械精度
|
±0.01mm
±0.01mm
|
|
operating system
操作系统
|
WINDOWS XP/WINDOWS 7
WINDOWS XP/WINDOWS 7
|
|
Positioning mode
定位方式
|
Visual automatic MARK point (standard flight vision element calibration camera)
视觉自动MARK点(标配飞行视觉元件校正相机)
|
|
Programming mode
编程方式
|
Visual camera positioning programming,Excel format file import components
视觉相机定位编程， Excel格式文件导入元件
|
|
Shape size
外形尺寸
|
Long 2000mm*wide 1200mm*high 1500mm
长2000mm*宽1200mm*高1500mm
|
|
Plaster device
可贴装元器件
|
Lens lens/more than 0603 bulbs,resistors,capacitors,chip terminals,etc.
Lens透镜/0603以上灯珠电阻电容芯片端子等等
|
