SMT Line Automatic Vacuum Loader Machine
At the start end of aSMT line,for the need of nextmachine,the loader loads bare PCBs on to the line pieceby piece from a stack of PCBs
PRODUCT DETAIL
Feature:
a)Suitable for BARE PCBs
b)High efficiency and rliable
c)Passthrough function
d)Flexible Vacuum Pad
e)Adjustable pick point
f)PLC Control System

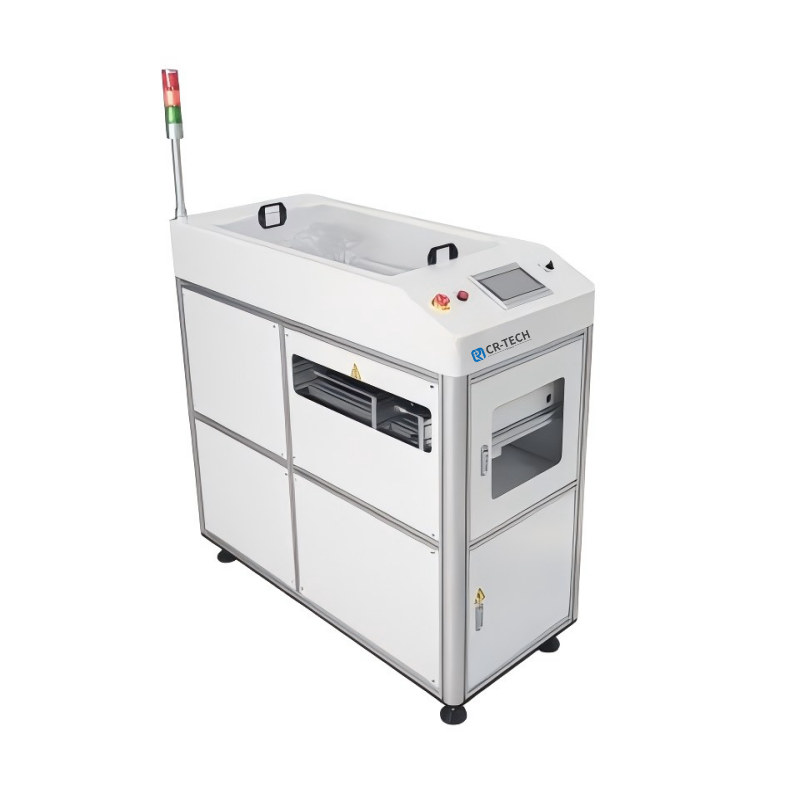

Image:
Specification:
| Model | 型号 | CR-460 |
| Overall Dimension | 机台尺寸 | (L)600*(W)1350*(H)1250mm |
| Control System | 控制方式 | PLC |
| Track width | 传送宽度 | Min50-Max500mm |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max500*500mm |
| PCB Conveyor Direction | 传输方向 | 左至右 |
| Conveyor Height | 传输高度 | 920±30mm |
| Length of Track | 轨道长度 | 600mm |
| Cycle | 循环周期 | 16S |
| Num of store PCB | 最大贮板数量 | 200pcs(每片裸板1mm厚) |
| Power supply | 电源 | AC22050/60HZ |
| Power Consumption | 功率 | 0.1KW |
| Air supply | 气源 | 0.4-0.6MPa |
| Weight | 重量 | about200KG |
