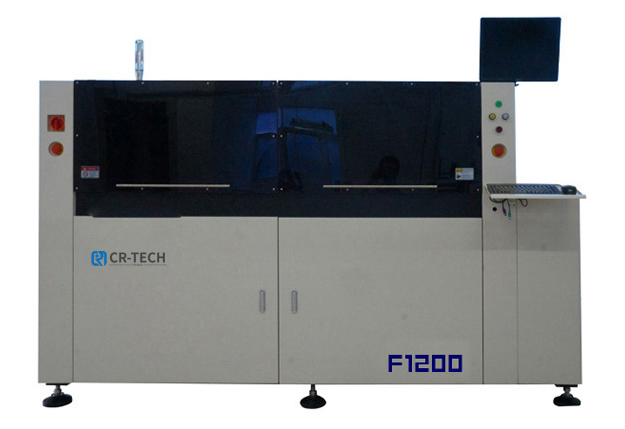

Image:

Specificaiton:

F1200™ Parameters
PCB parameters
Max board size	1200mm x 500mm
Min board size	80mm x 50mm
PCB thickness	0.8mm~6mm
Warpage	Max. PCB diagonal 1%
Max board weight	12Kg
Board edge spacing	configuration to 3.5mm
Max bottom spacing	20mm
Transmission speed	1200mm/s(Max)
Transmission height to the land	900±40mm
Transmission direction	Left-Right, Right-Left, Left-Left, Right-Right
Transmission method	One-stage transmission rail
PCB pick-up method	Software can change the elastic lateral pressure+ Bottom integral suction cavity vacuum(Optional: multipoint on the bottom or partial vacuum or whole vacuum).
Board supporting method	Magnetic thimble, contour blocks, special workpiece fixture
Printing parameters
Printing head	Linear motor type close loop printing head
Template frame size	737mm x 370mm（737 left/right placed）~1800 mm x 737 mm
Max printing area	1200mm x 500mm
Scraper type	Stencil scraper/rubber scraper(angle 45°/55°/60° select according to the printing technology)
Printing mode	Single or two scrapers printing
Demoulding length	0.02 mm to 12 mm
Printing speed	0 mm/s to 200 mm/s
Printing pressure	0.5kg to 10Kg
Printing movement	±650 mm (from the center)
Image parameters
Field of view(FOV)	10.24mm x 6.4mm
Table adjustable area	X±20.0mm,Y±15.0mm θ:±2.0°
Reference point type	Standard reference point(see SMEMA standard),bonding pad/hole
Camera system	Individual camera, Up/down individual imaging visual system, geometric matching positioning
Performance parameters
Imaging alignment repeated accuracy	±15.0μ(±0.0005") @6 σ，Cpk≥2.0
Printing repeated accuracy	±30μ(±0.001") @6 σ，Cpk ≥ 2.0
Cycle time	Less than 15s (Cycle Time/Exclude printing&Cleaning)
Replace line time	Less than 10mins
Equipment
Power	AC220V±10%,50/60HZ,15A
Compressed air	4~6Kg/cm2, 10.0 tube
Operation system	Windows XP
Equipment size	2455mm(L) x 1400mm(W) x 1520mm(H)( Do not include the screen and tri-color light height)
Equipment weight	About 1780kg
