Feature:

CR-tech Full Auto Stencil Printer F600

1. The PCB is fed into the machine of the automatic solder paste printing machine along the conveyor belt through the automatic board loading machine

2. The automatic solder paste printer finds the main edge of the PCB and locates it
3. Move the Z-frame up to the position of the vacuum plate
4. Add vacuum to fix the PCB in a special position
5. The visual axis (printer camera) slowly moves to the first target of the PCB
6. The camera of the printing machine looks for the mark point (reference point) under the corresponding steel mesh
7. The machine moves the printed stencil to align it with the PCB, the machine can make the stencil move in the X, Y axis directions and in the spindle direction
8. The stencil and the PCB are aligned, the Z-frame will move up, and the PCB touches the lower part of the stencil
9. Once moved in place, the scraper will push the solder paste to roll on the stencil and print on the PAD (pad) position of the PCB through the holes in the stencil
10. When the printing is completed, the Z-frame moves down to separate the PCB from the steel mesh
11. The automatic solder paste printing machine sends the PCB to the next process
12. Fully automatic solder paste printing machine then receives the next PCB to be printed
13. Do the same process for the next PCB, just use the second squeegee to print in the opposite direction.

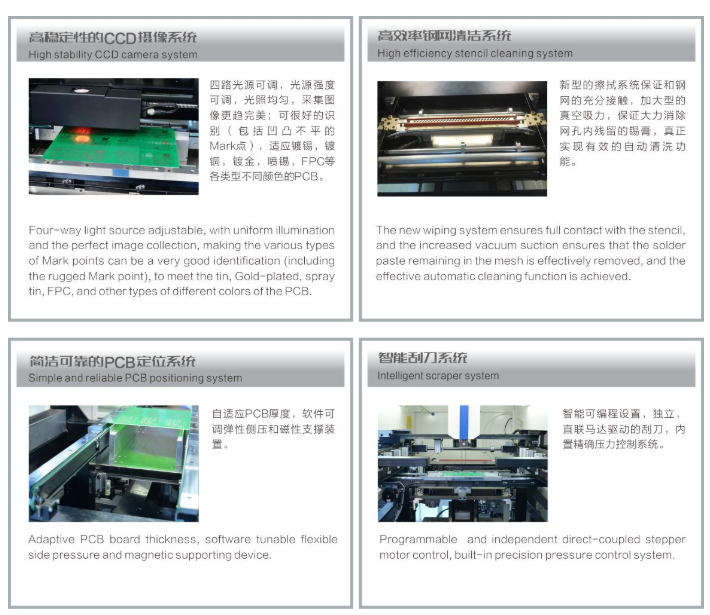

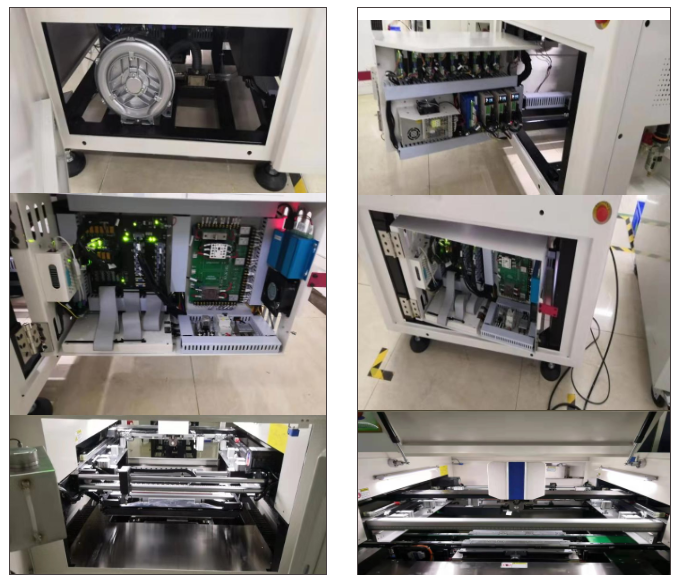

Image:

Sepcification:

F600+™ Parameters
PCB parameters
Max board size	650mm x 340mm
Min board size	50mm x 50mm
PCB thickness	0.4mm~6mm
Warpage	Max. PCB diagonal 1%
Max board weight	6Kg
Board edge spacing	configuration to 3mm
Max bottom spacing	20mm
Transmission speed	1500mm/s(Max)
Transmission height to the land	900±40mm
Transmission direction	Left-Right, Right-Left, Left-Left, Right-Right
Transmission method	One-stage transmission rail
PCB pick-up method	Software can change the elastic lateral pressure(Optional: multipoint on the bottom or partial vacuum or whole vacuum).
Board supporting method	Magnetic thimble, contour blocks, special workpiece fixture
Printing parameters
Printing head	Two independent straight league motor drives
Template frame size	650mm x 400mm~850mm x 750 mm
Scraper type	Stencil scraper/rubber scraper(angle 45°/55°/60° select according to the printing technology)
Printing mode	Single or two scrapers printing
Demoulding length	0.02 mm to 12 mm
Printing speed	6 mm/s to 200 mm/s
Printing pressure	0.5kg to 10Kg
Printing movement	±250 mm (from the center)
Image parameters
Field of view(FOV)	6.4mm x 4.8mm
Table adjustable area	X,Y:±7.0mm θ:±2.0°
Reference point type	Standard reference point(see SMEMA standard),bonding pad/hole
Camera system	Individual camera, Up/down individual imaging visual system, geometric matching positioning
Performance parameters
Imaging alignment repeated accuracy	±12.5μ(±0.0005") @6 σ，Cpk≥2.0
Printing repeated accuracy	±25μ(±0.001") @6 σ，Cpk ≥ 2.0
Cycle time	Less than 7.5s
Replace line time	Less than 5mins
Equipment
Power	AC220V±10%,50/60HZ,15A
Compressed air	4~6Kg/cm2, 10.0 tube
Operation system	Windows XP
Equipment size	1330mm(L) x 1400mm(W) x 1480mm(H)( Do not include the screen and tri-color light height)
Equipment weight	About 1100kg
