Feature:

Simple and reliable structure, accurate positioning and easy to adjust, the T5 can quickly achieve different thickness of the PCB board PIN height adjustment of the automatic adjustment. The spray nozzle makes the cleaning liquid evenly sprinkled on the wiping paper, and the arc-shaped rubber wipe board is soft, antiwear and antirust, clean thoroughly bidirectionally. It's easy to adjust the length of the common paper from 250mm to 520mm, and can be used for dry cleaning, wet wiping, wet cleaning, reciprocating cleaning and other functions.

Arch bridge gantry type scraper beam, programmable suspension type scraper head, precision screw automatically lifts and lowers the scraper pressure.

The system has three cleaning methods: dry cleaning, wet cleaning and vacuum cleaning, which can be used in any combination.

Using uniform ring light and high-brightness coaxial light, equipped with adjustable brightness function, so that various types of MARK points can be well identified, suitable for tinning, copper plating, gold plating, tin spraying, FPC and other types of different colors PCB.

Reliable structure, convenient adjustment, with three-axis linkage automatic correction function.

It adopts windows xp operation interface and has good man-machine dialogue function. The program file has teaching and navigation functions, and the operation interface has: operation log/fault record/fault self-diagnosis/light alarm function, simple operation.

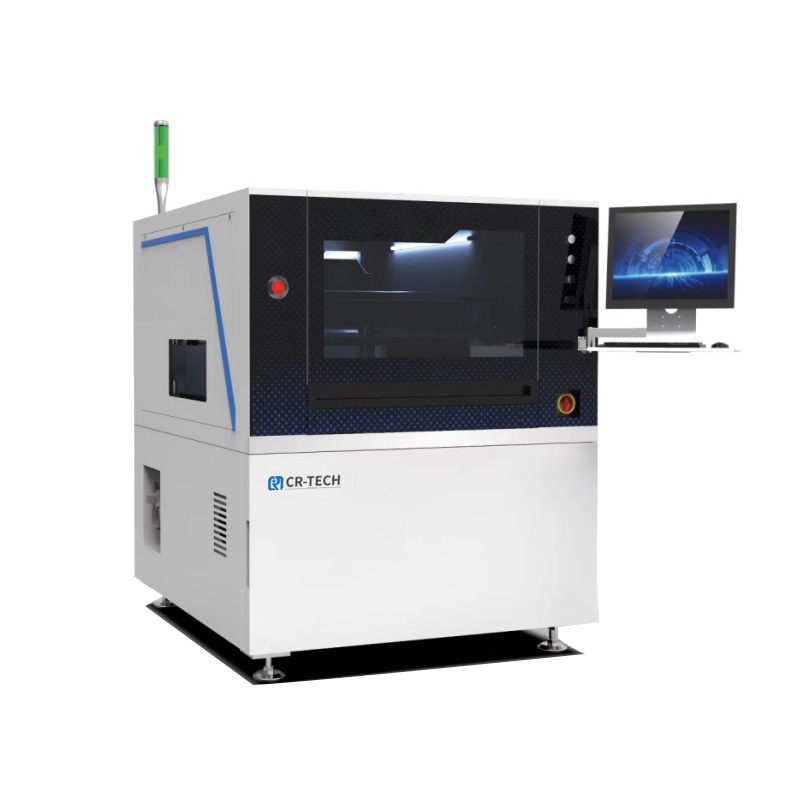

Image:

Specification:

Category	Project	Spec
Operation page	Operation system	Windows 7
	Signal connection	SMEMA
Visual system	Visual parameters	Up and down double vision, high performance CCD and image processing system
Printing accuracy	Repeat printing accuracy	±0.01mm
	Printing accuracy	±0.025mm
Cycle time	Printing cycle	<8s/pc (not include printing, cleaning time)
PCB parameter	Stencil size	370*370mm~737*737mm
	Frame fixed	Cylinder
	PCB size	50*50mm~520*340mm
	PCB thickness	0.4~6mm
	PCB weight	≤3kg
	Support method	Magnetic thimble, magnetic ejector pin, manual crimping
	Delivery system	One-stage delivery system
	Transmission direction	L-R/R-L/L-L/R-R (software control)
	UVW platform adjustment range	Not lower than X:±3.5mm; Y:±6.5mm; e:±2°
Platform/transfer parameters	PCB transmission height	900±20mm
	Platform adjustment angle	Z:±2°
	Squeegee speed	10-180mm/s adjustable
Printing parameters	Blade pressure	0.5～10Kg
	Release speed	0～20mm/s adjustable
	Scraper angle	Standard type 60°
	Scrubbing method	Dry/Wet/VacuumFree combination of three modes
Machine system	Software	Lifetime free maintenance and lifelong free software upgrades in time
	Air supply	4~6Kgf/cm2
	Main power supply	AC:220V±10%, 50/60HZ, 2.5KW
Machine size	L1200*W1320*H1519mm
